Danfoss 6KP31BS192

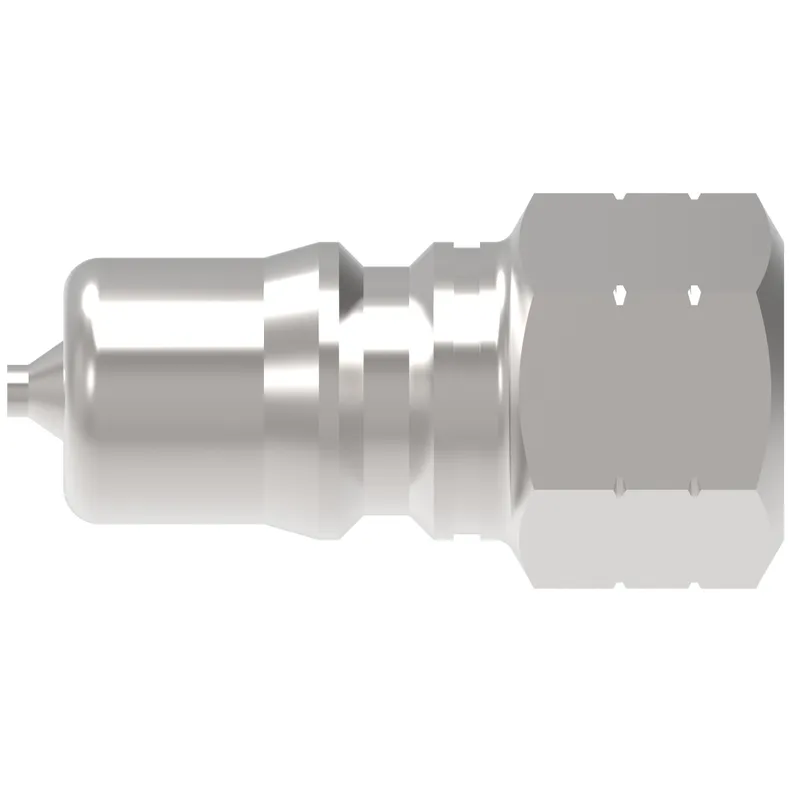

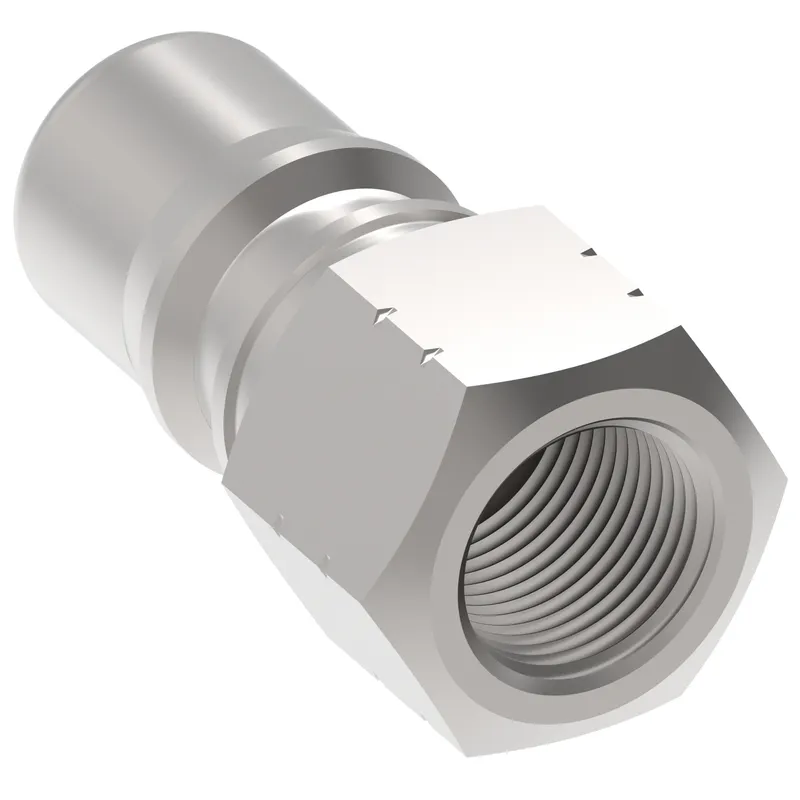

COUPLING,HK,M,3/4,CS,-12BSP,EPDM

MPN: 6KP31BS192
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 6KP31BS192?

Danfoss COUPLING,HK,M,3/4,CS,-12BSP,EPDM, manufacturer part number 6KP31BS192. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146104694
Air inclusion max cc	11.50
Air inclusion max in3	0.70
Angle shape	Straight
Application	Aerospace, Agriculture, Chemical, Construction, Consumer products, Fluid transfer, Food and beverage, General industry, Hvac, Hydraulics, Law enforcement/rescue, Medical, Military, Oil and gas, Transportation, Trucks
Body size	3/4
Certifications	ISO 7241-1 Series B
Connection style	Manual connect
End size 1	-12
End size 2	-12
End type 1	Male push to connect
End type 2	Female BSPP swivel
Finish plating	Zinc
Flow rate GPM	26.00
Flow rate LPM	98.42
Fluid compatibility	Hydraulic fluid
Fluid loss cc	9.30000
Fluid loss in3	0.56800
Hex size 1 IN	1.310
Hex size 1 MM	33.274
Item type	Male half
Latch type	Push/pull
Product material	Carbon steel
Safety locking mechanism	None
Seal material	Ethylene propylene (EPDM)
Thread size 1	G 3/4
Thread size 2	G 3/4
Valve type	2 way
Working pressure max psi	4000
Working pressure max BAR	276
Working temperature max C	149
Working temperature max F	300
Working temperature min C	-54
Working temperature min F	-65

6KP31BS192: frequently asked questions

When can 6KP31BS192 be shipped?

6KP31BS192 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6KP31BS192 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6KP31BS192 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6KP31BS192, subject to availability and destination.
