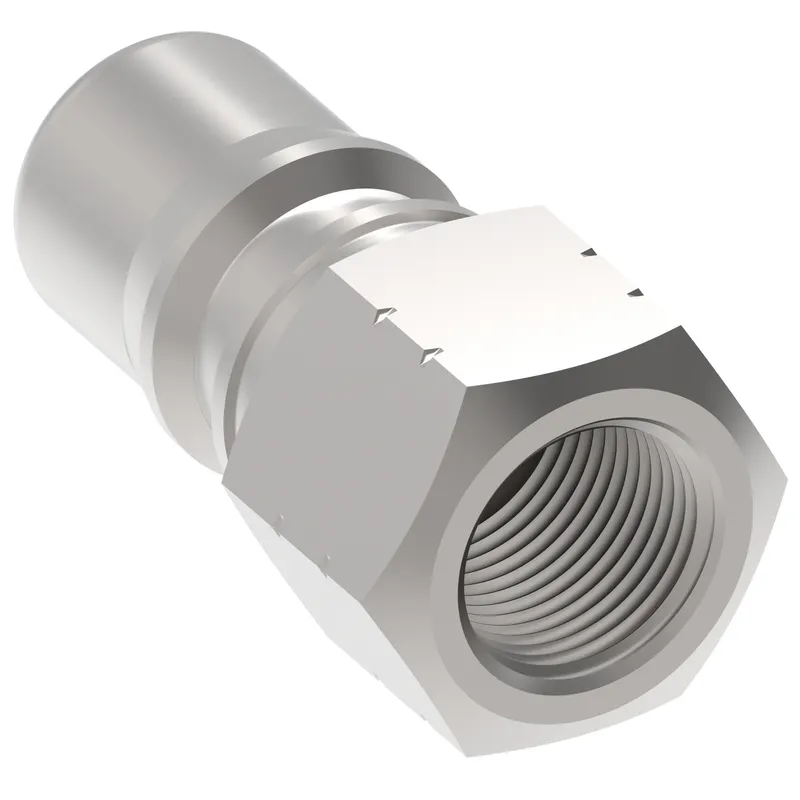

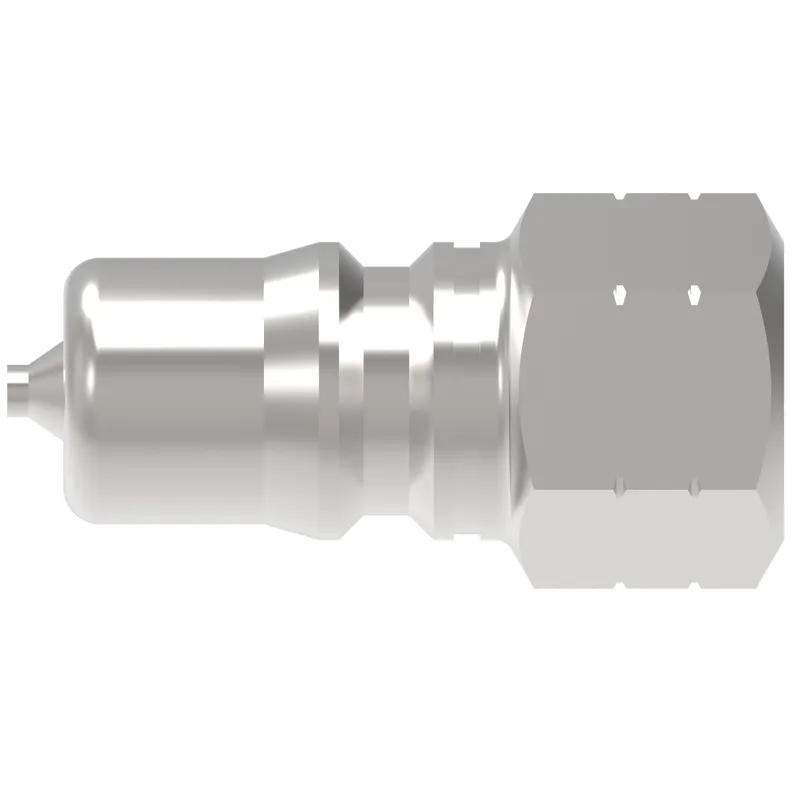

Danfoss 6KP31118

COUPLING,HK,M,3/4,CS,-12NPTF,CR

MPN: 6KP31118
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 6KP31118?

Danfoss COUPLING,HK,M,3/4,CS,-12NPTF,CR, manufacturer part number 6KP31118. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146104632
Air inclusion max cc	11.50
Air inclusion max in3	0.70
Angle shape	Straight
Application	Aerospace, Agriculture, Chemical, Construction, Consumer products, Fluid transfer, Food and beverage, General industry, Hvac, Hydraulics, Law enforcement/rescue, Medical, Military, Oil and gas, Transportation, Trucks
Body size	3/4
Certifications	ISO 7241-1 Series B
Connection style	Manual connect
End size 1	-12
End size 2	-12
End type 1	Male push to connect
End type 2	Female pipe (NPTF)
Finish plating	Zinc
Flow rate GPM	26.00
Flow rate LPM	98.42
Fluid compatibility	Hydraulic fluid
Fluid loss cc	9.30000
Fluid loss in3	0.56800
Hex size 1 IN	1.310
Hex size 1 MM	33.274
Item type	Male half
Latch type	Push/pull
Product material	Carbon steel
Safety locking mechanism	None
Seal material	Neoprene
Thread size 1	3/4-14 NPTF
Valve type	2 way
Working pressure max psi	4000
Working pressure max BAR	276
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-54
Working temperature min F	-65
