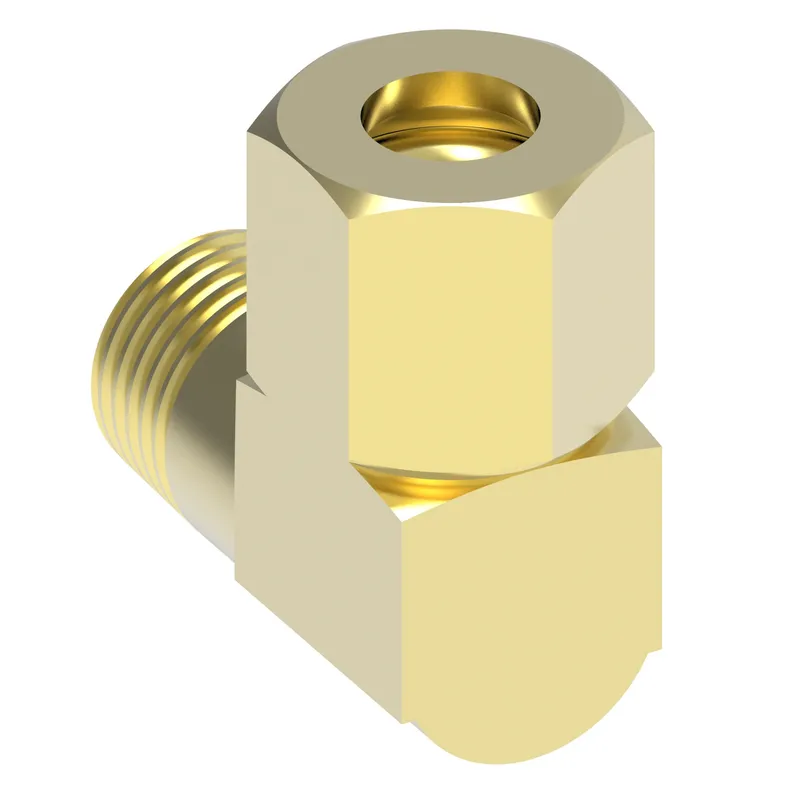

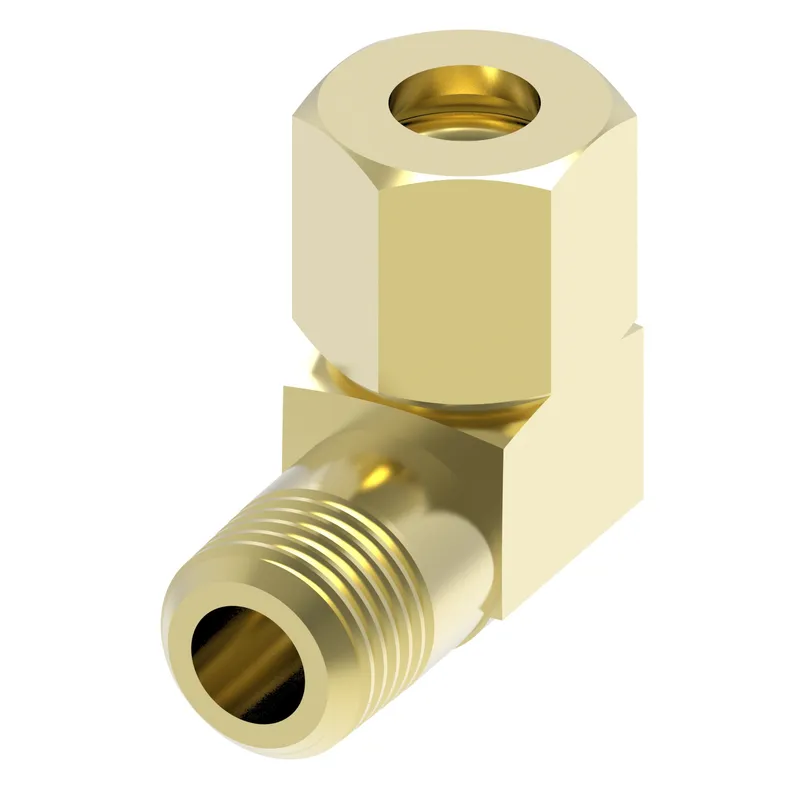

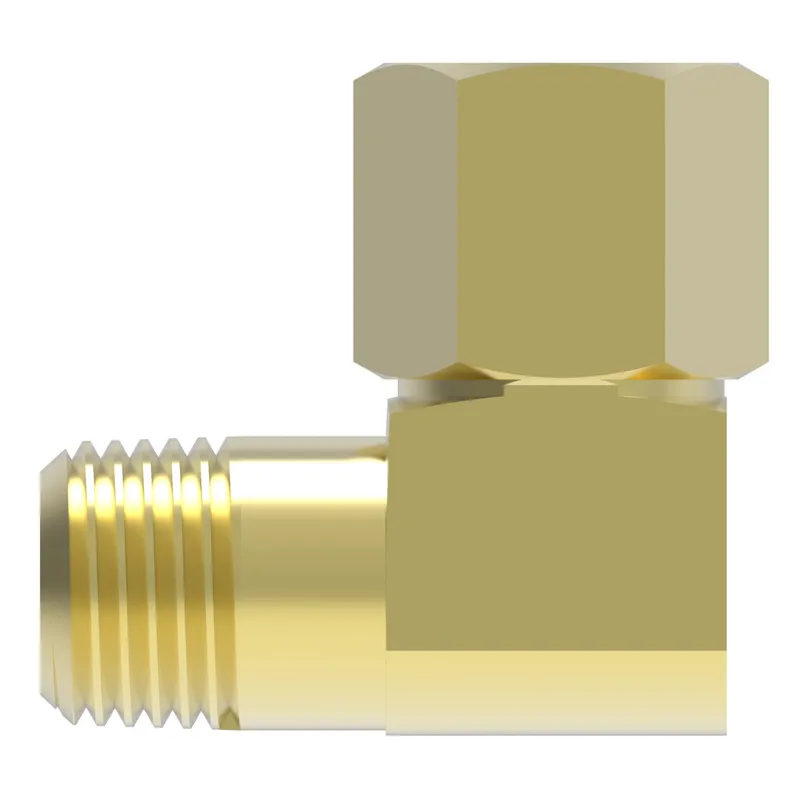

ADPT COMP 90D BRASS ASSY WITH SEALANT

Name: ADPT COMP 90D BRASS ASSY WITH SEALANT
Brand: Danfoss (Drives)
SKU: 69X4Z

MPN: 69X4Z · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Adapters and swivel joints
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 69X4Z be shipped?

69X4Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 69X4Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 69X4Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 69X4Z, subject to availability and destination.

Danfoss ADPT COMP 90D BRASS ASSY WITH SEALANT, manufacturer part number 69X4Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	725975717301
Angle shape	90 Degree
Brand	Danfoss
Drop dimension IN	0.730
Drop dimension MM	18.50
End Type 1	Male pipe (NPTF)
End Type 2	Line/hose/tube
Hex size 1 IN	0.480
Hex size 1 MM	12.200
Hex size 2 IN	0.500
Hex size 2 MM	12.700
Item type	Adapter-elbow
Product material	Brass
Thread sealant	No
Tube outside diameter 1 IN	0.220
Tube outside diameter 1 MM	5.6
Tube outside diameter 2 IN	0.260
Tube outside diameter 2 MM	6.6
Working pressure bar	345.0
Working pressure psi	5000
Working temp max C	121
Working temp max F	250
Working temp min C	-54
Working temp min F	-65
