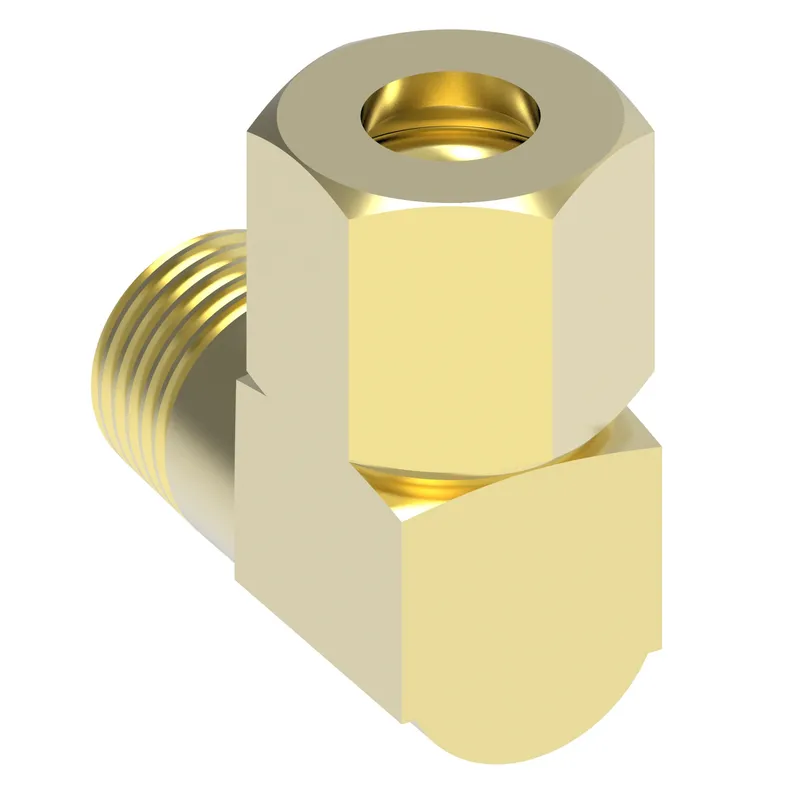

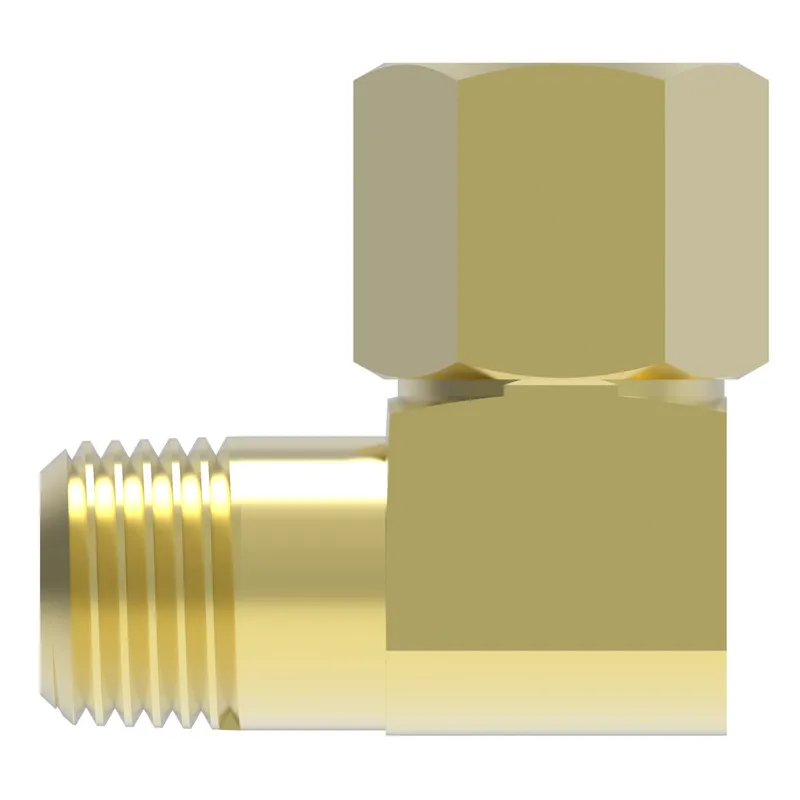

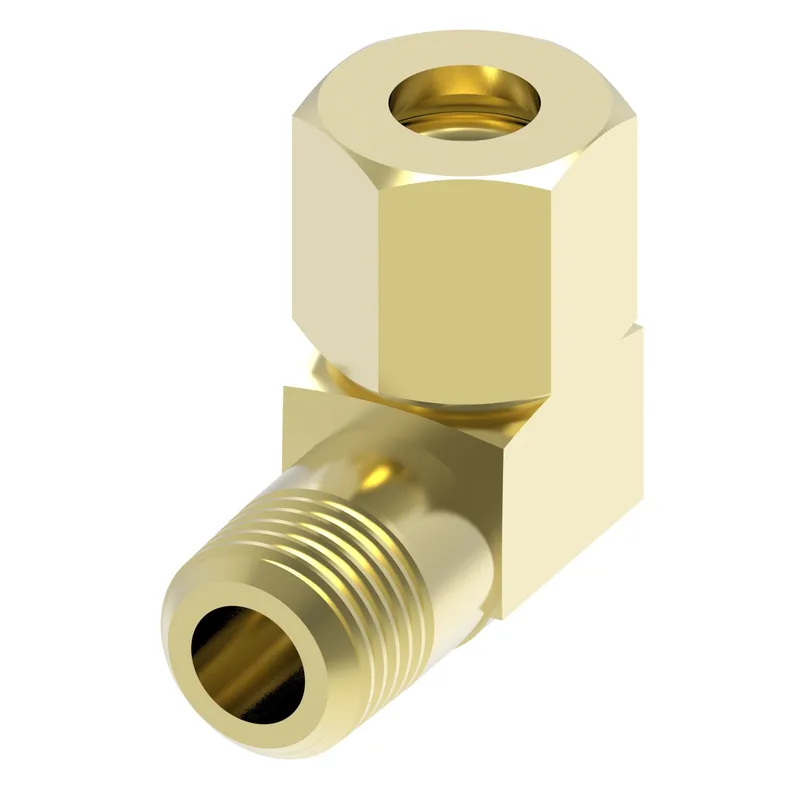

Danfoss 69X2X1

ADPT COMP 90D BRASS ASSY -2T X 1/16MP

MPN: 69X2X1
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 69X2X1?

Danfoss ADPT COMP 90D BRASS ASSY -2T X 1/16MP, manufacturer part number 69X2X1. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	725975755631
Angle shape	90 Degree
Brand	Danfoss
Drop dimension IN	0.660
Drop dimension MM	16.80
End Type 1	Male pipe (NPTF)
End Type 2	Line/hose/tube
Hex size 1 IN	0.350
Hex size 1 MM	8.900
Hex size 2 IN	0.380
Hex size 2 MM	9.700
Item type	Adapter-elbow
Product material	Brass
Thread sealant	No
Tube outside diameter 1 IN	0.130
Tube outside diameter 1 MM	3.3
Tube outside diameter 2 IN	0.130
Tube outside diameter 2 MM	3.3
Working pressure bar	345.0
Working pressure psi	5000
Working temp max C	121
Working temp max F	250
Working temp min C	-54
Working temp min F	-65
