Danfoss 694414

DGMFN 3 X A2W B2W 41, DGMFN3XA2WB2W41

MPN: 694414
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Danfoss 694414?

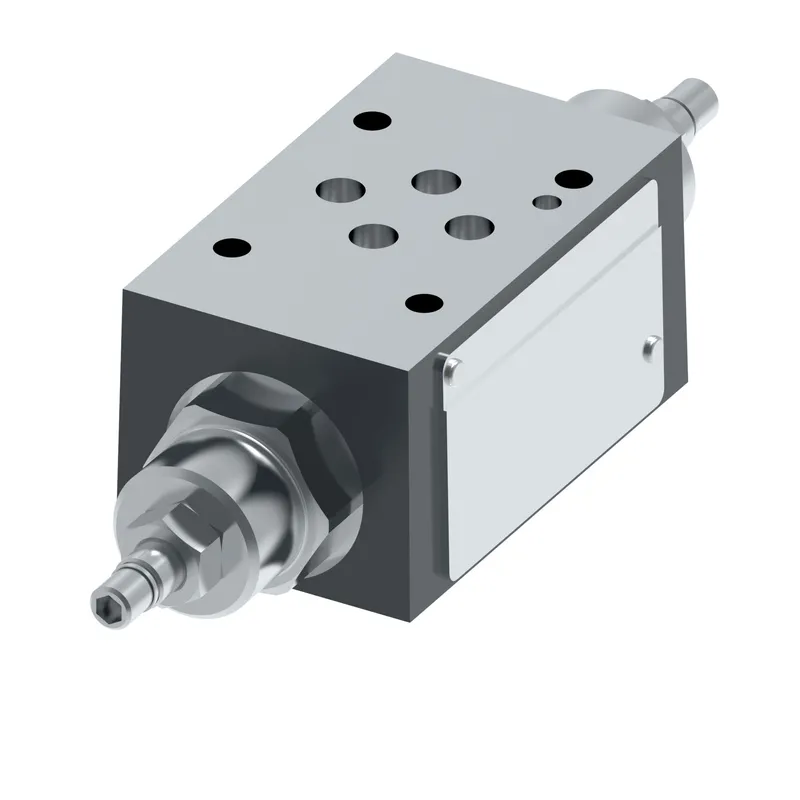

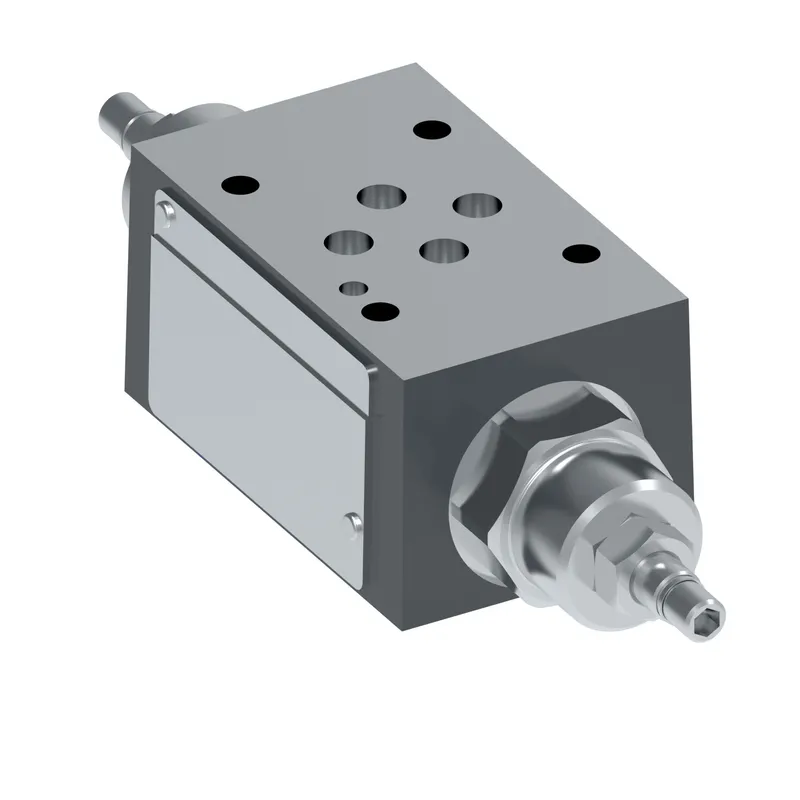

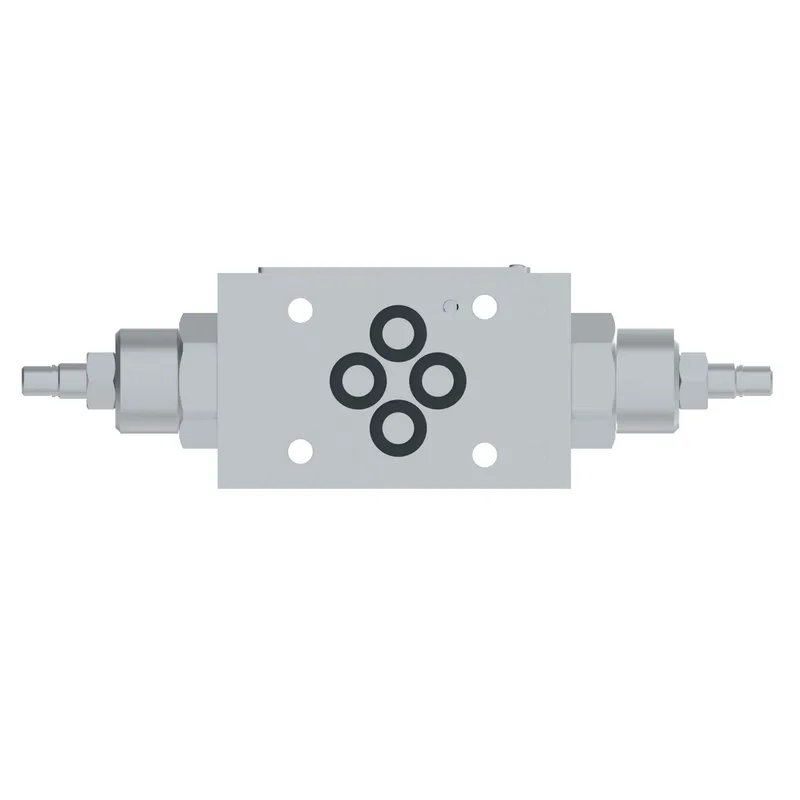

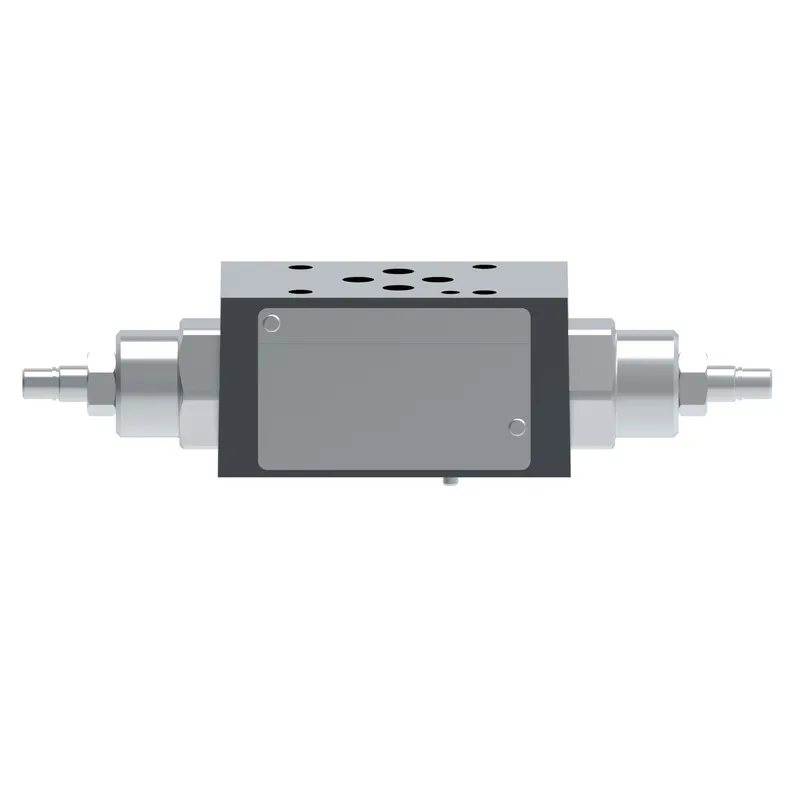

Danfoss DGMFN 3 X A2W B2W 41, DGMFN3XA2WB2W41, manufacturer part number 694414. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pressure operated
Adjustment type	Screw and locknut
Brand	Vickers by Danfoss
Control type 1	Standard control
Control type 2	Standard control
Design Series	41 Series
Direction of flow	Meter-in control
Flow rate upto LPM	60
Flow rate upto USGPM	16.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Interface	ISO4401-03
Location control function 1	Line A
Location control function 2	Line B
Maximum pressure upto bar	315
Maximum pressure upto psi	4500
Model Code 1	DGMFN3XA2WB2W41
Performance	Standard
Product height in	1.570
Product height mm	39.878
Product length in	6.600
Product length mm	167.640
Product width in	1.870
Product width mm	47.498
Proposition 65	Cancer and Reproductive Harm
Seal type	Viton
Special features	None
Valve Mount Type	Subplate/manifold mounted
Valve type	Flow control valve
Working temp max C	80
Working temp max F	176
Working temp min C	-20
Working temp min F	-4
