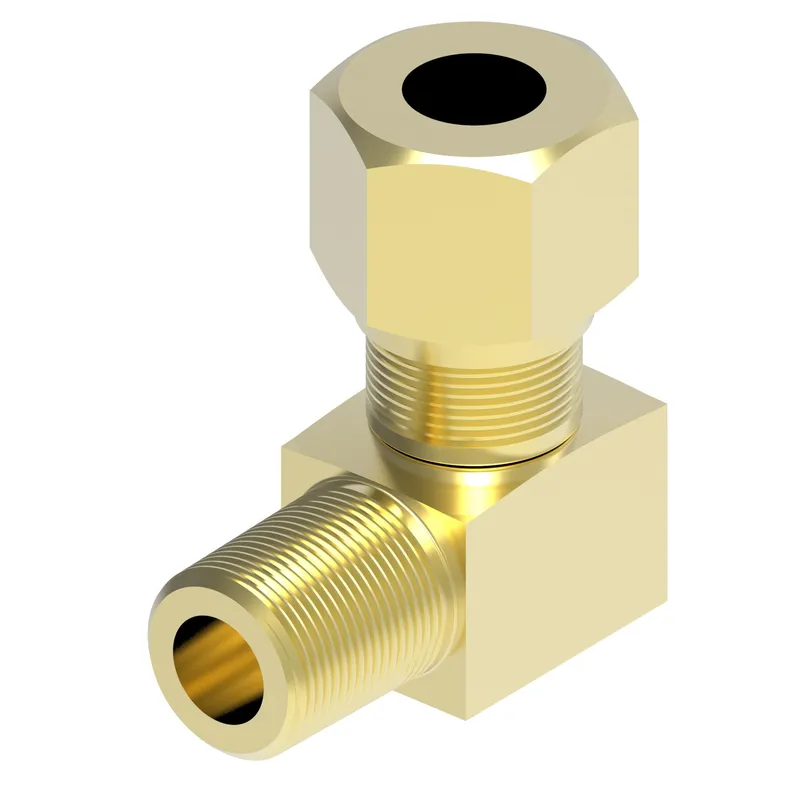

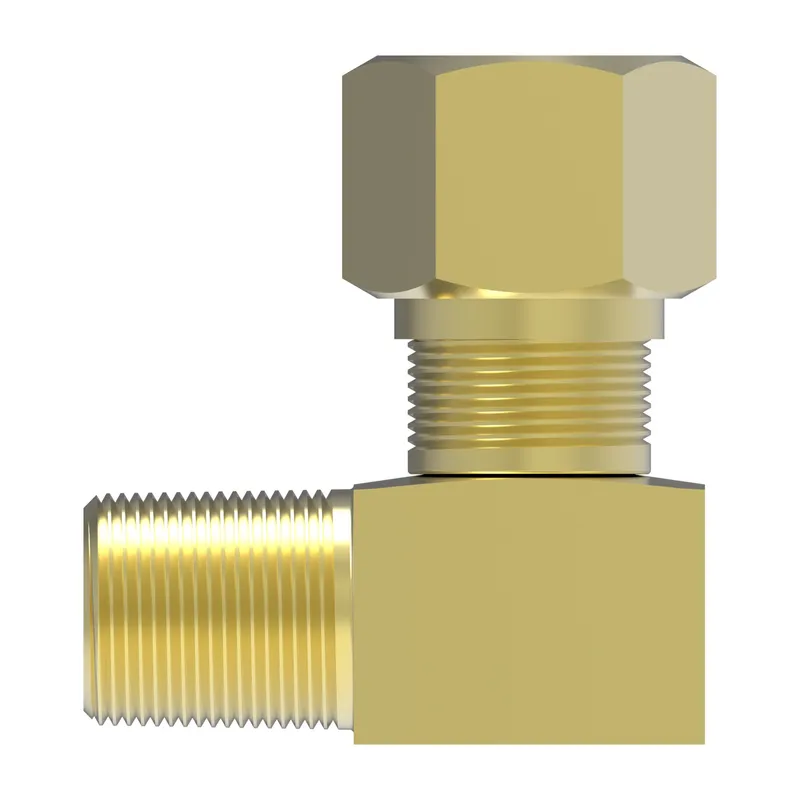

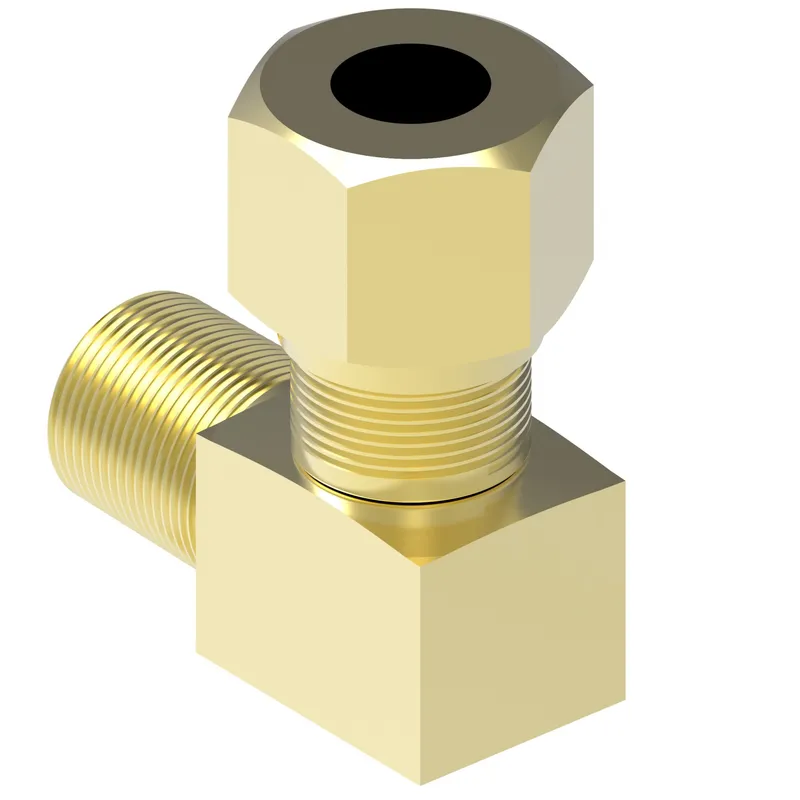

Danfoss 691X5

Adapter Selfalign Brass 102-40005-02 90

MPN: 691X5
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 691X5?

Danfoss Adapter Selfalign Brass 102-40005-02 90, manufacturer part number 691X5. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	725975767511
Angle shape	90 Degree
Brand	Danfoss
Drop dimension IN	0.740
Drop dimension MM	18.80
End Type 1	Male pipe (NPTF)
End Type 2	Line/hose/tube
Hex size 1 IN	0.580
Hex size 1 MM	14.700
Hex size 2 IN	0.560
Hex size 2 MM	14.200
Item type	Adapter-elbow
Product material	Brass
Thread sealant	No
Tube outside diameter 1 IN	0.230
Tube outside diameter 1 MM	5.8
Tube outside diameter 2 IN	0.320
Tube outside diameter 2 MM	8.1
Working pressure bar	138.0
Working pressure psi	2000
Working temp max C	121
Working temp max F	250
Working temp min C	-54
Working temp min F	-65
