What is the Danfoss 688727?

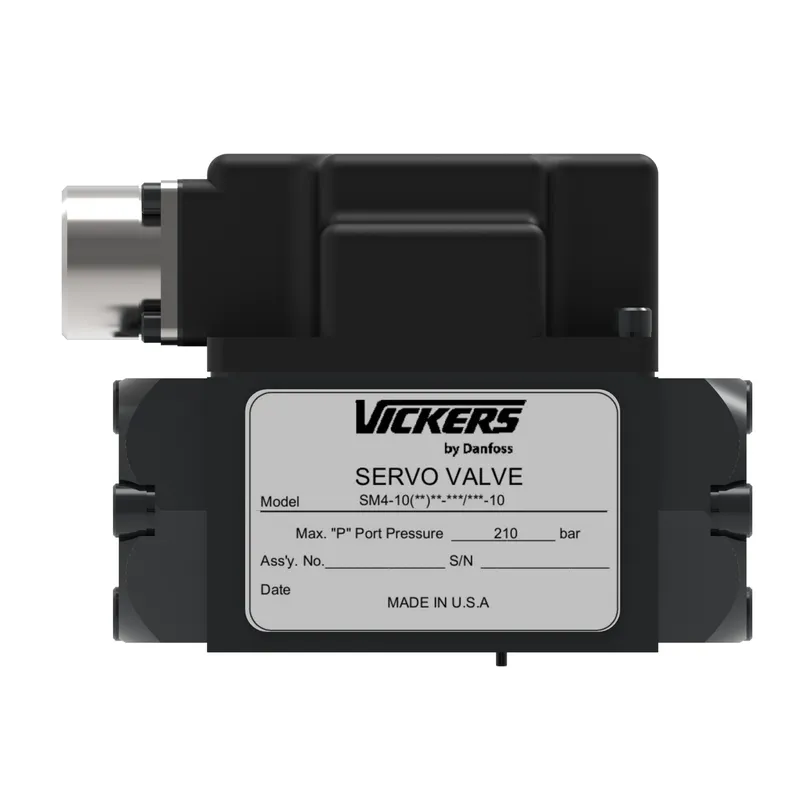

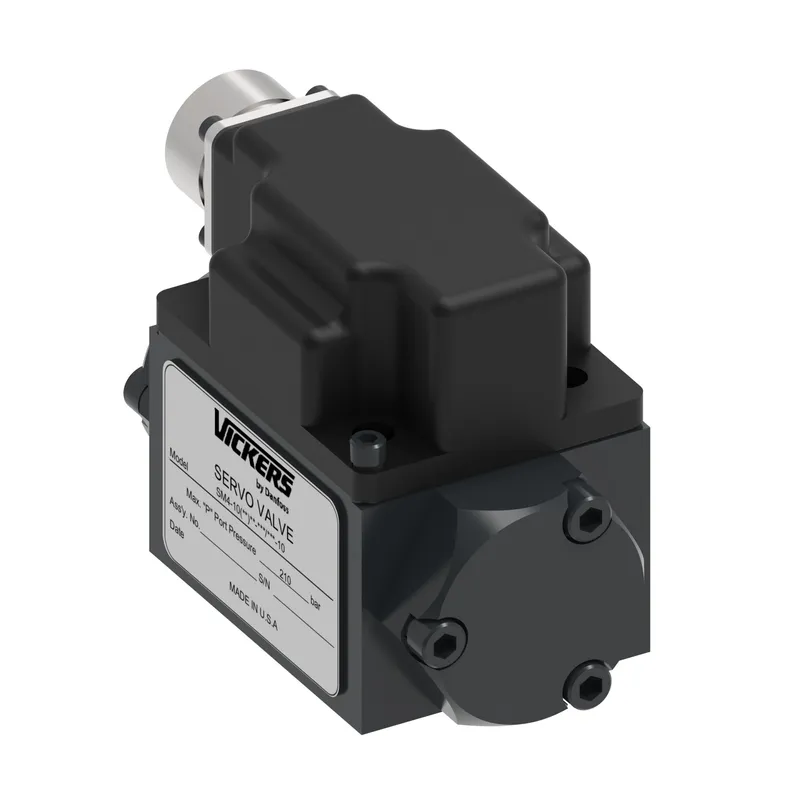

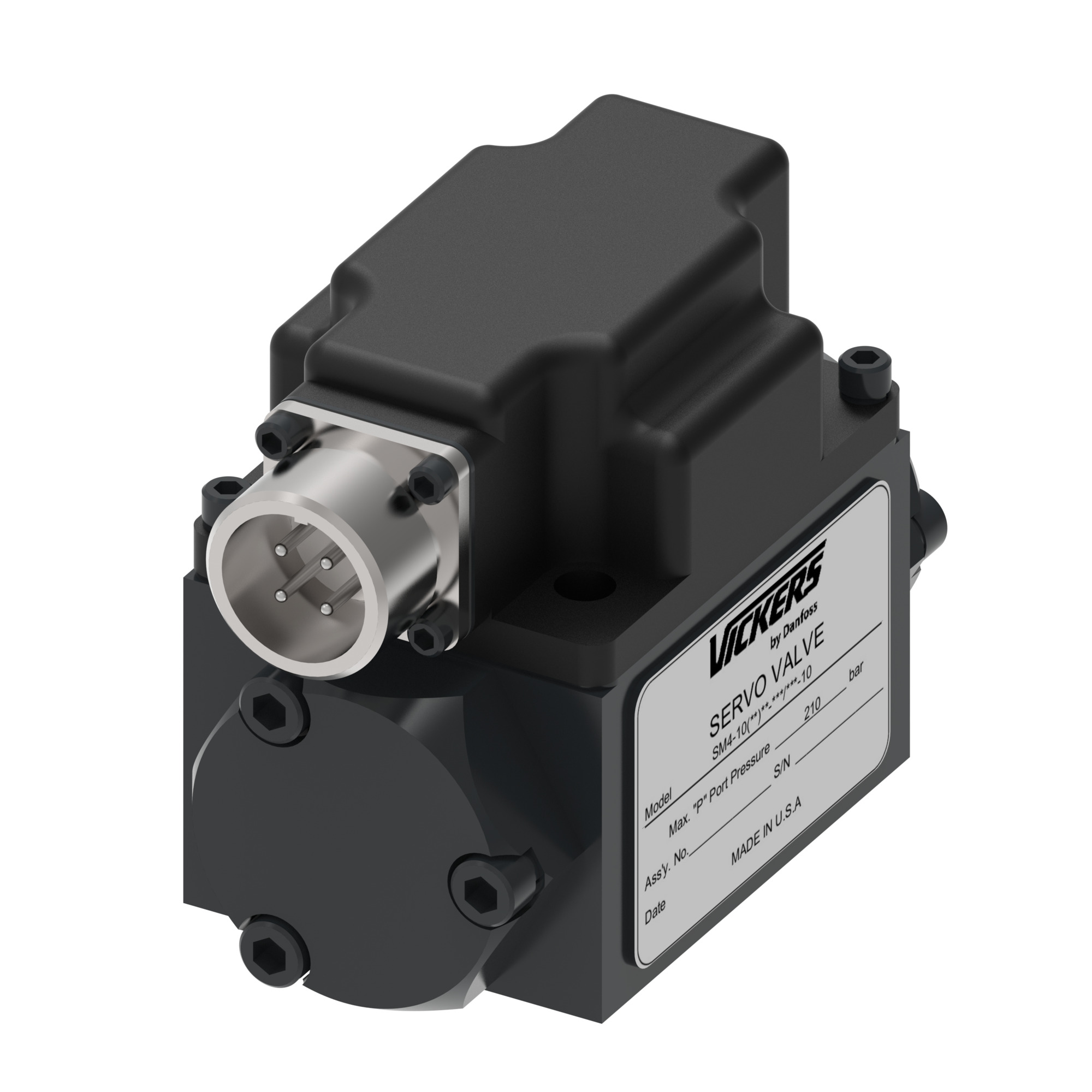

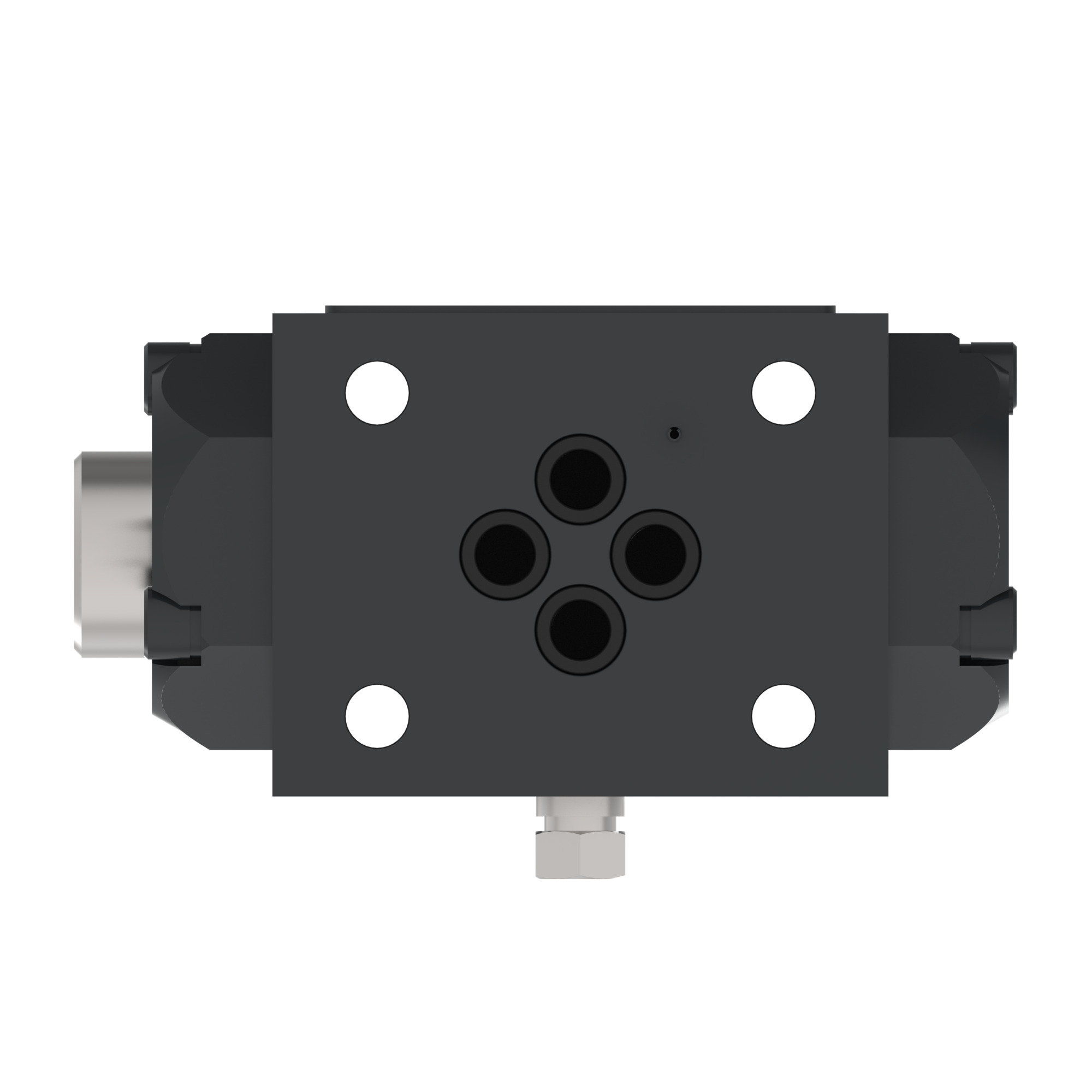

Danfoss SM4 10(10)38 20/200 10, SM410(10)3820/20010, manufacturer part number 688727. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

100% step response	10 ms
Brand	Vickers by Danfoss
Burst pressure return	250 (% max supply pressure)
Coil rated current	200 mA
Coil resistance	20 Ohms
Design Series	10 Series
Flow rating GPM	10.00
Flow rating LPM	38.0
Frequency response @-3dB	70 Hz
Frequncy response @ 90°	90 Hz
Hysteresis around null	</= 3 (% of rated current)
Linearity error	<10 (% of rated current)
Maximum supply pressure BAR	200
Maximum supply pressure PSI	3000
Minimum supply pressure BAR	14
Minimum supply pressure PSI	200
Model Code 1	SM410(10)3820/20010
Port circle inch	0.625
Product height in	2.800
Product height mm	71.120
Product length in	3.900
Product length mm	99.060
Product width in	2.000
Product width mm	50.8
Proof pressure return	100 (% max supply pressure)
Proof pressure supply	150 (% max supply pressure)
Series	SM4
Special feature	None
Symmetry error	<10 (% of rated current)
Threshold	</= 0.5 (% of rated current)
Valve size	Size 10
Working temp max C	135
Working temp max F	275
