Danfoss 686524

Q: When can 686524 be shipped?

686524 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up 686524 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for 686524 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 686524, subject to availability and destination.

MPN: 686524
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

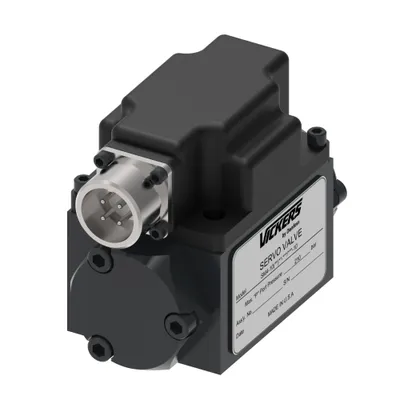

What is the Danfoss 686524?

Danfoss .SM4 20(2.5)9 300/30 10, SM420(2.5)9300/3010, manufacturer part number 686524. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

100% step response	6 ms
Brand	Vickers by Danfoss
Burst pressure return	250 (% max supply pressure)
Coil rated current	30 mA
Coil resistance	300 Ohms
Design Series	10 Series
Flow rating GPM	2.50
Flow rating LPM	9.0
Frequency response @-3dB	110 Hz
Frequncy response @ 90°	150 Hz
Hysteresis around null	</= 3 (% of rated current)
Linearity error	<10 (% of rated current)
Maximum supply pressure BAR	200
Maximum supply pressure PSI	3000
Minimum supply pressure BAR	14
Minimum supply pressure PSI	200
Model Code 1	SM420(2.5)9300/3010
Port circle inch	0.875
Product height in	2.830
Product height mm	71.882
Product length in	3.910
Product length mm	99.314
Product width in	3.420
Product width mm	86.868
Proof pressure return	100 (% max supply pressure)
Proof pressure supply	150 (% max supply pressure)
Series	SM4
Special feature	None
Symmetry error	<10 (% of rated current)
Threshold	</= 0.5 (% of rated current)
Valve size	Size 20
Working temp max C	135
Working temp max F	275
