Danfoss 6824

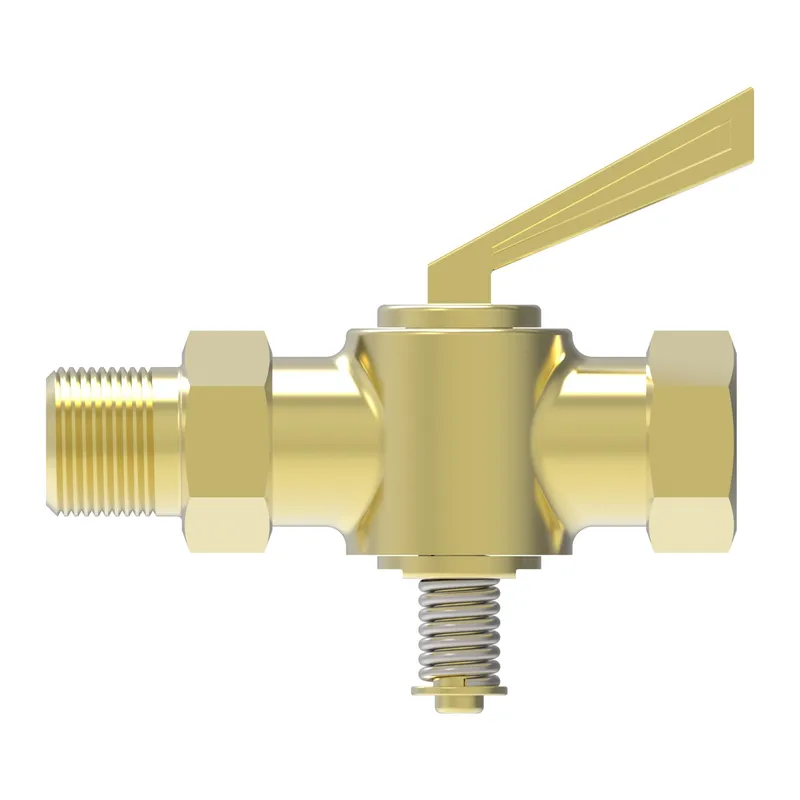

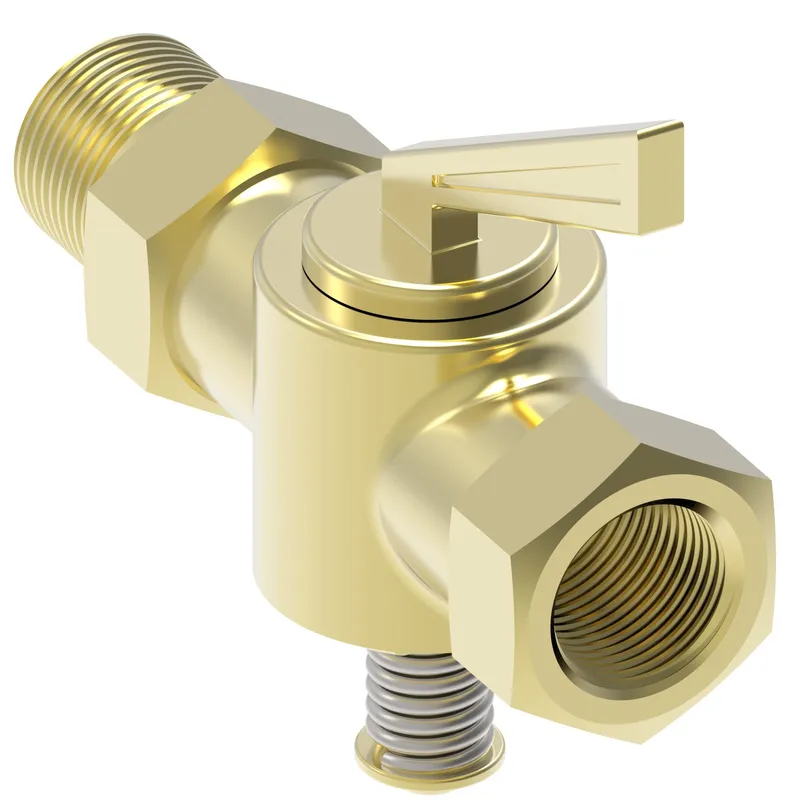

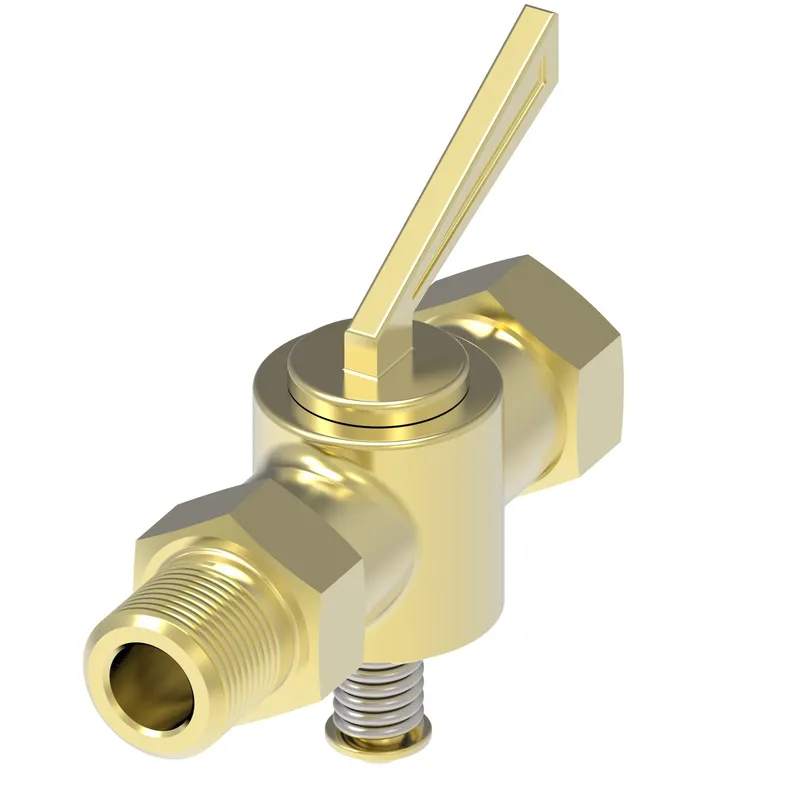

VALVE BRASS SHUTOFF 1/8MP TO 1/8 FP

MPN: 6824
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Danfoss 6824?

Danfoss VALVE BRASS SHUTOFF 1/8MP TO 1/8 FP, manufacturer part number 6824. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	725975762714
Brand	Danfoss
End Type 1	Male pipe (NPTF)
End Type 2	Female pipe (NPTF)
Hex size 1 IN	0.562
Hex size 1 MM	14.300
Product height in	1.750
Product height mm	44.450
Product length in	1.720
Product length mm	43.688
Product material	Brass
Product width in	0.562
Product width mm	14.275
Thread sealant	No
Tube outside diameter 1 IN	0.219
Tube outside diameter 1 MM	5.6
Tube outside diameter 2 IN	0.219
Tube outside diameter 2 MM	5.6
Working pressure bar	2.0
Working pressure psi	30
Working temp max C	121
Working temp max F	250
Working temp min C	-54
Working temp min F	-65
