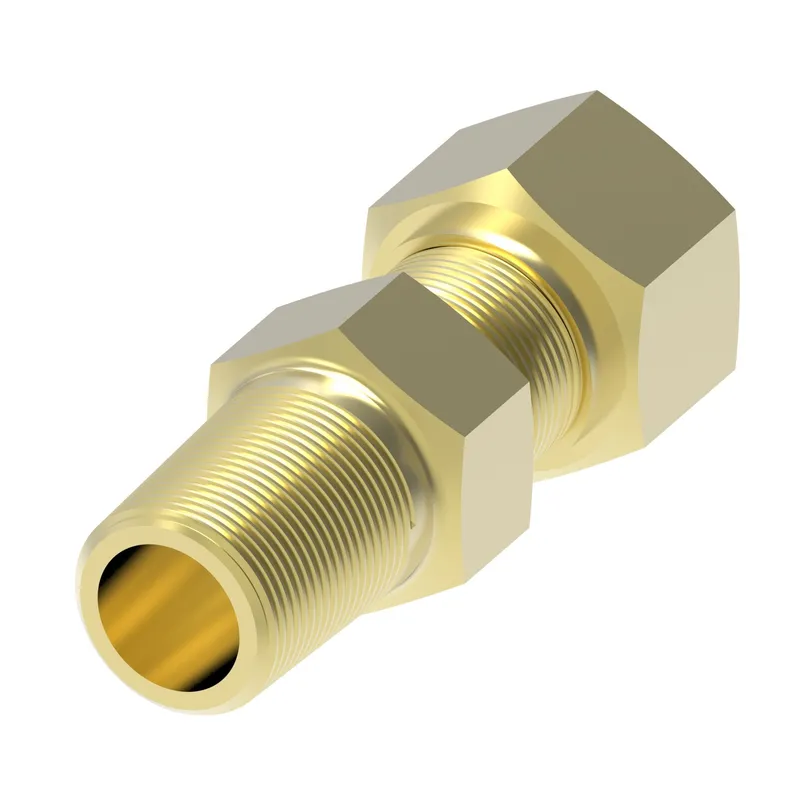

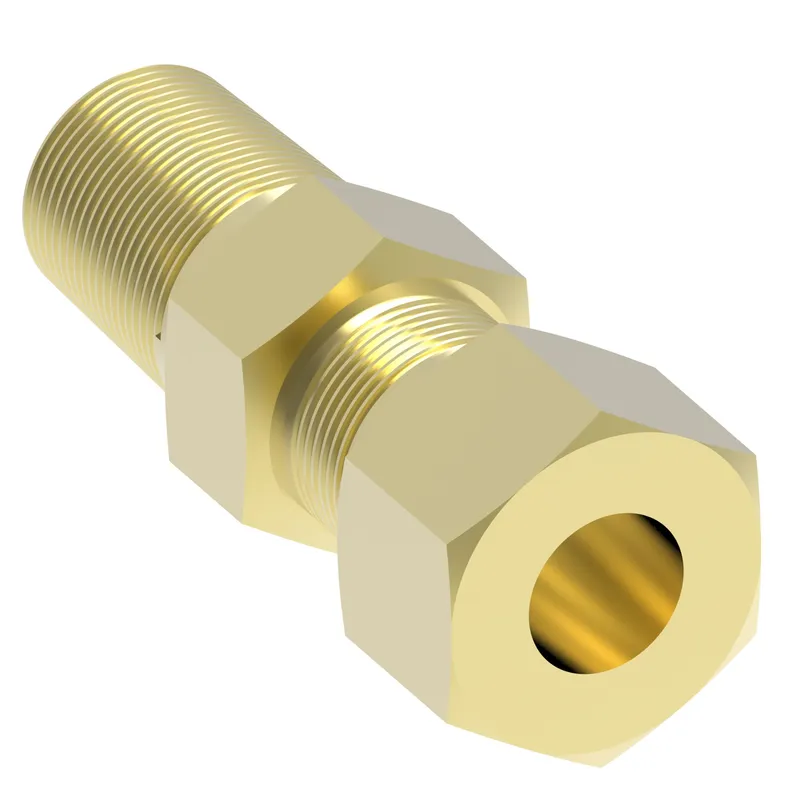

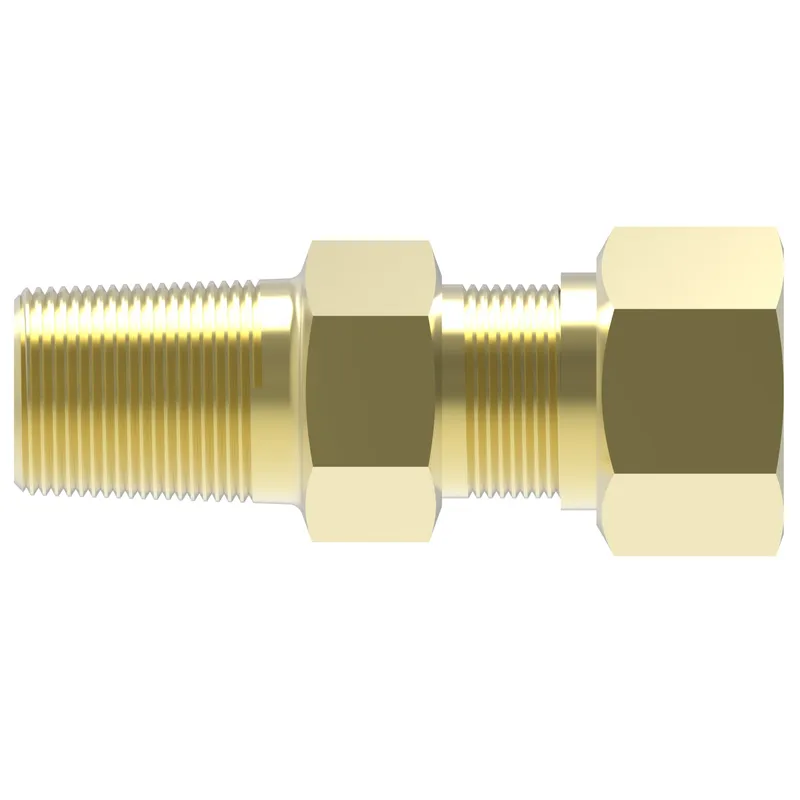

Adapter Selfalign Brass

Name: Danfoss 681X8X8-BG – Adapter Selfalign Brass
Brand: Danfoss (Drives)
SKU: 681X8X8-BG

MPN: 681X8X8-BG · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Adapters and swivel joints
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 681X8X8-BG be shipped?

681X8X8-BG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 681X8X8-BG in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 681X8X8-BG and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 681X8X8-BG, subject to availability and destination.

Danfoss Adapter Selfalign Brass, manufacturer part number 681X8X8-BG. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Weatherhead by Danfoss
End Type 1	Male pipe (NPTF)
End Type 2	Line/hose/tube
Finish plating	Nickel plating
Hex size 1 IN	0.875
Hex size 1 MM	22.200
Hex size 2 IN	0.813
Hex size 2 MM	20.700
Product material	Brass
Thread sealant	No
Tube outside diameter 1 IN	0.562
Tube outside diameter 1 MM	14.3
Tube outside diameter 2 IN	0.516
Tube outside diameter 2 MM	13.1
Working temp max C	121
Working temp max F	250
Working temp min C	-54
Working temp min F	-65
