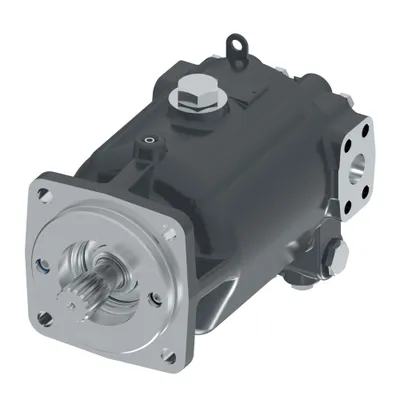

Danfoss 6433-010

MOTOR-FIXED DISPL, S1MF105, HHD643321AA1B3M3M00000B

MPN: 6433-010
Category: Fixed displacement axial piston motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 6433-010?

Danfoss MOTOR-FIXED DISPL, S1MF105, HHD643321AA1B3M3M00000B, manufacturer part number 6433-010. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

CPRV setting	CPRV, 160 psi (11 bar)
CPRV type	Standard charge pressure relief valve
Design code	Design code B
Design type	Fixed clearance with lip seal (33/39/46/54/64 only)
Displacement	6.431 cid (105.39 cc)
End cover and comp valve block	Valve block with shuttle valve, high-rate springs, charge pressure relief valve, and high pressure relief valves
Flow rate gpm	103.6
Flow rate lpm	392.0
High pres relief valve port A	Standard
High pres relief valve port B	Standard
HPRV setting port A	HPRV port A, 6000 psi (413.7 bar)
HPRV setting port B	HPRV port B, 6000 psi (413.7 bar)
Identification	Standard
Main ports	1.00 code 61 opposite side ports (not for new applications)
Maximum output speed	3720
Maximum temperature C	82.20
Maximum temperature F	180.00
Model Code 1	HHD643321AA1B3M3M00000B
Mounting Flange	4-BOLT-C
Output shaft	21 tooth 16/32 pitch spline (33/39/46/54/64 only)
Output torque lbf-in2	6141.2
Output torque Nm	693.9
Paint	Standard, primer blue
Product height in	7.880
Product height mm	200.152
Product length in	15.690
Product length mm	398.526
Product Series	Heavy duty hydrostatic fixed displacement motor
Product type	Fixed displacement motor
Product width in	7.860
Product width mm	199.644
Special features	No special features
Speed sensor	No speed sensor
Working pressure bar	414
Working pressure psi	6000
