Danfoss 636AG00104A

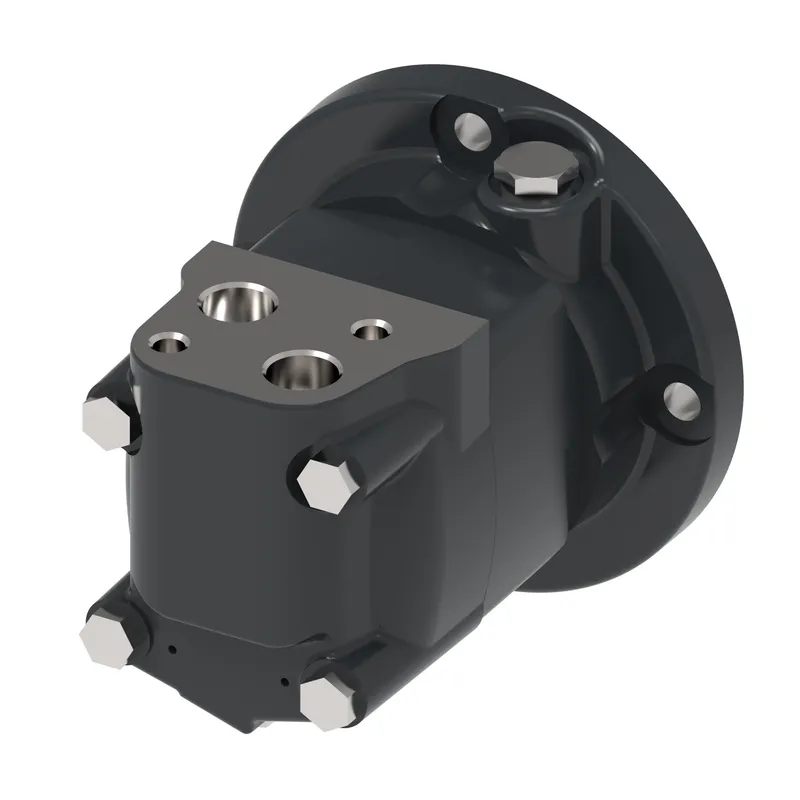

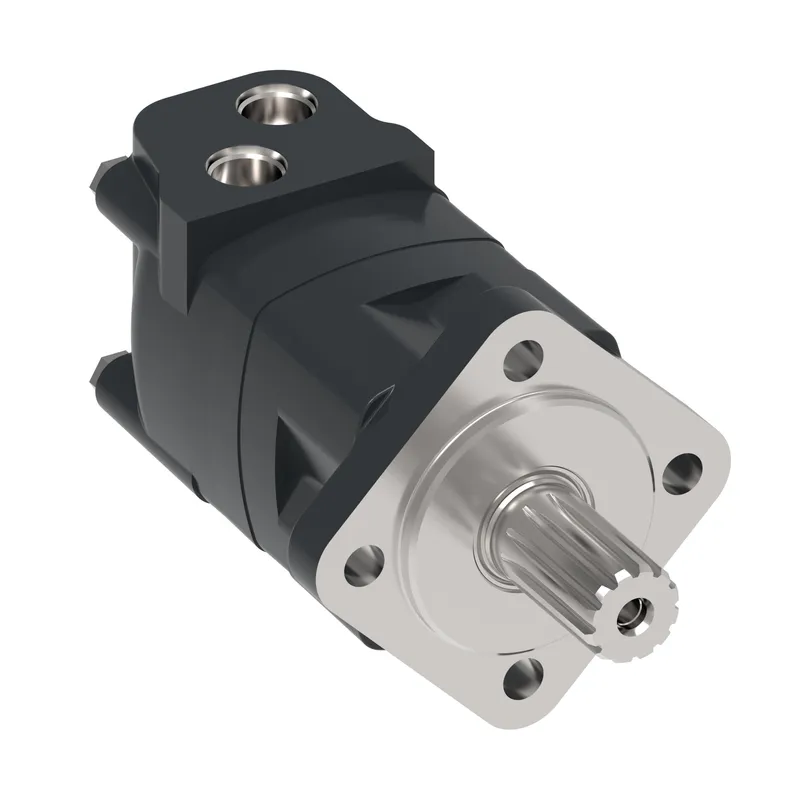

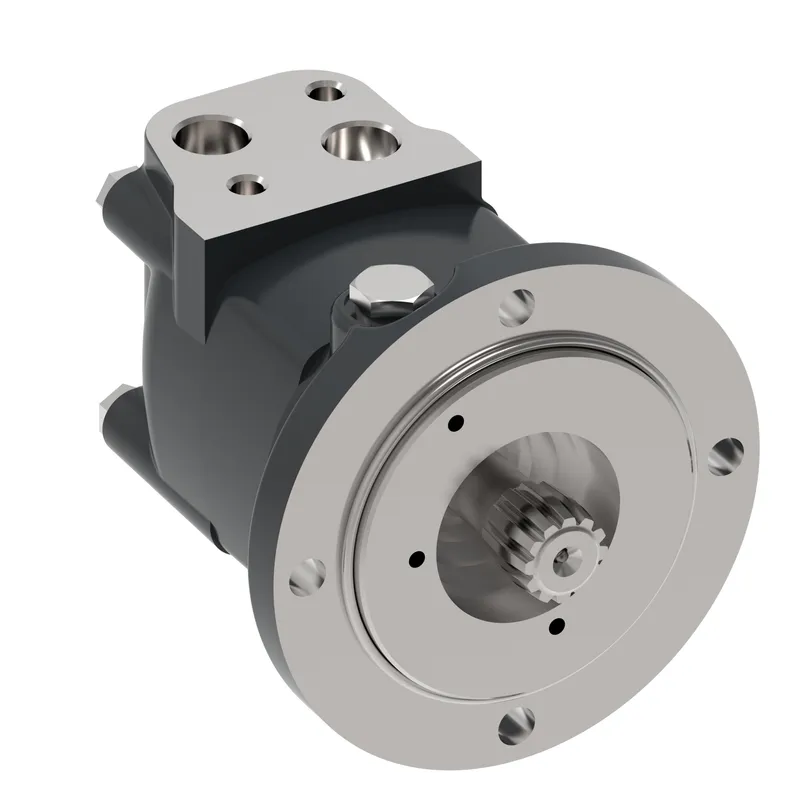

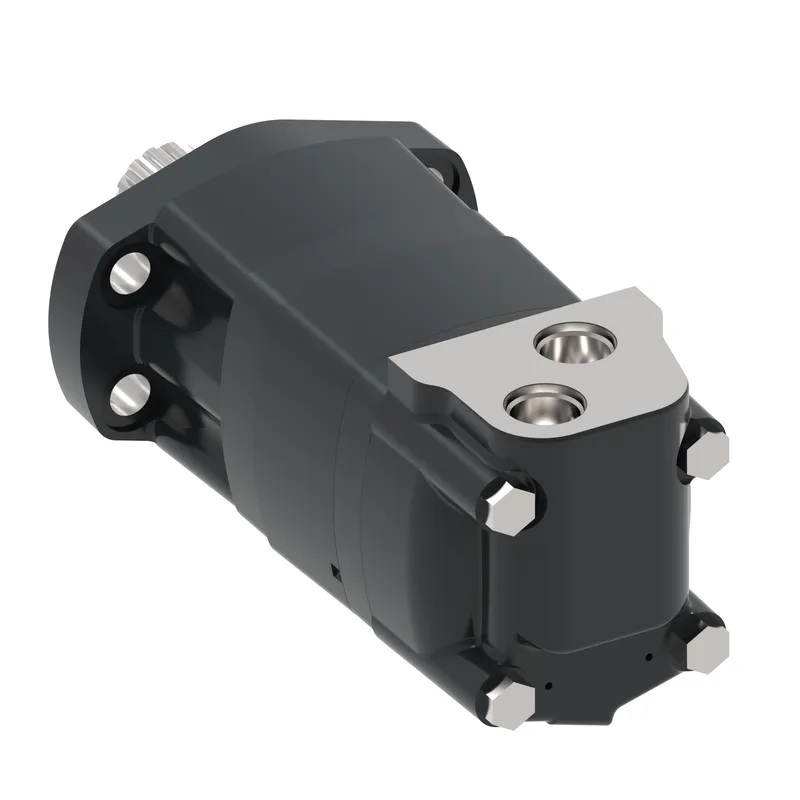

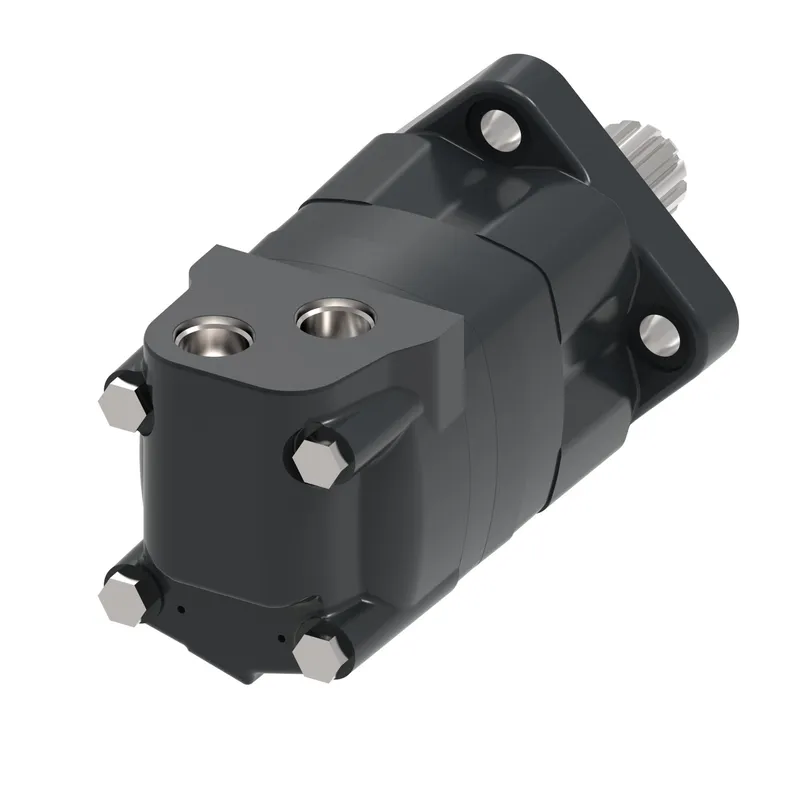

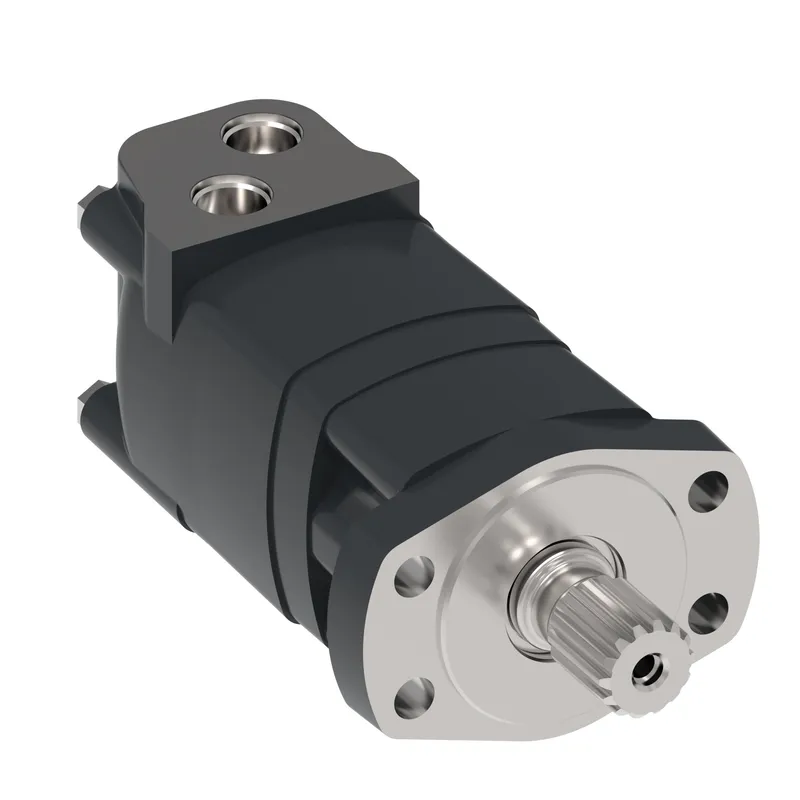

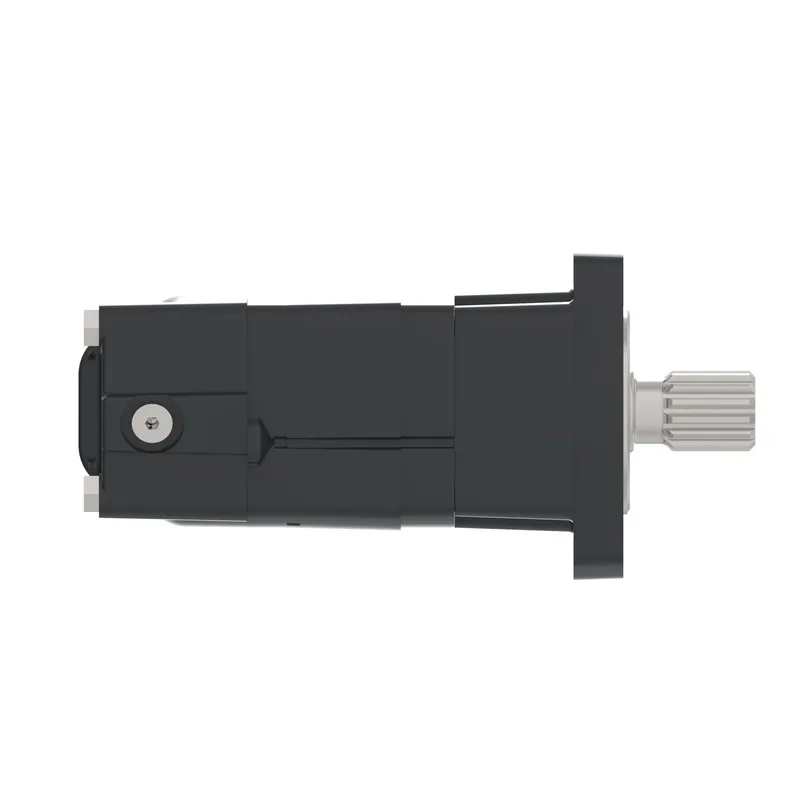

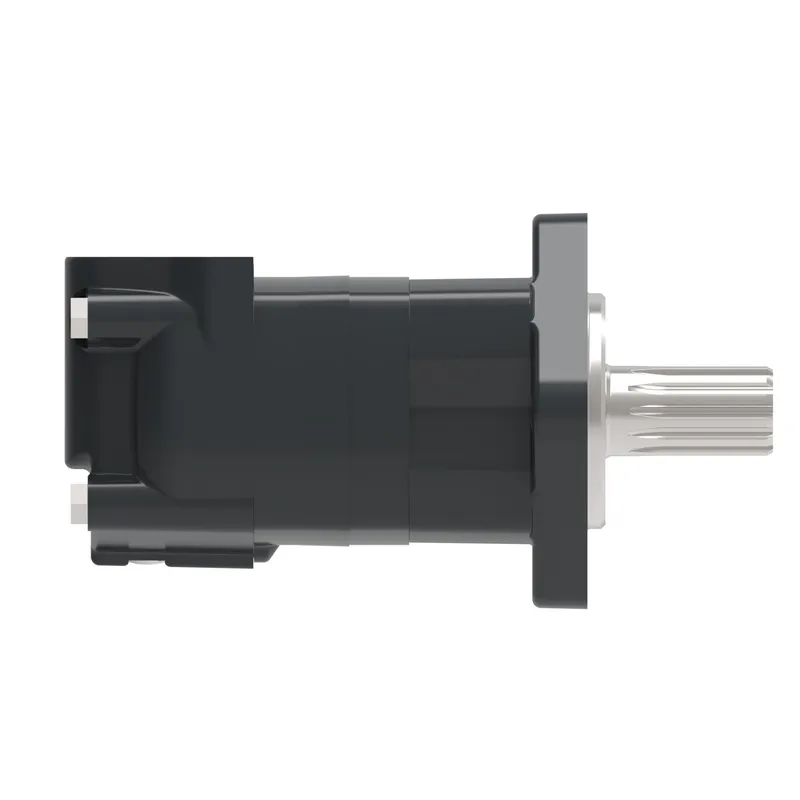

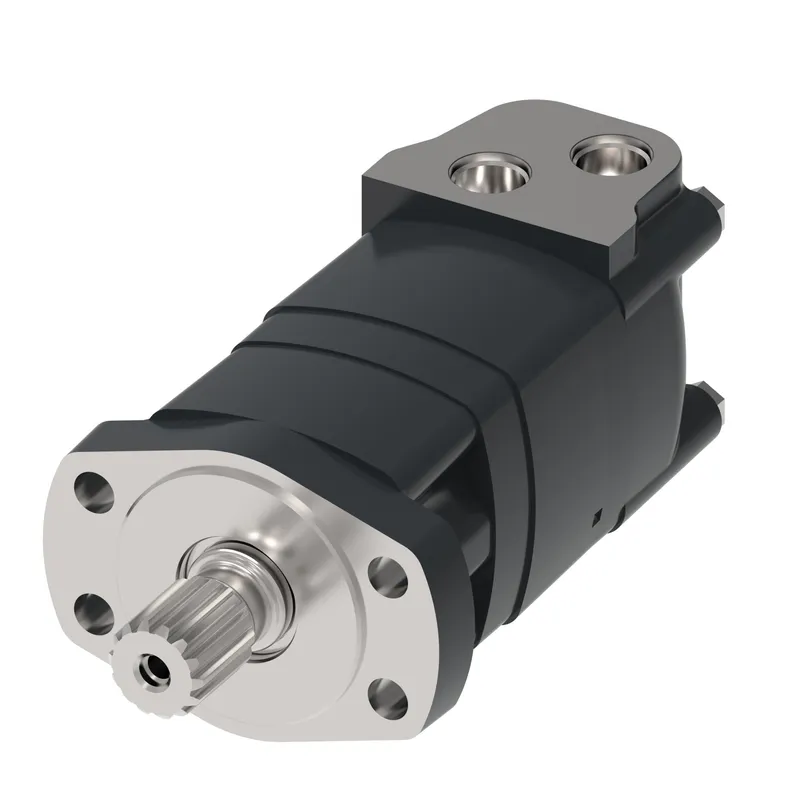

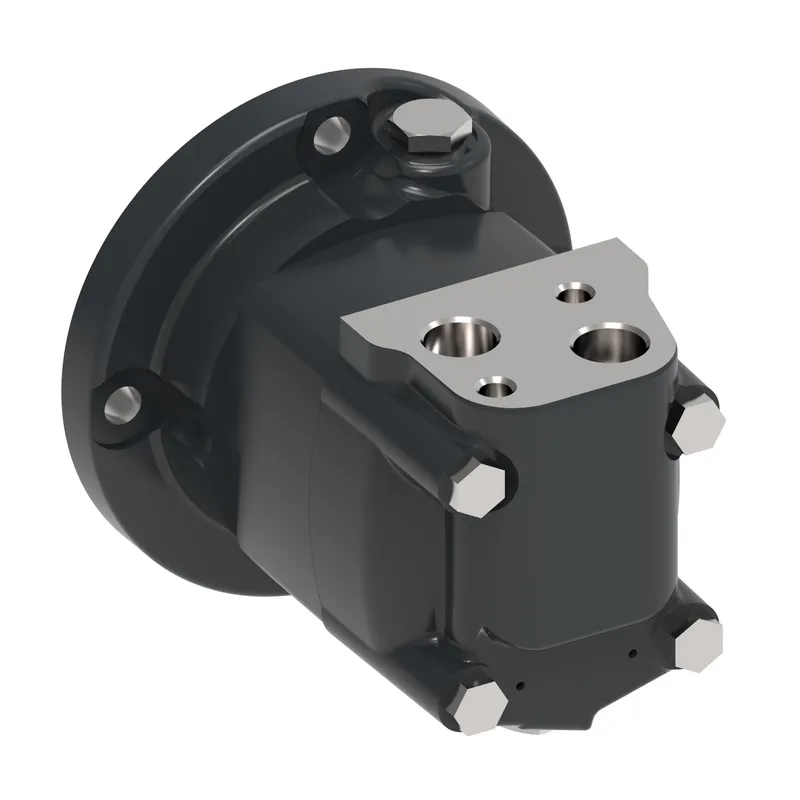

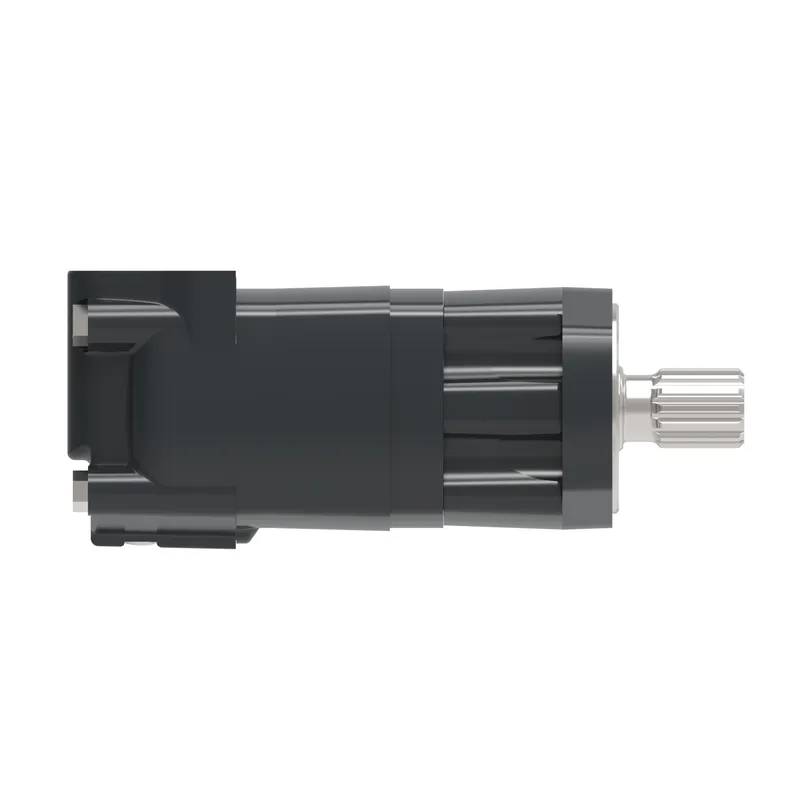

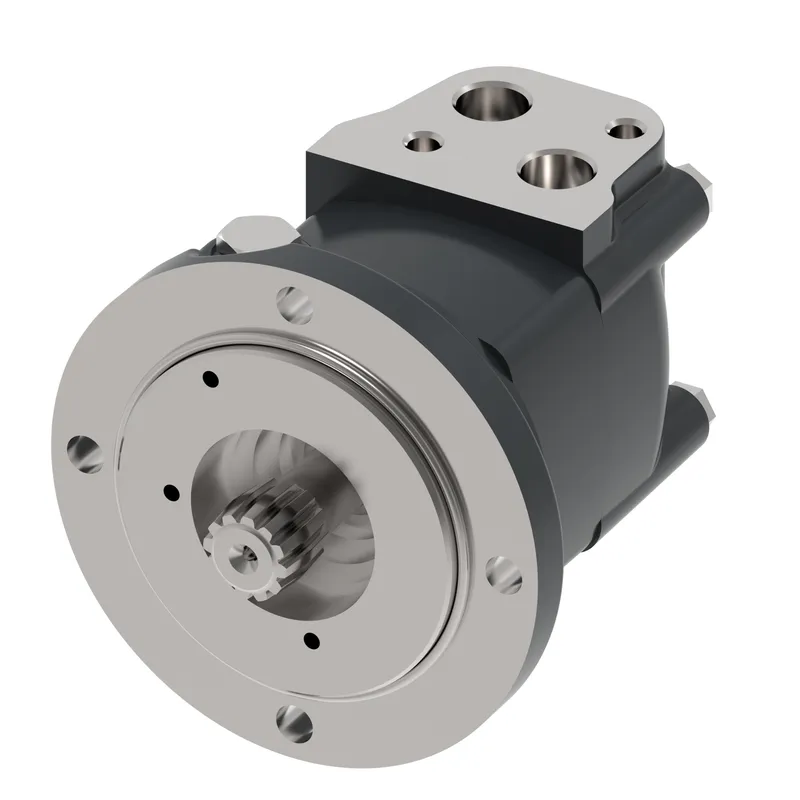

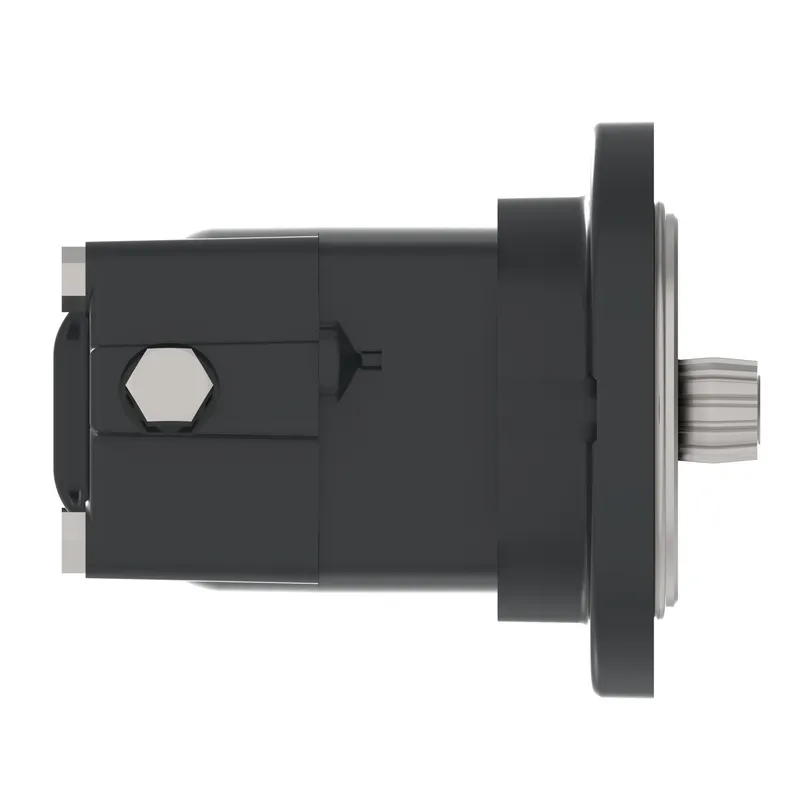

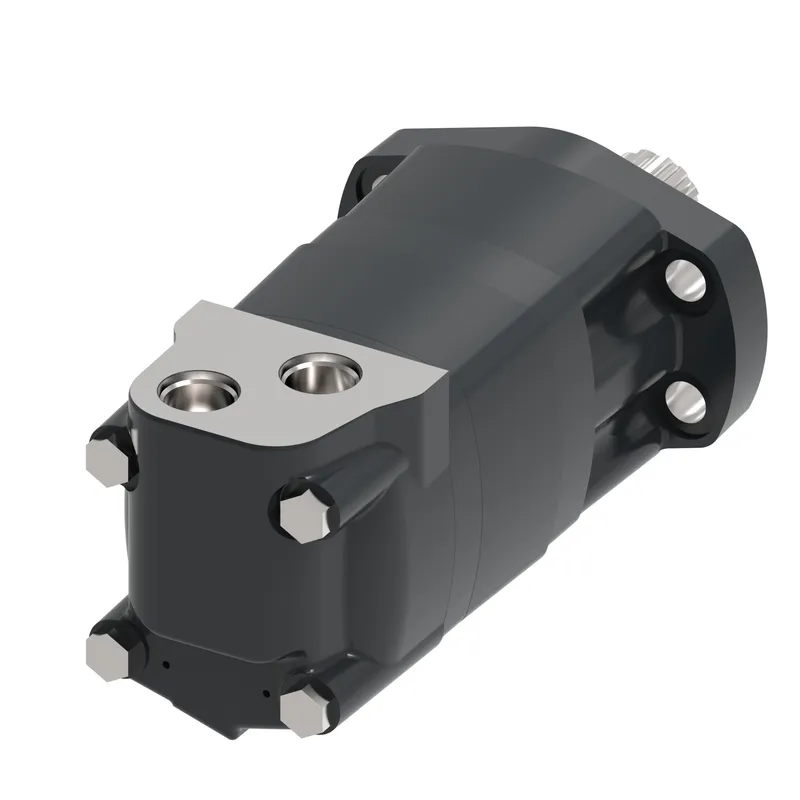

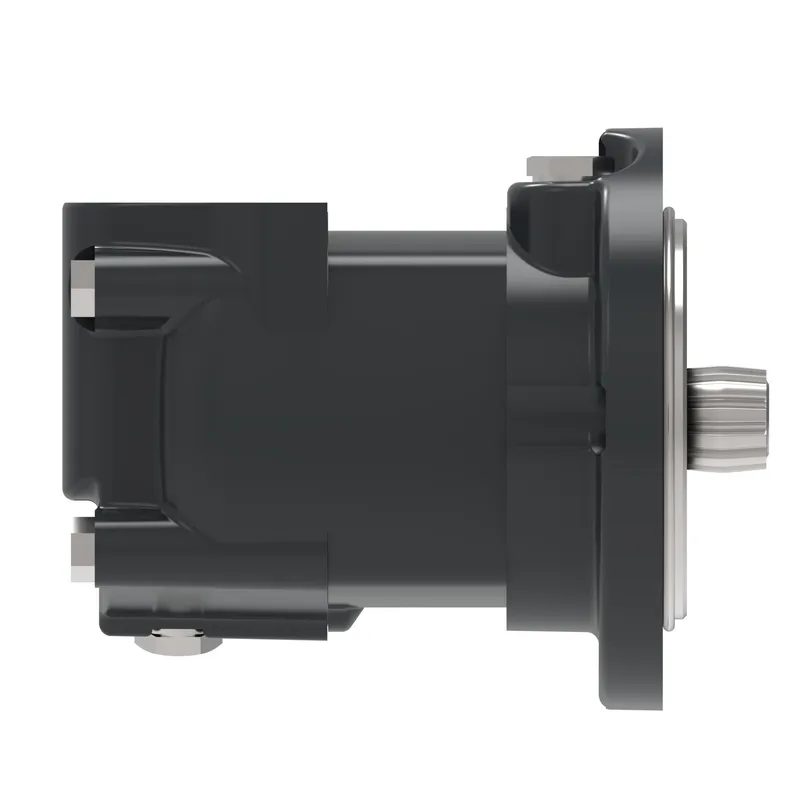

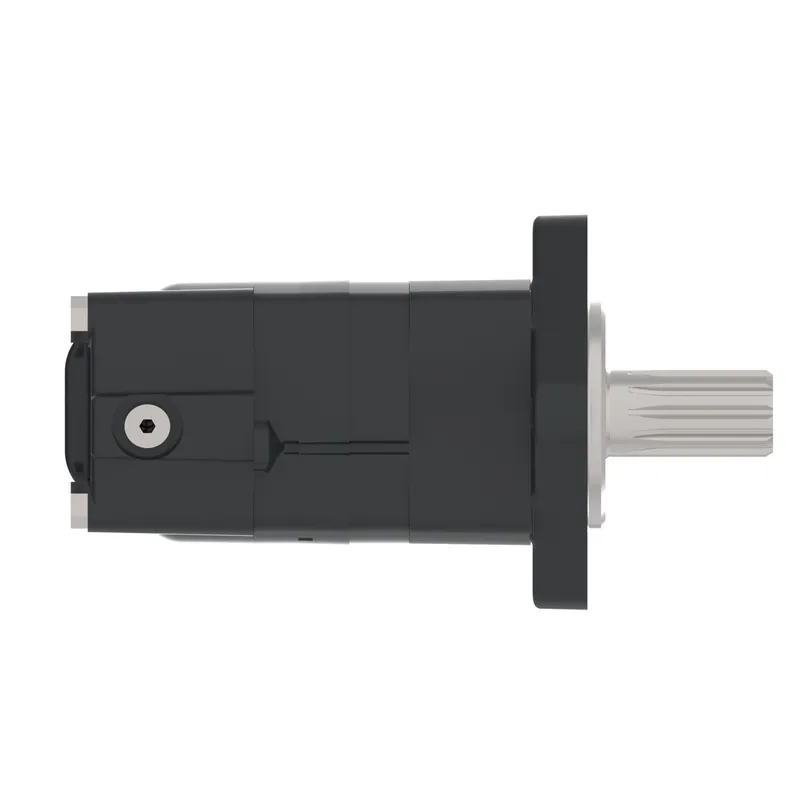

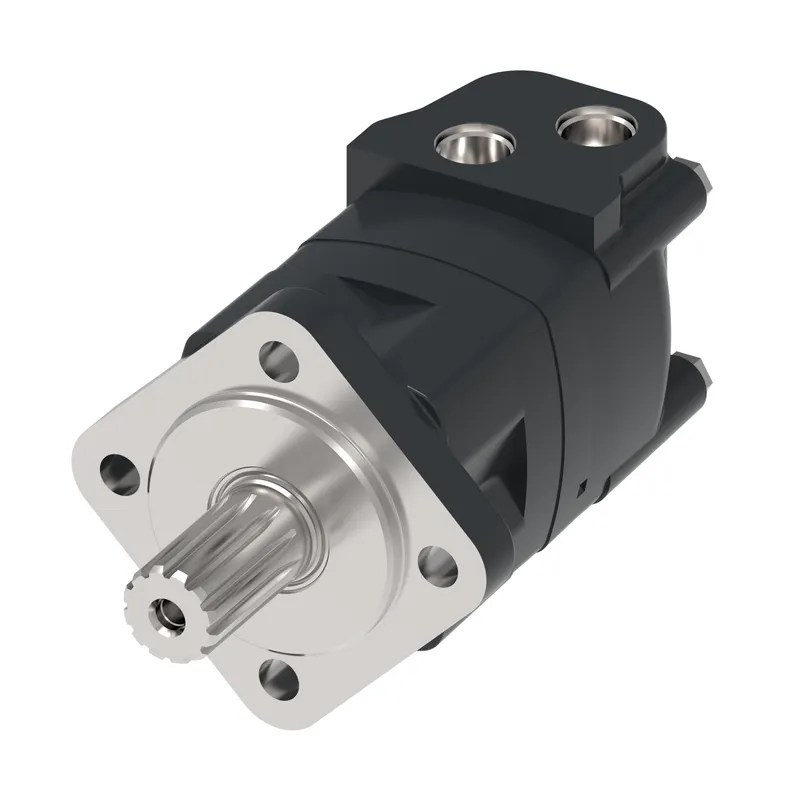

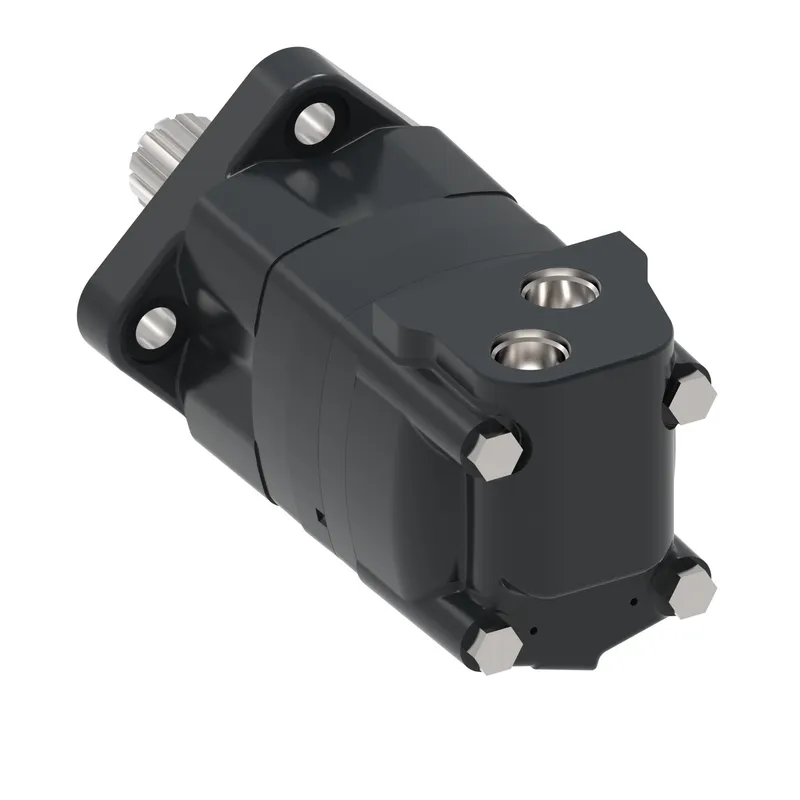

MOTOR-ORBITAL,A-DELTA SERIES 375 [22.9]

MPN: 636AG00104A
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 636AG00104A?

Danfoss MOTOR-ORBITAL,A-DELTA SERIES 375 [22.9], manufacturer part number 636AG00104A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Special features hardware	Valve plate with thrust bearing
Accessories	None
Customer identification	None
Design code	First
Displacement	362.9 cm3/r [22.2 in3/r]
Geroler options	Reduced SC
Mounting type	Wheel, 4 bolt: 82.6 [3.25] pilot DIA. pilot height 15,13.59[.535] DIA. holes on 147.6 [5.81] DIA. bolt circle. 127.0 [5.00] DIA.rear mount pilot，53[2.09] flange thickness
Output shaft type	37.82[1.489] DIA. tapered shaft per SAE J501 with 1.125-20 UNEF-2A threaded shaft end and slotted hex nut, 7.938 [.3125] SQ x31.75 [1.250] key, bearing position DIA.38.1
Paint packaging	Primer low gloss black,except output shaft(including dust ring),other positions need to be paint , bulk box
Port Type	G 1/2 BSP straight thread ports
Pressure flow option	None
Product	Motor
Seal options	Standard
Series	A-Delta series
Special assembly instructions	None
