Danfoss 632AG00110A

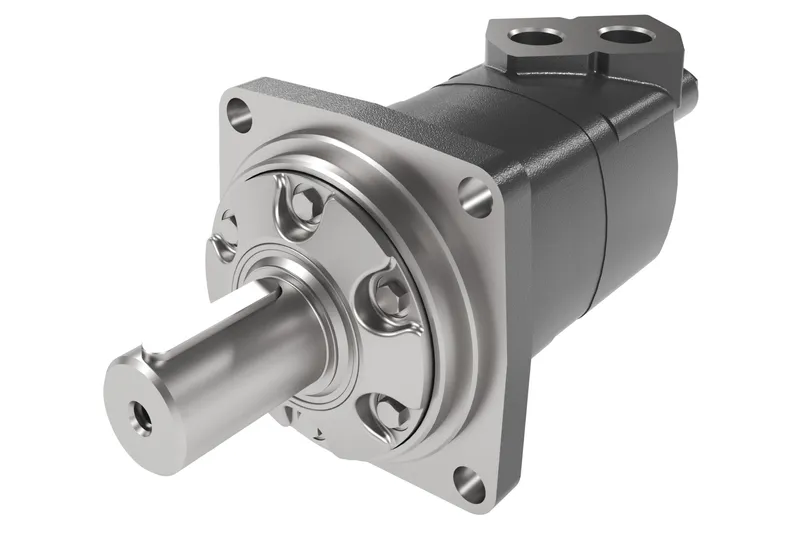

MOTOR-ORBITAL,XL6 SERIES 625 [38.09], MC6625AH12AC030000B001800ABADB

MPN: 632AG00110A
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 632AG00110A?

Danfoss MOTOR-ORBITAL,XL6 SERIES 625 [38.09], MC6625AH12AC030000B001800ABADB, manufacturer part number 632AG00110A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	MC6625AH12AC030000B001800ABADB
Motor Series	XL6 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor size	625
Geometric displacement [cm3/r [in3/r]]	624.0 [38.08]
Motor type	Standard
Motor function	Standard
Mounting flange type	4 Bolt - Square
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	160.0 x 9.9, 200.0, 18.0 [6.30 x 0.39, 7.87, 0.71]
Shaft type	Straight
Shaft dimension	Dia. 50 mm, M12 x 1.75-6H thread in shaft end
Shaft Key	Rectangular key, 14 x 9 x 70 mm
Main port thread type	BSP
Main port style	Sideport - staggered
Main port dimension	G 1
Drain Port Dimension	G 1/4
Brake Release Port Dimension	n/a
Painted	Yes
Paint information	Painted, Black
Special Features Assembly	Standard
Dust seal	Extreme environment triple lip seal
Shaft Seal	NBR - Low pressure
Seal Kit	Z331-114
Front bearing type	Tapered roller bearing
Rear bearing type	Tapered roller bearing
Orbital gearwheel set	Standard
Check valve function	Yes
Hydraulic valve function	None
Sensor	None
Packaging	Single pack
Name Tag	Customized
Brand	Danfoss
Sub brand	Xcel
