Danfoss 632AG00077A

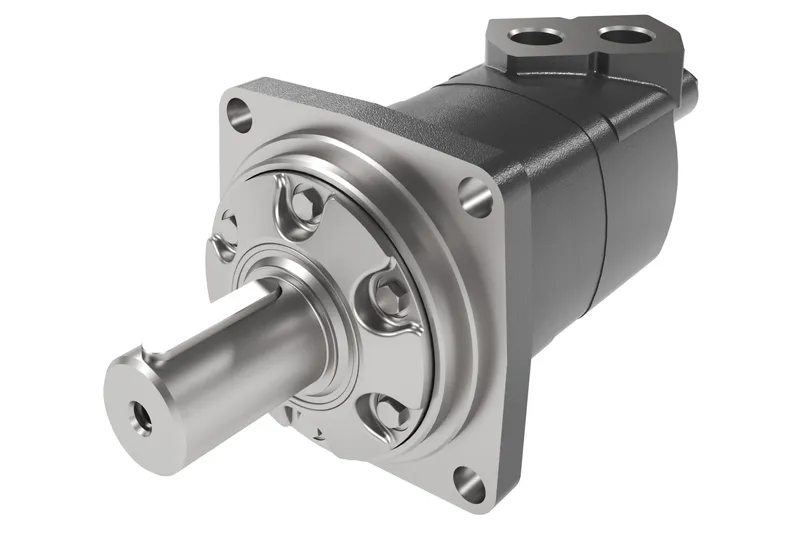

MOTOR-ORBITAL,XL6 SERIES 390 [23.9], MC6390AB01AA0200000000000AAAAB

MPN: 632AG00077A
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 632AG00077A?

Danfoss MOTOR-ORBITAL,XL6 SERIES 390 [23.9], MC6390AB01AA0200000000000AAAAB, manufacturer part number 632AG00077A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	MC6390AB01AA0200000000000AAAAB
Motor Series	XL6 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor size	390
Geometric displacement [cm3/r [in3/r]]	391.7 [23.90]
Motor type	Standard
Motor function	Standard
Mounting flange type	4 Bolt - Square
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	127.0 x 13.1, 162.0, 14.4 [5.00 x 0.52, 6.38, 0.57] SAE CC
Shaft type	Straight
Shaft dimension	Dia. 1 1/2 inch, 3/8 - 16 UNC-2B thread in shaft end
Shaft Key	Square key, 3/8 x 1 5/8 inch
Main port thread type	UN / UNF
Main port style	Sideport - staggered
Main port dimension	1 5/16 - 12 UN-2B SAE O-Ring port
Drain Port Dimension	7/16 - 20 UNF-2B SAE O-Ring port
Brake Release Port Dimension	n/a
Painted	Yes
Paint information	Painted, Blue
Special Features Assembly	Standard
Dust seal	Standard
Shaft Seal	NBR - Standard
Seal Kit	Z331-03
Front bearing type	Tapered roller bearing
Rear bearing type	Tapered roller bearing
Orbital gearwheel set	Standard
Check valve function	Yes
Hydraulic valve function	None
Sensor	None
Packaging	Single pack
Name Tag	Danfoss name tag
Design code	2
Brand	Danfoss
Sub brand	Xcel
