Danfoss (Drives)

Danfoss 631705

XCG 03 1F 30, XCG031F30

MPN: 631705
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 631705?

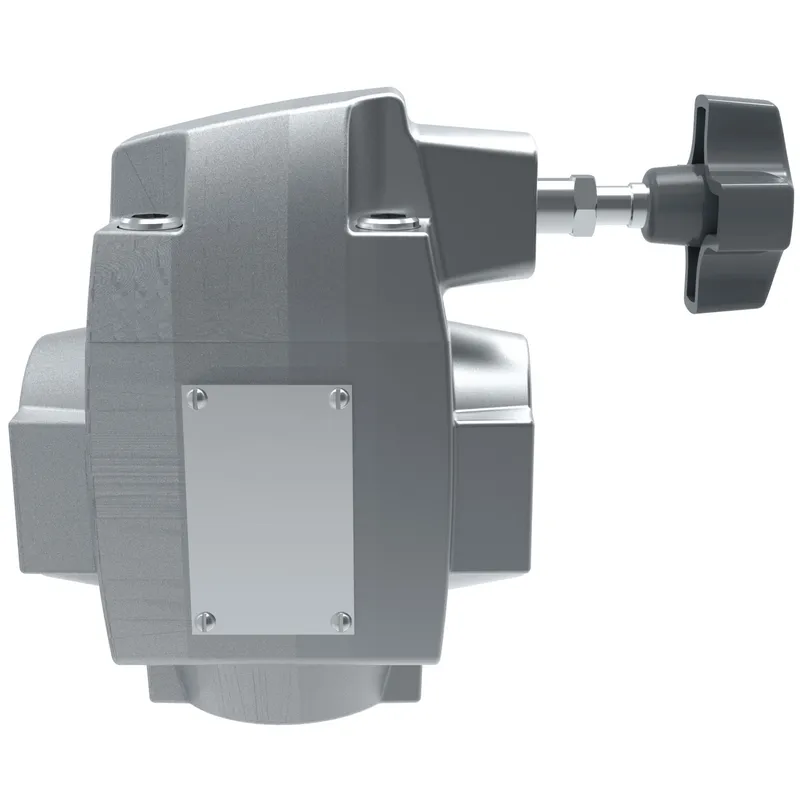

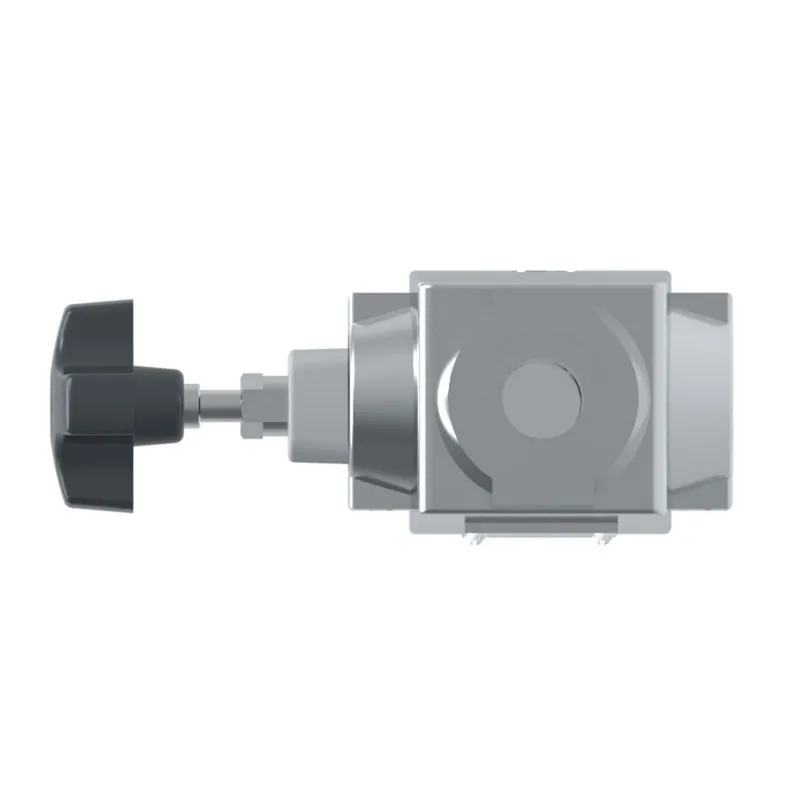

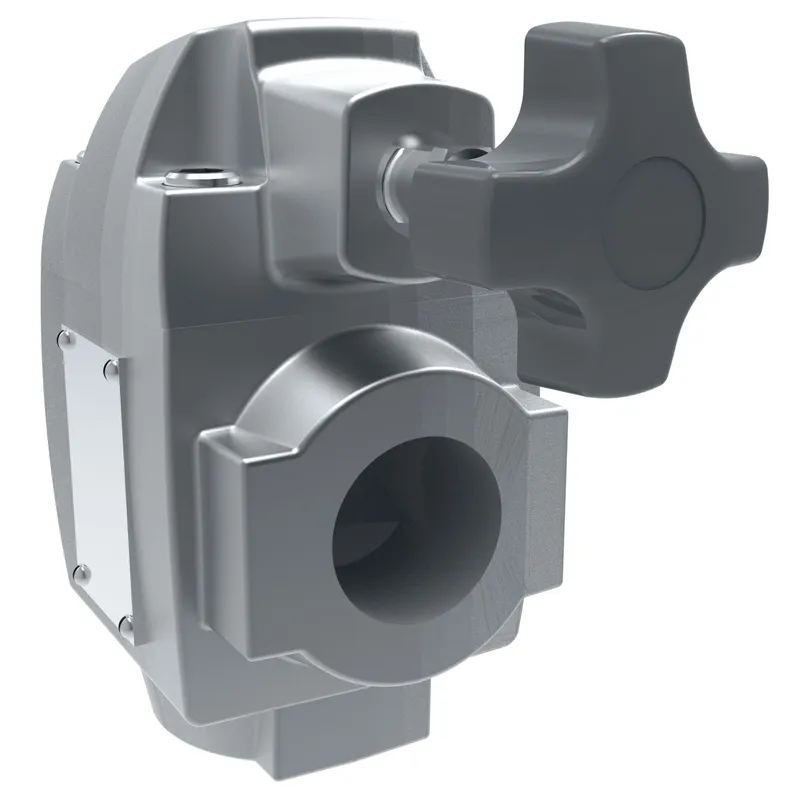

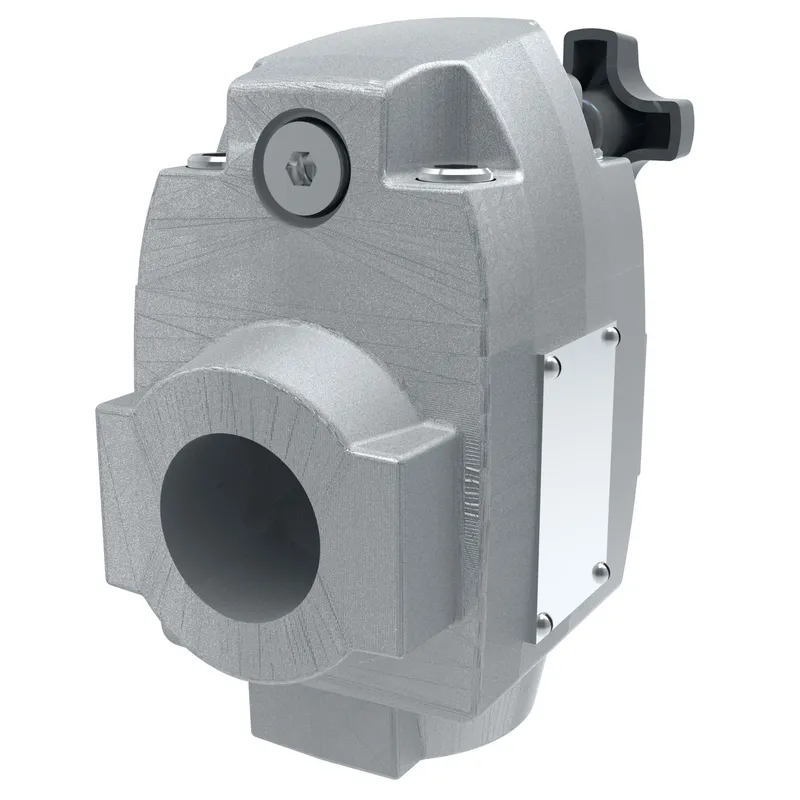

Danfoss XCG 03 1F 30, XCG031F30, manufacturer part number 631705. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pilot operated
Adjustment range bar	70
Adjustment range PSI	1000
Adjustment type	Screw with locknut
Brand	Vickers by Danfoss
Check valve	Yes
Design Series	30 Series
Electrical connection	None
Flow rate lpm	53.0
Flow rate USGPM	14.0
Fluid Cleanliness	19/17/14 Micron
Fluid compatibility	Petroleum oils
Gauge port thread	1/4 NPTF
Hi-vent spring	No
Indicator Light	No
Maximum pressure BAR	210
Maximum pressure PSI	3000
Model Code 1	XCG031F30
Performance	Standard
Product height in	5.600
Product height mm	142.240
Product length in	6.200
Product length mm	157.480
Product width in	2.810
Product width mm	71.374
Seal material	Nitrile
Size	Size 03
Special feature	None
Stage	Two stage
Tank pressure bar	210
Tank pressure PSI	3000
Valve Mount Type	Subplate/manifold mounted
Valve type	Pressure reducing valve
Working temperature max C	70
Working temperature max F	158
Working temperature min C	-20
Working temperature min F	-4

631705: frequently asked questions

When can 631705 be shipped?

631705 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 631705 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 631705 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 631705, subject to availability and destination.
