Danfoss 629AG00447A

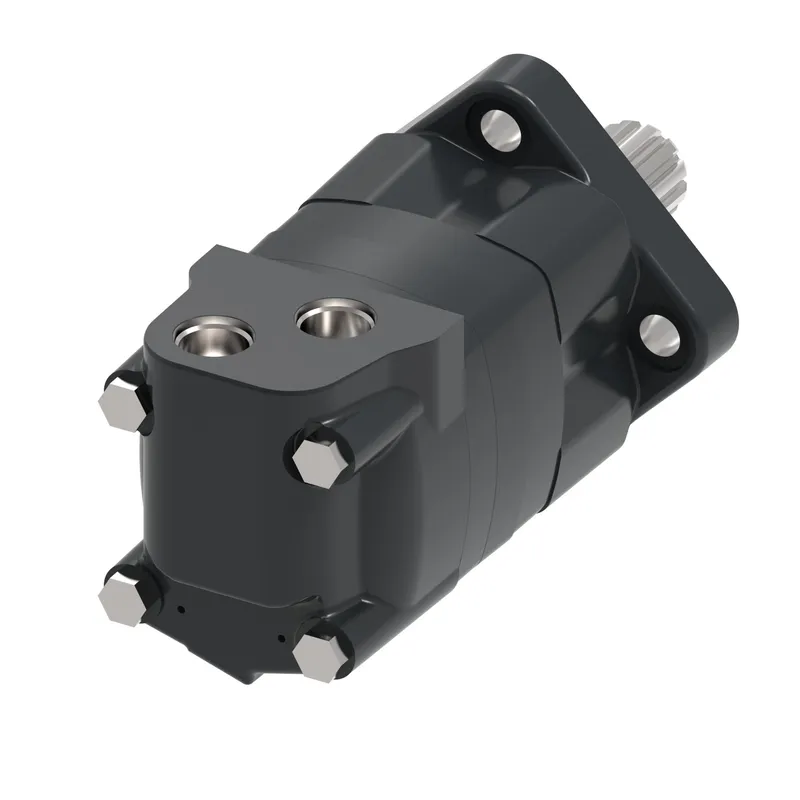

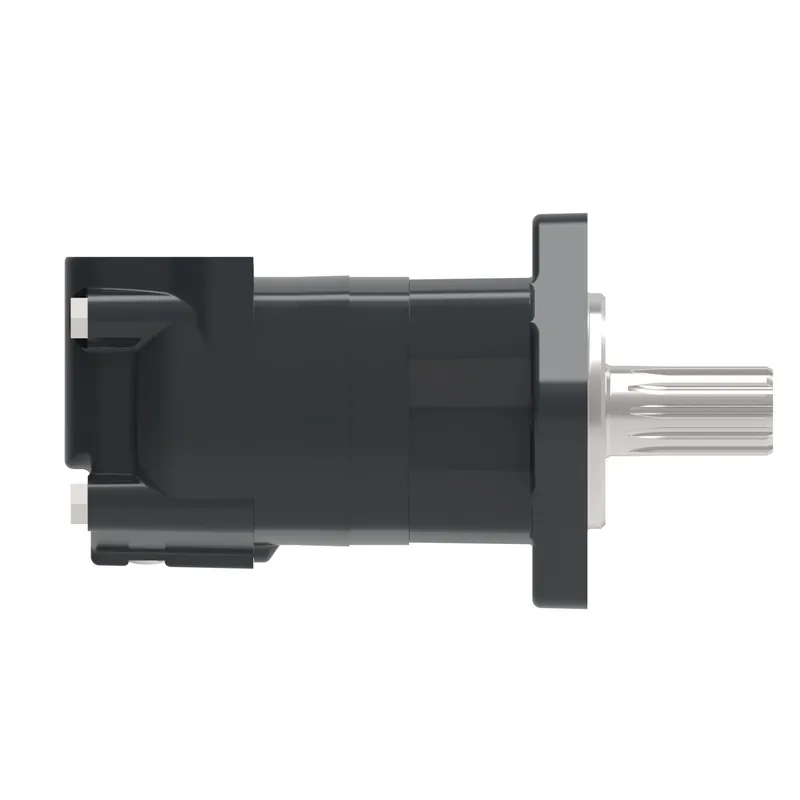

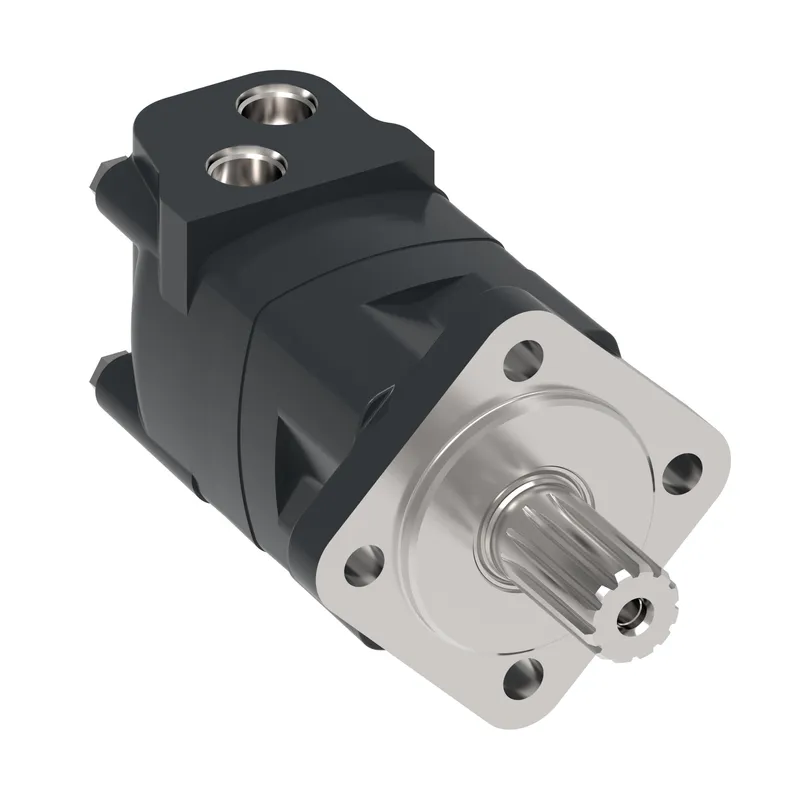

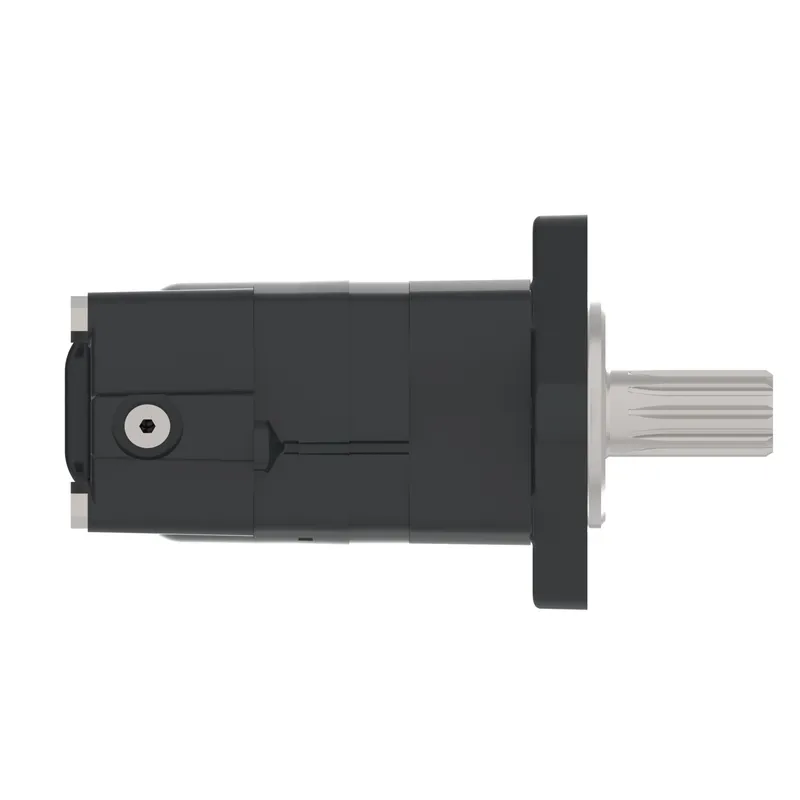

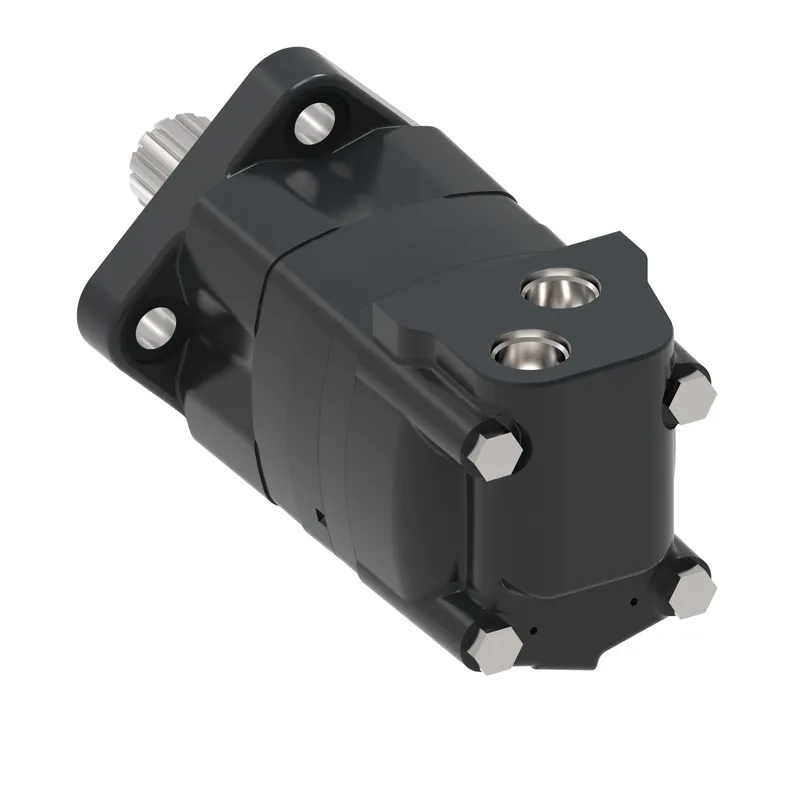

MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AH02AG0200013000000AAAAB

MPN: 629AG00447A
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 629AG00447A?

Danfoss MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AH02AG0200013000000AAAAB, manufacturer part number 629AG00447A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	MC2305AH02AG0200013000000AAAAB
Motor Series	XL2 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor size	305
Geometric displacement [cm3/r [in3/r]]	305.7 [18.65]
Motor type	Standard
Motor function	Standard
Mounting flange type	4 Bolt - Square
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	82.6 x 6.3, 106.4, 13.6 [3.25 x 0.25, 4.19, 0.54]
Shaft type	Straight
Shaft dimension	Dia. 1 1/4 inch, 3/8 - 16 UNC-2B thread in shaft end
Shaft Key	Square key, 5/16 x 1 1/4 inch
Main port thread type	BSP
Main port style	Sideport - staggered
Main port dimension	G 1/2
Drain Port Dimension	G 1/4
Brake Release Port Dimension	n/a
Painted	Yes
Paint information	Painted, Blue
Special Features Assembly	Standard
Dust seal	Standard
Shaft Seal	HNBR - High pressure
Seal Kit	Z331-51
Front bearing type	Tapered roller bearing
Rear bearing type	Tapered roller bearing
Orbital gearwheel set	Standard
Check valve function	Yes
Hydraulic valve function	None
Sensor	None
Packaging	Single pack
Name Tag	Danfoss name tag
Brand	Danfoss
Sub brand	Xcel
