Danfoss 629AG00330A

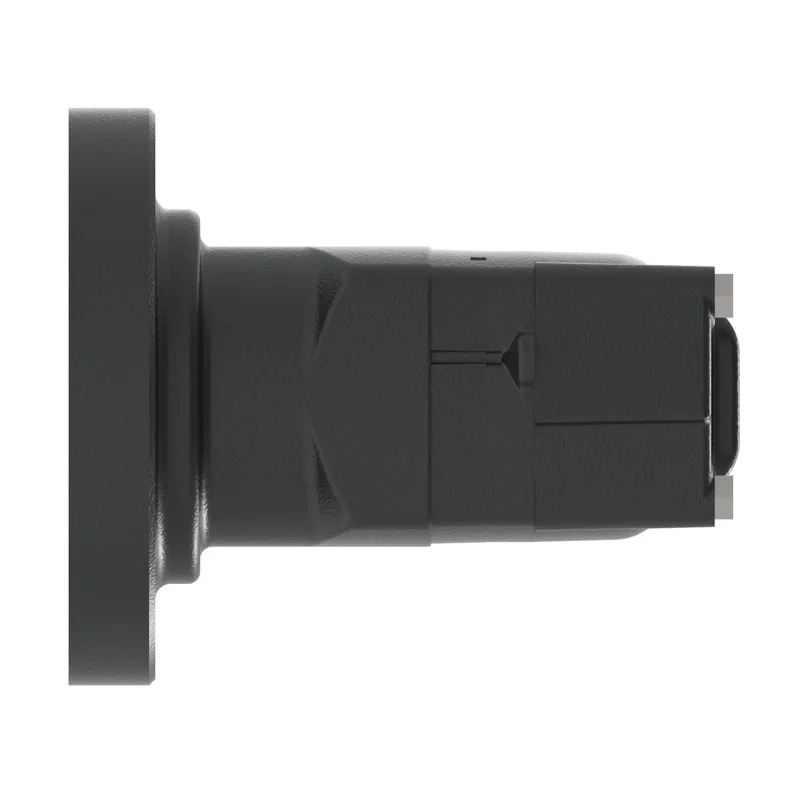

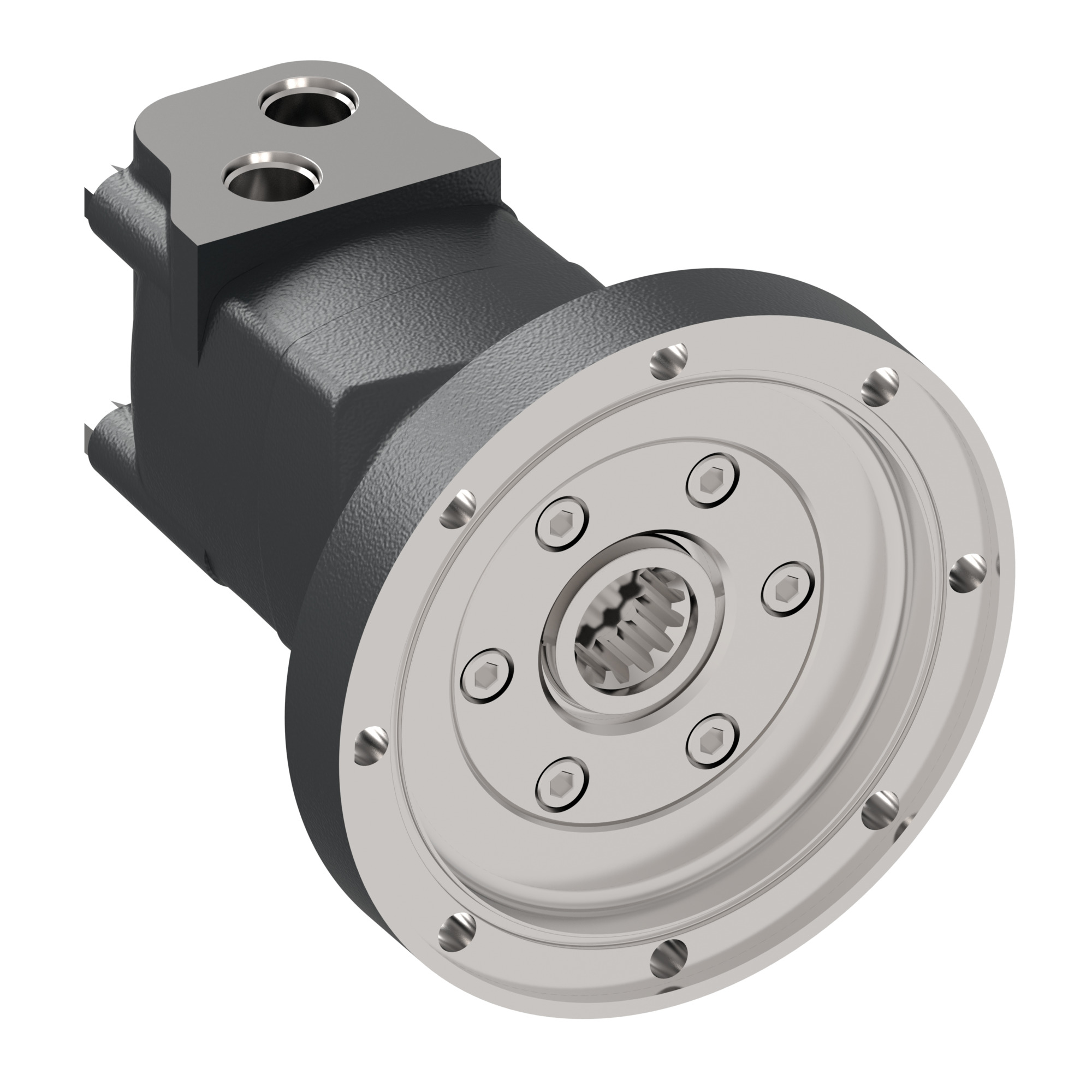

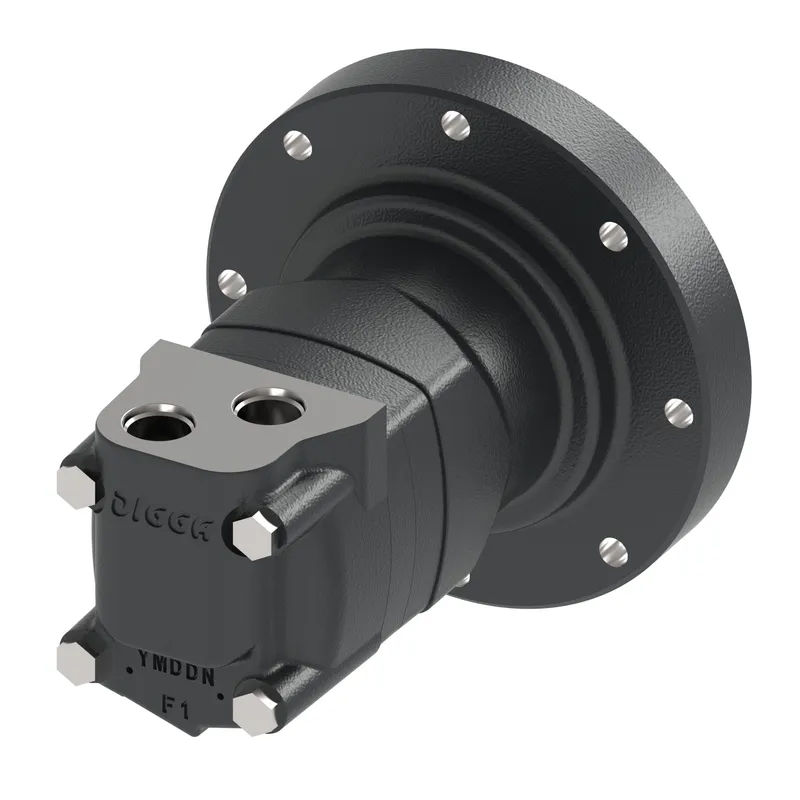

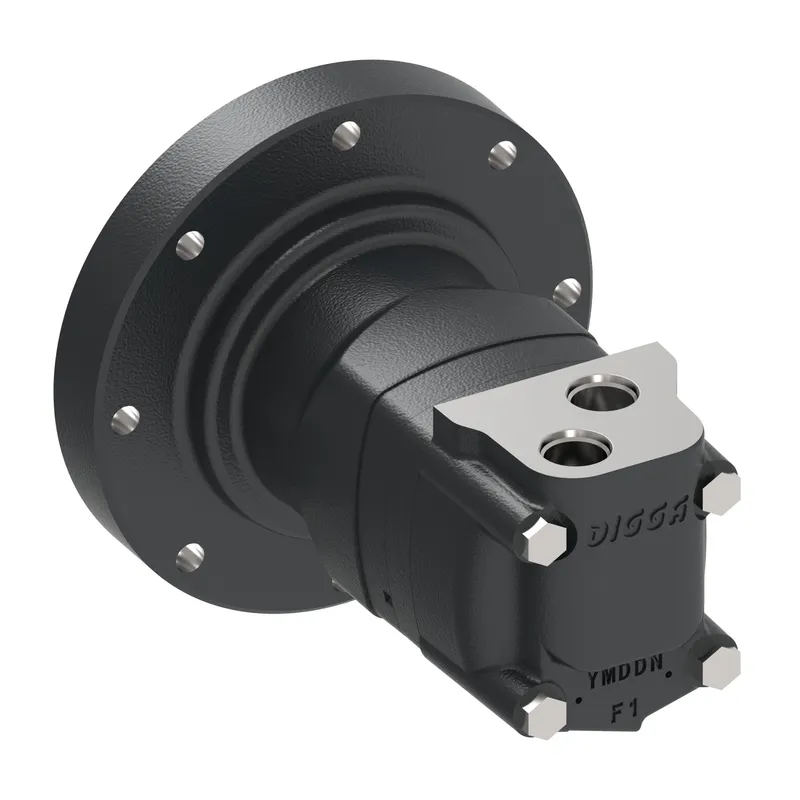

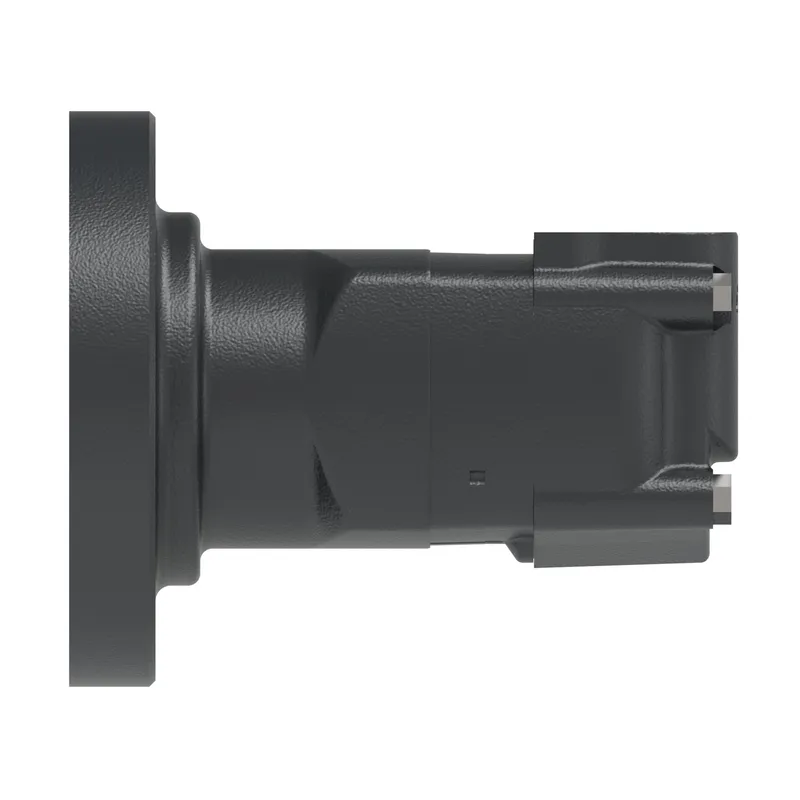

MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130ZB96AA0000010000000ABACB

MPN: 629AG00330A
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 629AG00330A?

Danfoss MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130ZB96AA0000010000000ABACB, manufacturer part number 629AG00330A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	MC2130ZB96AA0000010000000ABACB
Motor Series	XL2 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor size	130
Geometric displacement [cm3/r [in3/r]]	130.5 [7.96]
Motor type	Standard
Motor function	Standard
Mounting flange type	Special
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	178.0 x # , 165.0, 10.5 [7.00 x #, 6.50, 0.41] - Spec. Component
Shaft type	Internal splined
Shaft dimension	Dia. 1.75 inch, 14T - Spec. Component
Shaft Key	n/a
Main port thread type	UN / UNF
Main port style	Sideport - staggered
Main port dimension	7/8 - 14 UNF-2B SAE O-Ring port
Drain Port Dimension	None
Brake Release Port Dimension	n/a
Painted	Yes
Paint information	Painted, Black
Special Features Assembly	Standard
Dust seal	Standard
Shaft Seal	NBR - Standard
Seal Kit	Z331-19
Front bearing type	Tapered roller bearing
Rear bearing type	Tapered roller bearing
Orbital gearwheel set	Standard
Check valve function	Yes
Hydraulic valve function	None
Sensor	None
Packaging	Single pack
Name Tag	Customized
Brand	Danfoss
Sub brand	Xcel
