Danfoss 629068

RCG 06 B2 30, RCG06B230

MPN: 629068
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 629068?

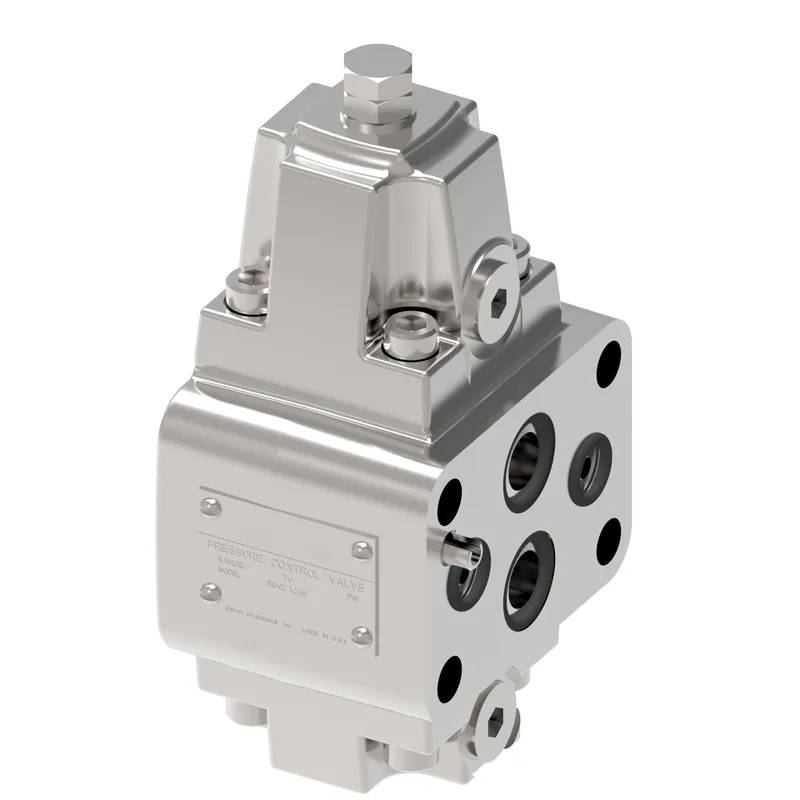

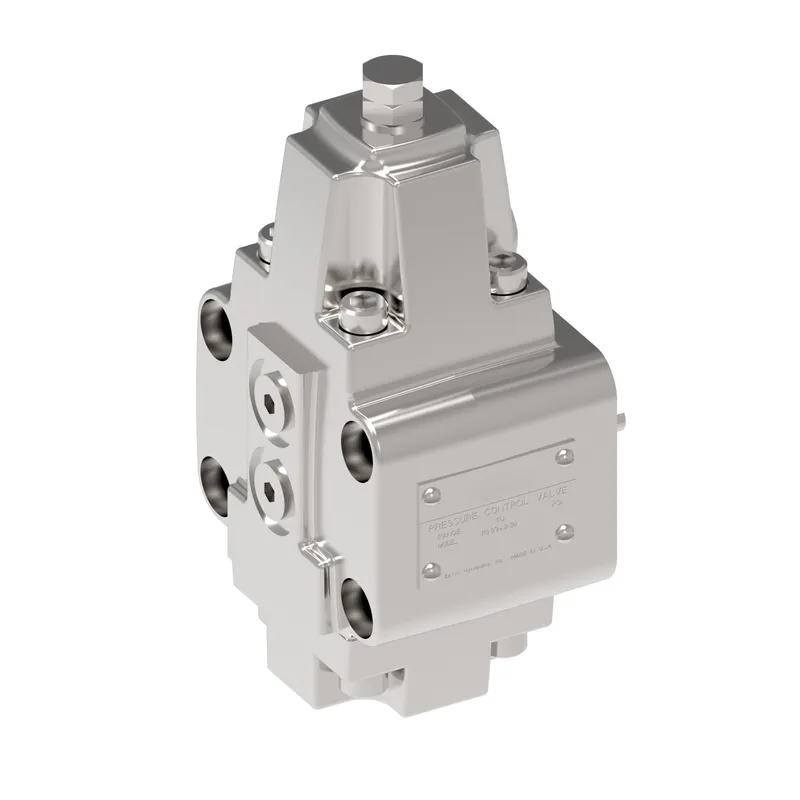

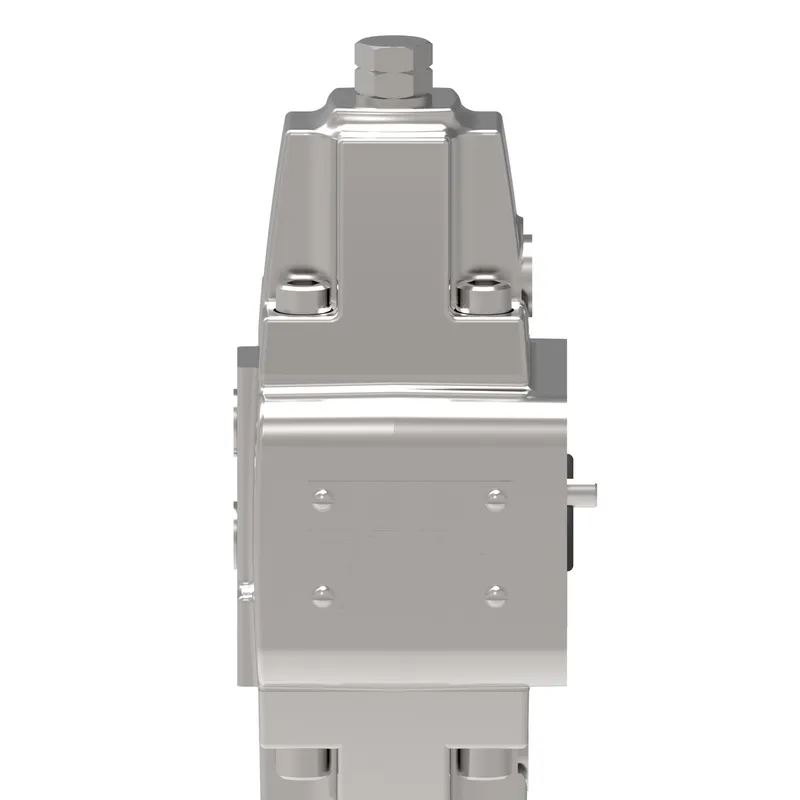

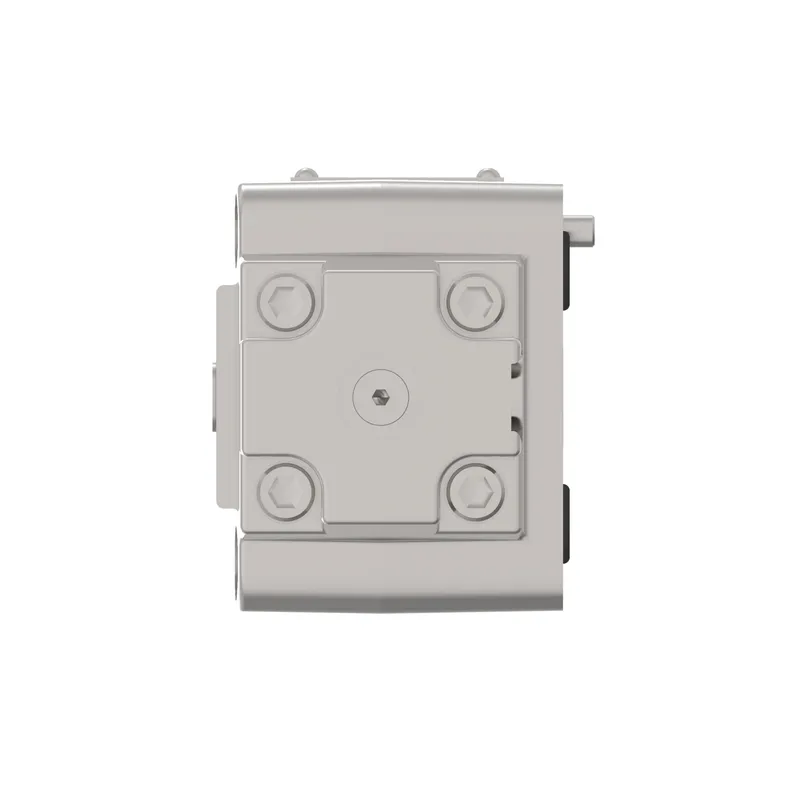

Danfoss RCG 06 B2 30, RCG06B230, manufacturer part number 629068. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pilot operated
Adjustment range	8.5-35 bar (125-500 psi)
Adjustment type	Screw with locknut
Brand	Vickers by Danfoss
Check valve	Yes
Design Series	30 Series
Drain	External
Electrical connection	None
Flow rate lpm	114.0
Flow rate USGPM	30.0
Fluid Cleanliness	19/17/14 Micron
Fluid compatibility	Petroleum oils
Hi-vent spring	No
Indicator Light	No
Maximum pressure BAR	140
Maximum pressure PSI	2000
Model Code 1	RCG06B230
Performance	Standard
Product height in	7.930
Product height mm	201.422
Product length in	3.600
Product length mm	91.440
Product width in	3.880
Product width mm	98.552
Seal material	Nitrile
Size	Size 06
Special feature	None
Stage	Two stage
Valve Mount Type	Subplate/manifold mounted
Valve type	Pressure control valve
Working temperature max C	70
Working temperature max F	158
Working temperature min C	-20
Working temperature min F	-4
