Danfoss 628AG00008A

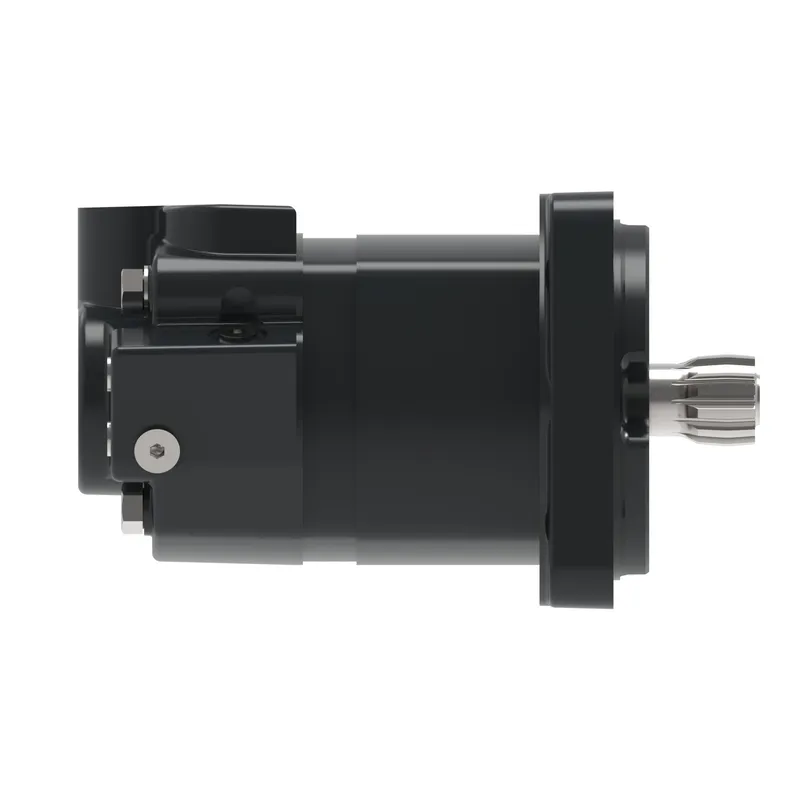

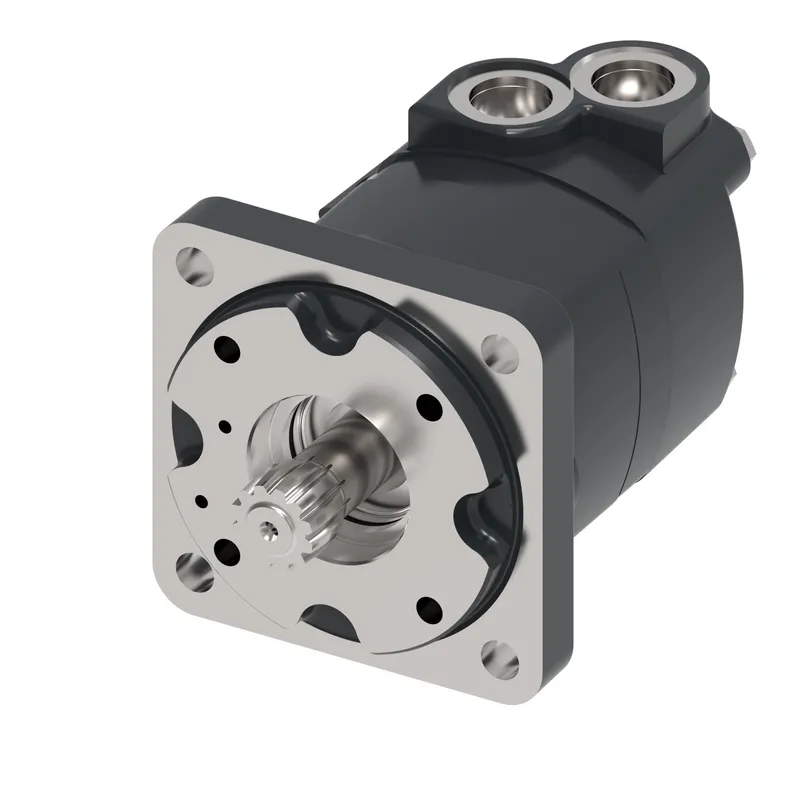

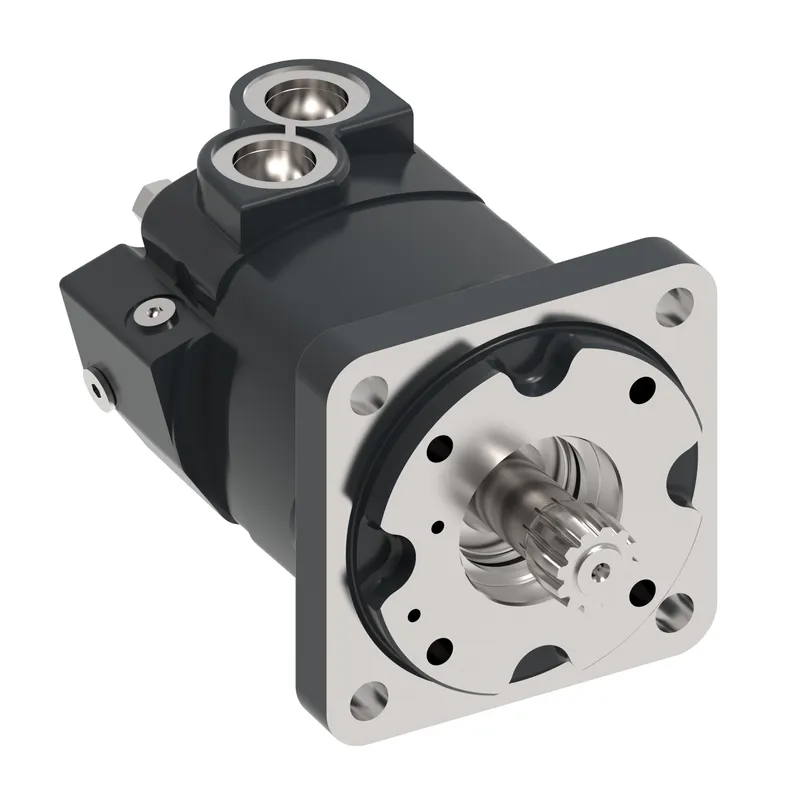

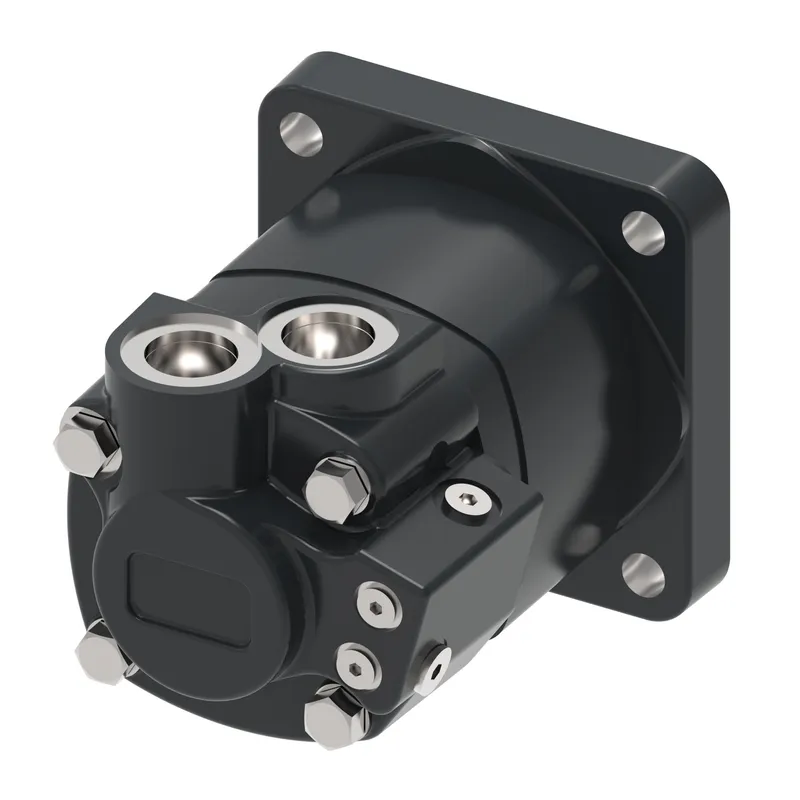

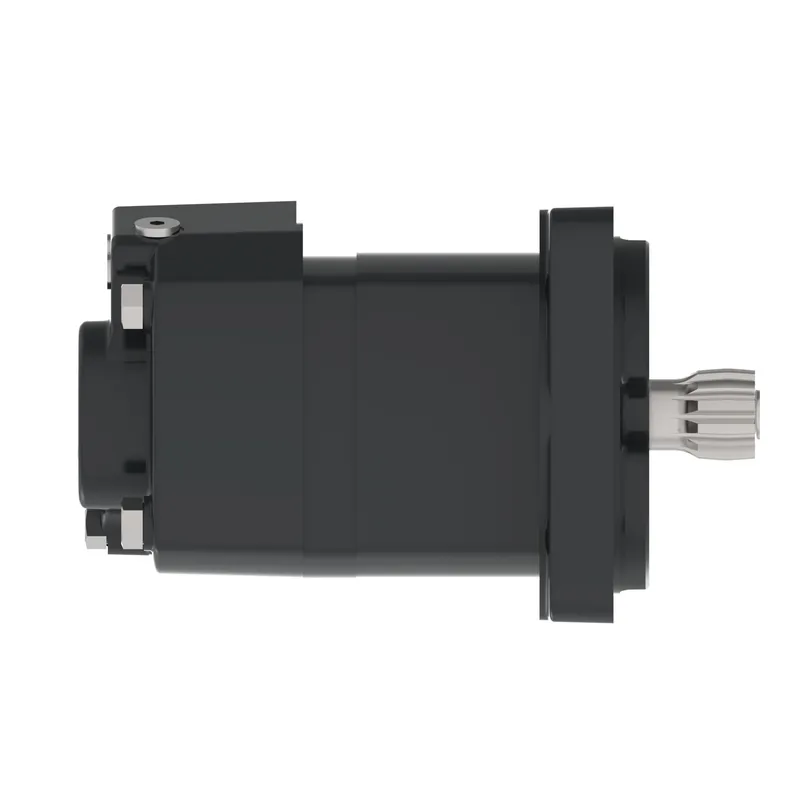

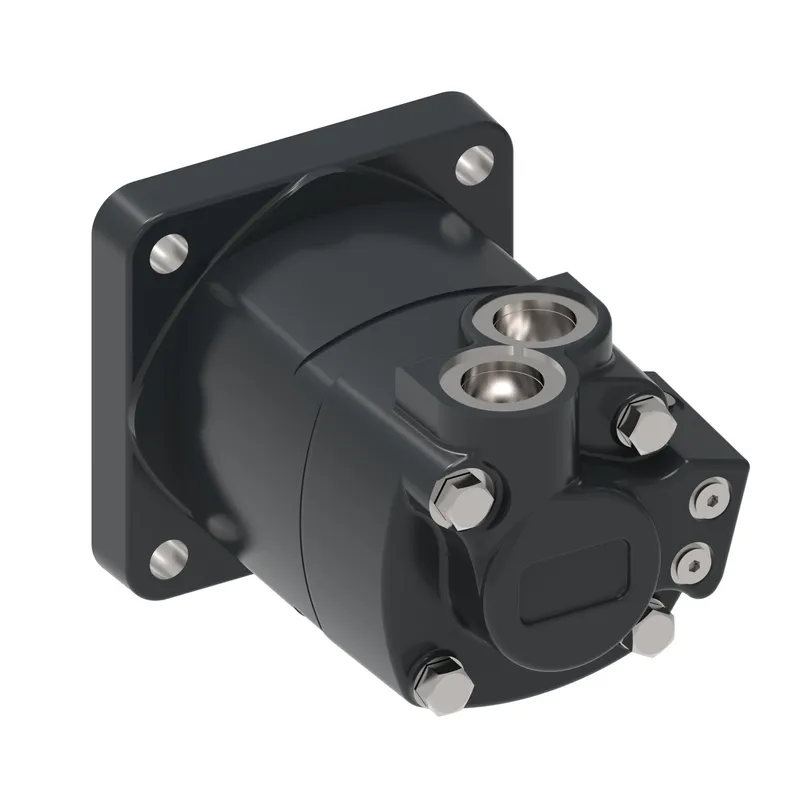

MOTOR-ORBITAL,XL4 SERIES 245 [15.03], MC4245AF07AB0400000000000AB00A

MPN: 628AG00008A
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 628AG00008A?

Danfoss MOTOR-ORBITAL,XL4 SERIES 245 [15.03], MC4245AF07AB0400000000000AB00A, manufacturer part number 628AG00008A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	MC4245AF07AB0400000000000AB00A
Motor Series	XL4 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor size	245
Geometric displacement [cm3/r [in3/r]]	245.7 [14.99]
Motor type	Short
Motor function	Standard
Mounting flange type	4 Bolt - Short
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	125.0 x 8.0, 160.0, 14.3 [4.92 x 0.31, 6.30, 0.56]
Shaft type	None
Shaft dimension	n/a
Shaft Key	n/a
Main port thread type	BSP
Main port style	Sideport - staggered
Main port dimension	G 3/4
Drain Port Dimension	G 1/4 - Spec. Component
Brake Release Port Dimension	n/a
Painted	Yes
Paint information	Painted, Black
Special features hardware	None
Special Features Assembly	Standard
Dust seal	n/a
Shaft Seal	n/a
Seal Kit	Z331-76
Front bearing type	n/a
Rear bearing type	n/a
Orbital gearwheel set	Standard
Check valve function	Yes
Hydraulic valve function	None
Sensor	None
Packaging	Single pack
Name Tag	Danfoss name tag
Design code	First (standard)
Accessories	None
Brand	Danfoss
Case flow options	G 1/4 BSP straight thread with check valve, optional G 1/4 BSP straight thread in mounting flange
Customer identification	None
Displacement	246.3 cm3/r [15.03 in3/r]
Geroler options	Standard
Low pressure relief	None
Mounting type	Bearingless, 4 bolt; 124.97 [4.920] pilot DIA. 14.27 [.532] DIA. holes on 159.99 [6.299] DIA. bolt circle
Output shaft type	None (bearingless) European spline
Paint packaging	Black
Port Type	STA G 3/4
Pressure flow option	None
Product	Motor
Seal options	Standard
Series	Jining 4000 series
Special assembly instructions	None
Sub brand	Xcel
