Danfoss 626AG00008A

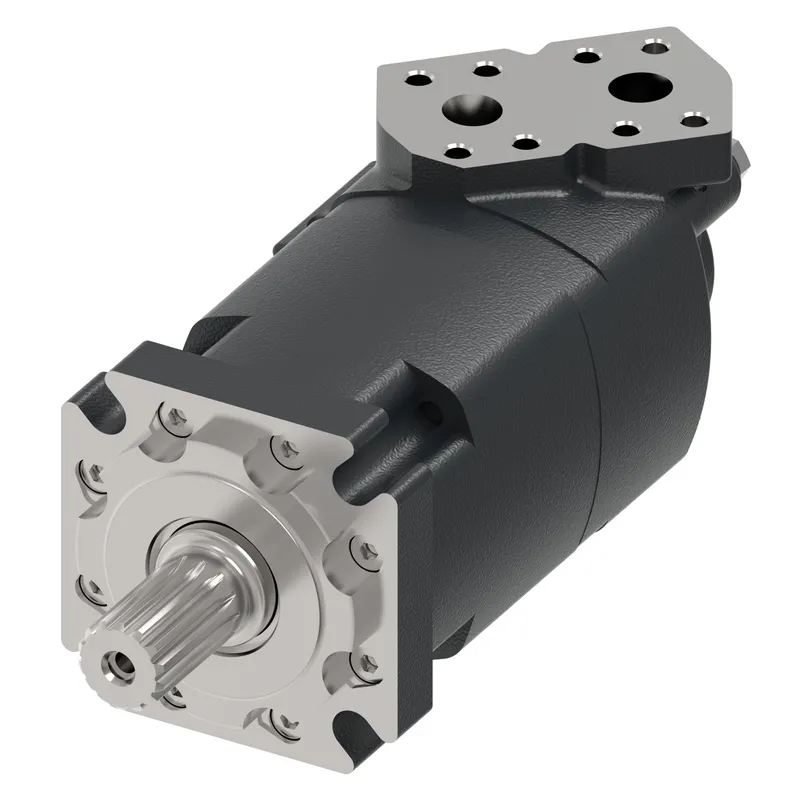

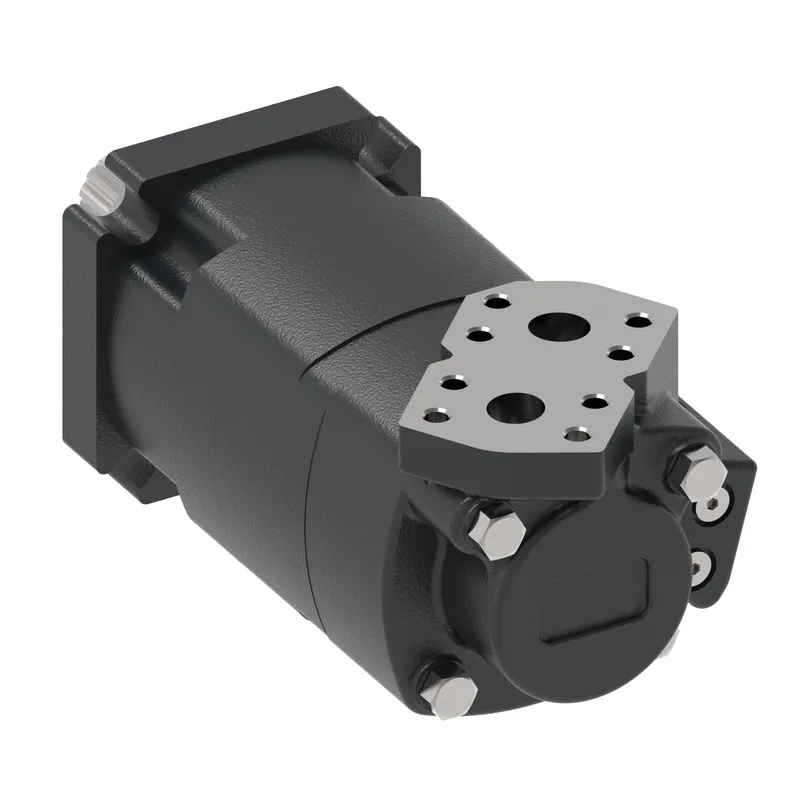

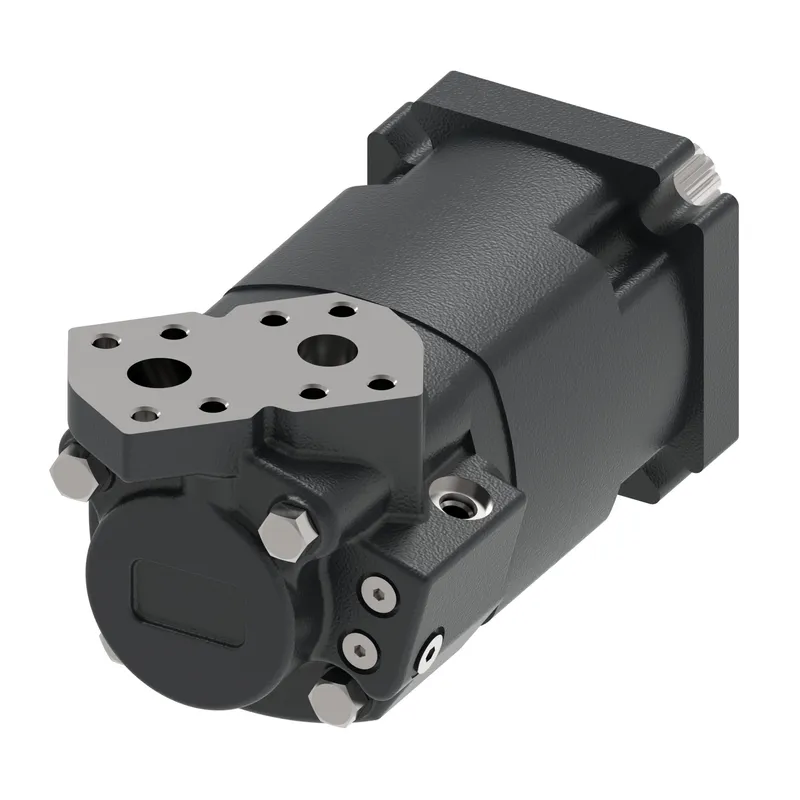

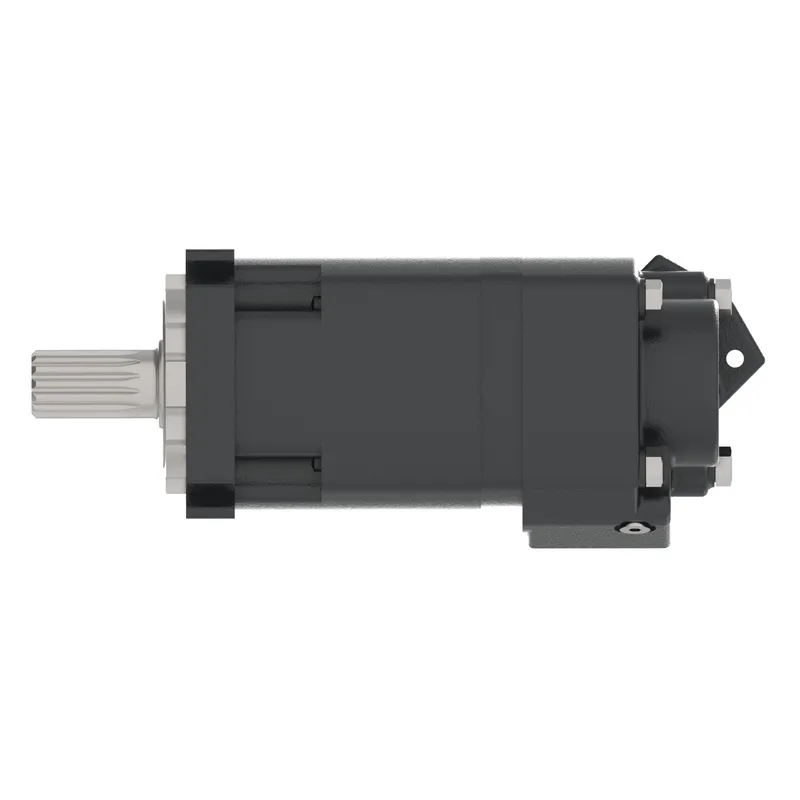

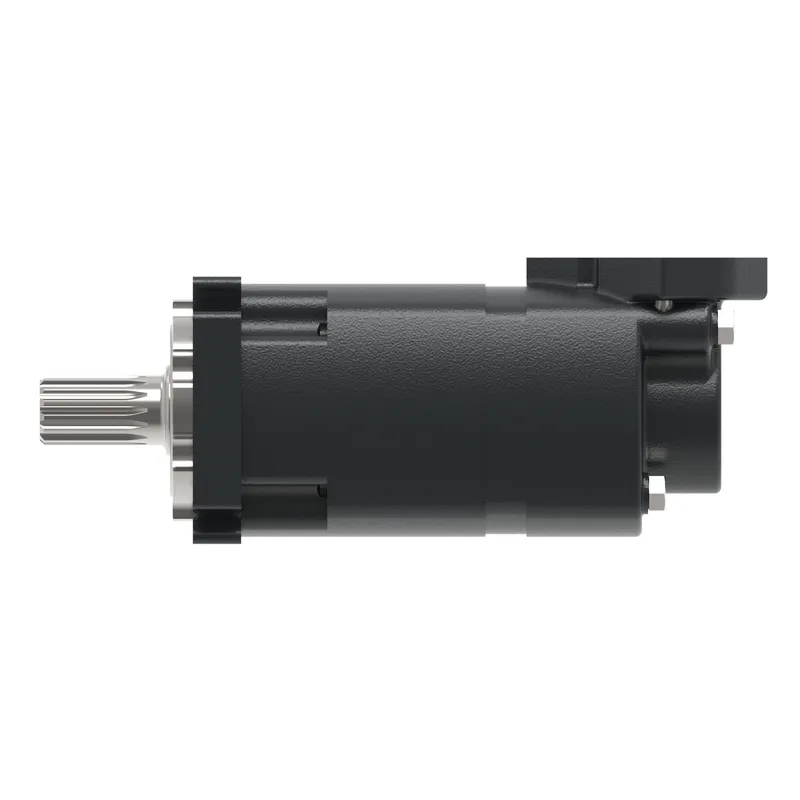

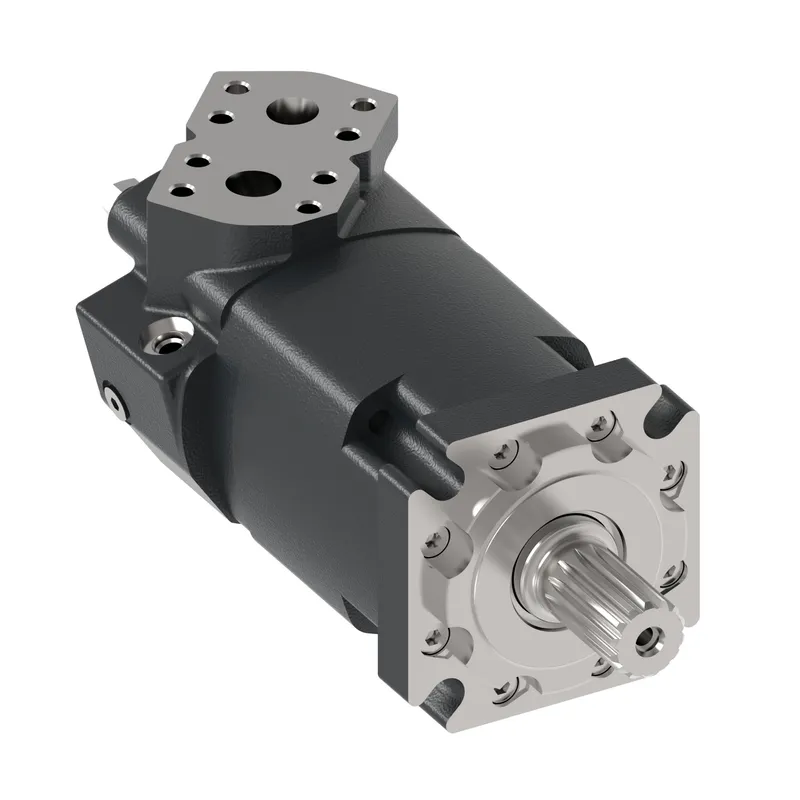

MOTOR-ORBITAL,XL4 SERIES 205 [12.54], MC4205AC03AB0200000000000AA00A

MPN: 626AG00008A
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 626AG00008A?

Danfoss MOTOR-ORBITAL,XL4 SERIES 205 [12.54], MC4205AC03AB0200000000000AA00A, manufacturer part number 626AG00008A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	MC4205AC03AB0200000000000AA00A
Motor Series	XL4 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor size	205
Geometric displacement [cm3/r [in3/r]]	204.7 [12.49]
Motor type	Standard
Motor function	Standard
Mounting flange type	4 Bolt - Square
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	127.0 x 12.5, 161.9, 14.3 [5.00 x 0.49, 6.38, 0.56] SAE C
Shaft type	Splined
Shaft dimension	Dia. 1 1/2 inch, 17T, 3/8 - 16 UNC-2B thread in shaft end
Shaft Key	n/a
Main port thread type	BSP
Main port style	Sideport - staggered
Main port dimension	G 3/4
Drain Port Dimension	G 1/4
Brake Release Port Dimension	n/a
Painted	Yes
Paint information	Painted, Blue
Special features hardware	None
Special Features Assembly	Standard
Dust seal	Standard
Shaft Seal	NBR - Standard
Seal Kit	Z331-32
Front bearing type	Tapered roller bearing
Rear bearing type	Tapered roller bearing
Orbital gearwheel set	Standard
Check valve function	Yes
Hydraulic valve function	None
Sensor	None
Packaging	Single pack
Name Tag	Danfoss name tag
Design code	First (standard)
Accessories	None
Brand	Danfoss
Case flow options	G 1/4 BSP straight thread with check valve
Customer identification	None
Displacement	205.5 cm3/r [12.54 in3/r]
Geroler options	Standard
Low pressure relief	None
Mounting type	Standard, 4 bolt: 127.00 [5.000] pilot DIA. 14.27 [.562] DIA. holes on 161.92[6.375] DIA. bolt circle. (SAE C)
Output shaft type	38.10 [1.500] DIA. flat root side fit, 17 tooth, 12/24 DP 30 DEG. involute spline, 38.1 [1.50] minimum full spline length, with.375-16 UNC-2B thread in end
Paint packaging	Blue
Port Type	STA G 3/4
Pressure flow option	None
Product	Motor
Seal options	Standard
Series	Jining 4000 series
Special assembly instructions	None
Sub brand	Xcel
