Danfoss 6200BVSL143

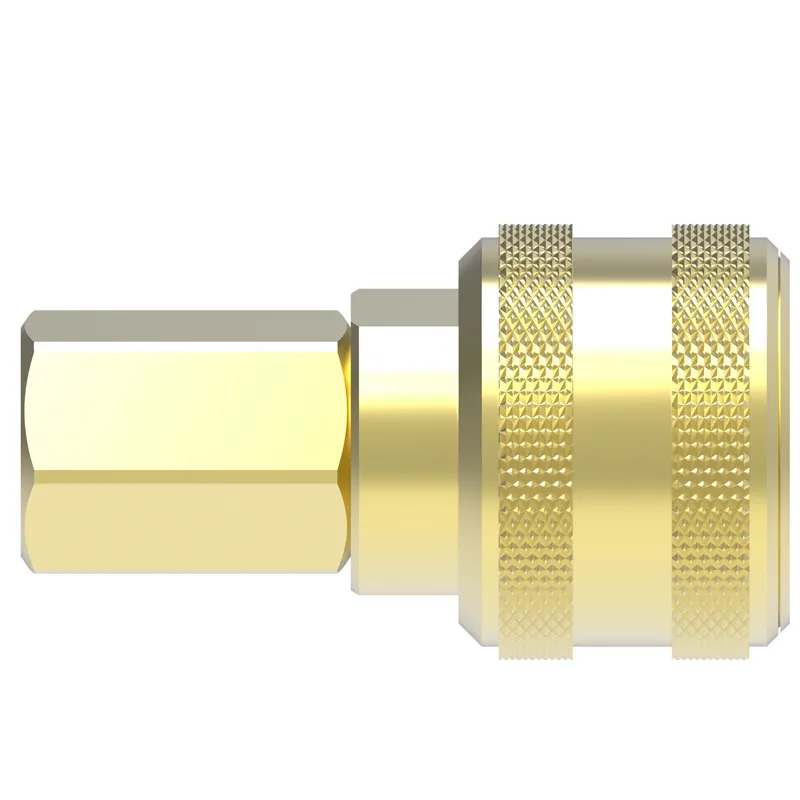

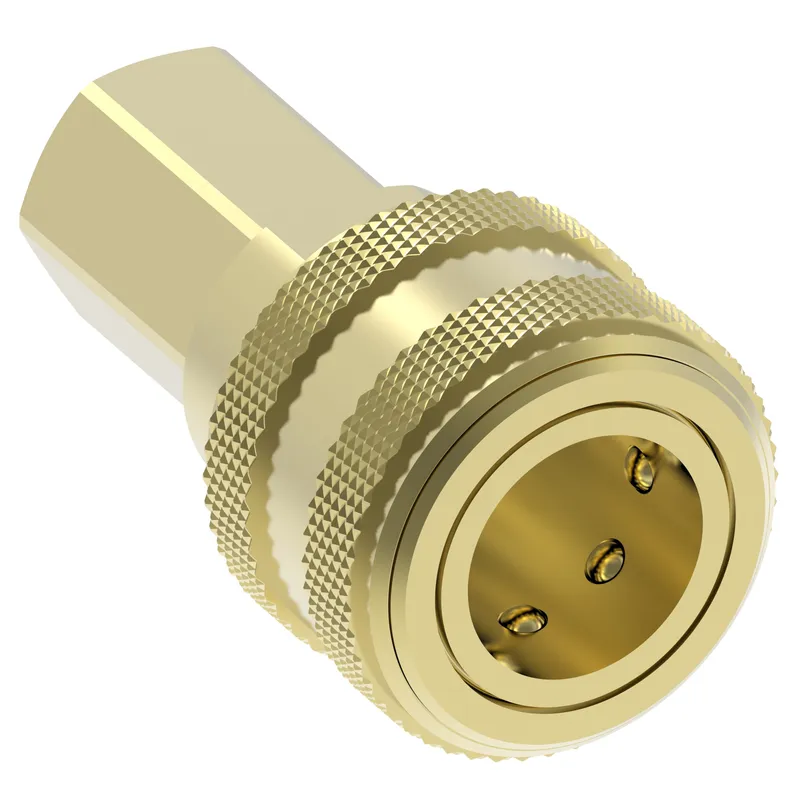

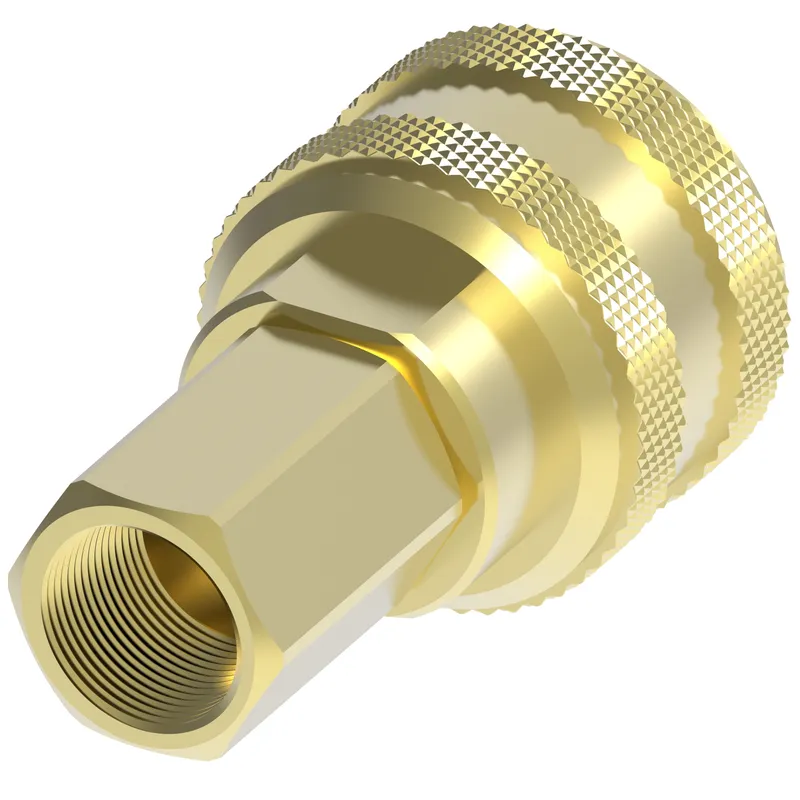

Cplng, 6000 SERIES Socket, Brass

MPN: 6200BVSL143
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 6200BVSL143?

Danfoss Cplng, 6000 SERIES Socket, Brass, manufacturer part number 6200BVSL143. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146167033
Angle shape	Straight
Body size	3/4
Brand	Danfoss
Burst pressure min bar	61
Burst pressure min psi	880
Connection style	Manual connect
End size 2	-8
Flow rate GPM	935.17
Flow rate LPM	3540.00
Fluid compatibility	Air, Gases and liquids
Hex size 1 IN	1.310
Hex size 1 MM	33.274
Item type	Female half
Latch type	Push/pull
Product material	Brass
Safety locking mechanism	Sleeve lock
Seal material	Fluorocarbon (FKM)
Sub brand	Hansen
Valve type	2 way
Working pressure max psi	220
Working pressure max BAR	15
Working temperature max C	200
Working temperature max F	392
Working temperature min C	-20
Working temperature min F	-4
