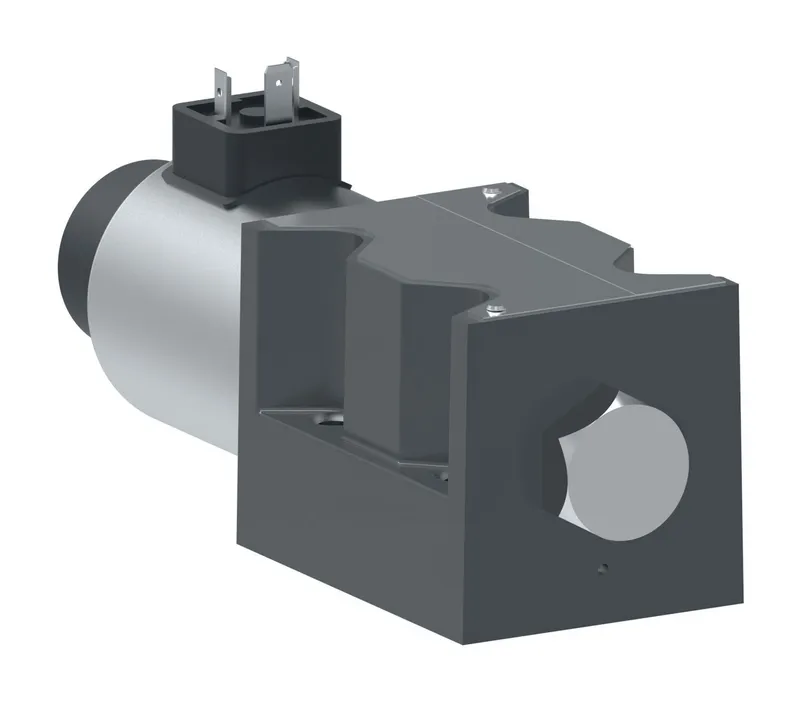

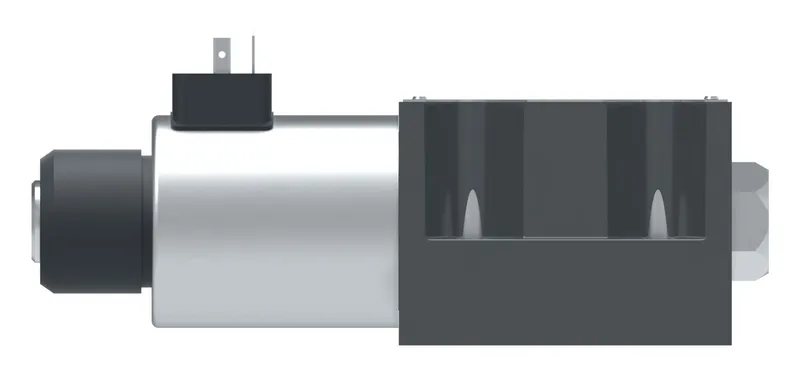

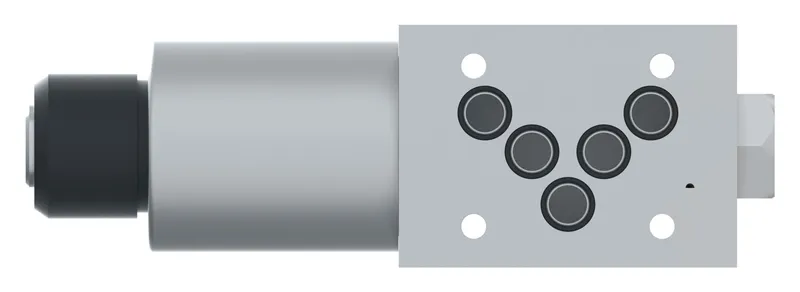

Danfoss 616942

DG4V 5 0B M U C6 20, DG4V50BMUC620

MPN: 616942
Category: Manifold directional control valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 616942?

Danfoss DG4V 5 0B M U C6 20, DG4V50BMUC620, manufacturer part number 616942. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid operated
Brand	Vickers by Danfoss
Coil Rating	220 VAC 50Hz
Design Series	20 Series
Electrical Connection	ISO 4400 (Din 43650) connector
Energ Time	30-40 ms
Flow rate upto GPM	32.0
Flow rate upto LPM	120.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Indicator Light	No
Interface	ISO4401-05/NFPA D05
Manual override	Plain
Model Code 1	DG4V50BMUC620
Performance	High performance
Power Consumption	105 VA
Pressure rating BAR	315
Pressure rating PSI	4500
Product height in	4.530
Product length in	7.170
Product length mm	182.118
Product width in	2.800
Product width mm	71.12
Seal type	WATER GLYCOL
Solenoid Energising ID	Standard as per ANSI B93 9
Special features	None
Spool Position Monitor	No
Spool Type	Spool 0
Spring Arrangement	Spring offset end to centre
Stage	Single stage
Surge Suppr Damper	No
Tank port rating BAR	120
Tank port rating PSI	1750
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	50
Working temp max F	122
Working temp min C	-20
Working temp min F	-4
