Danfoss 615026

MPN: 615026
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

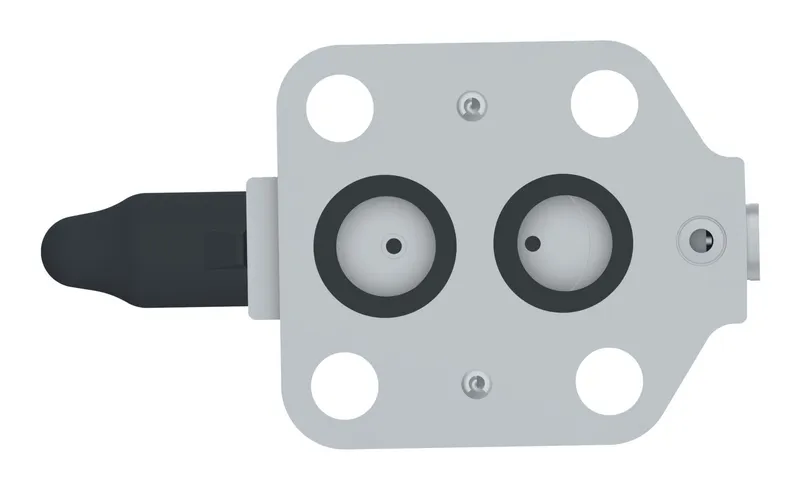

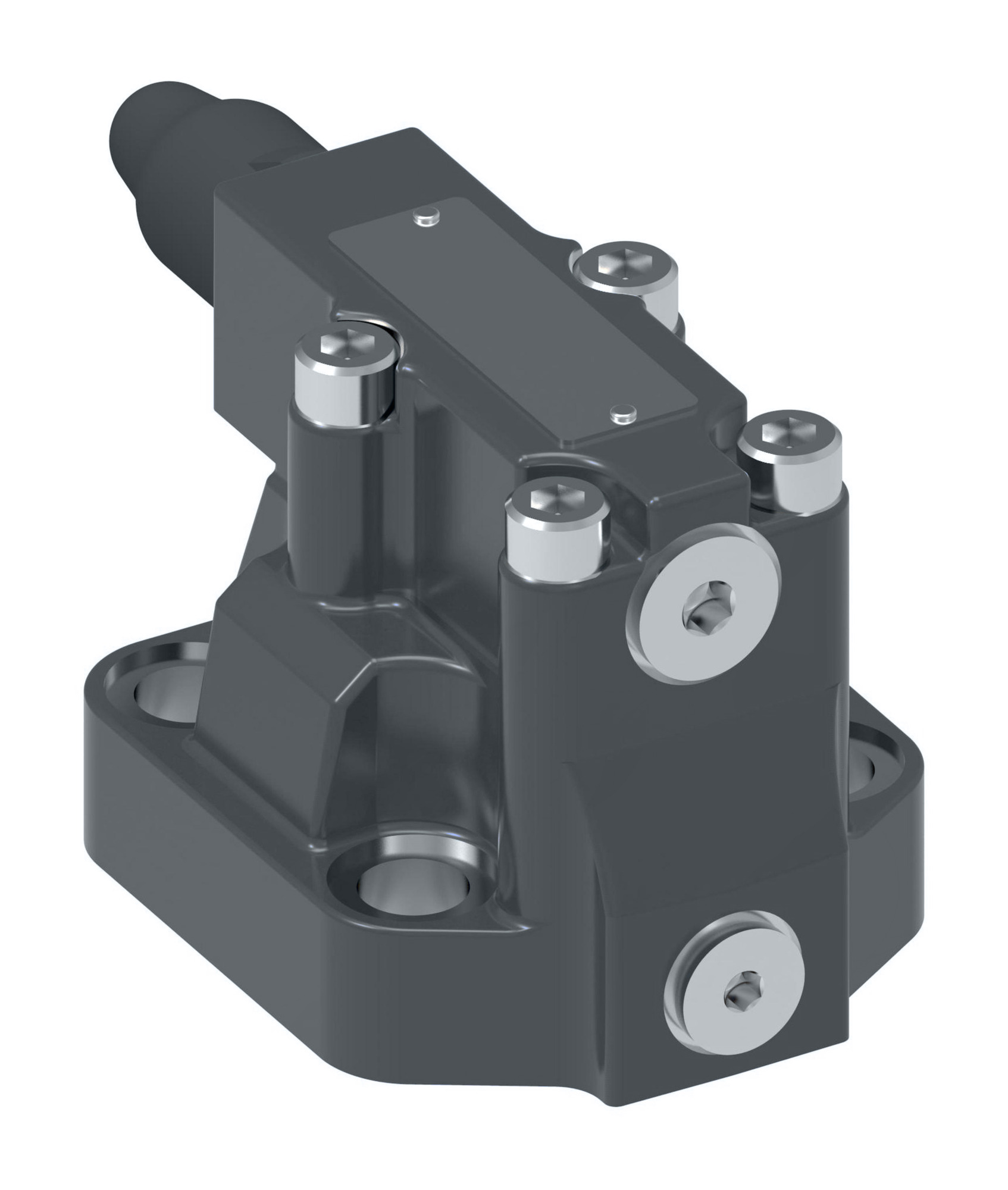

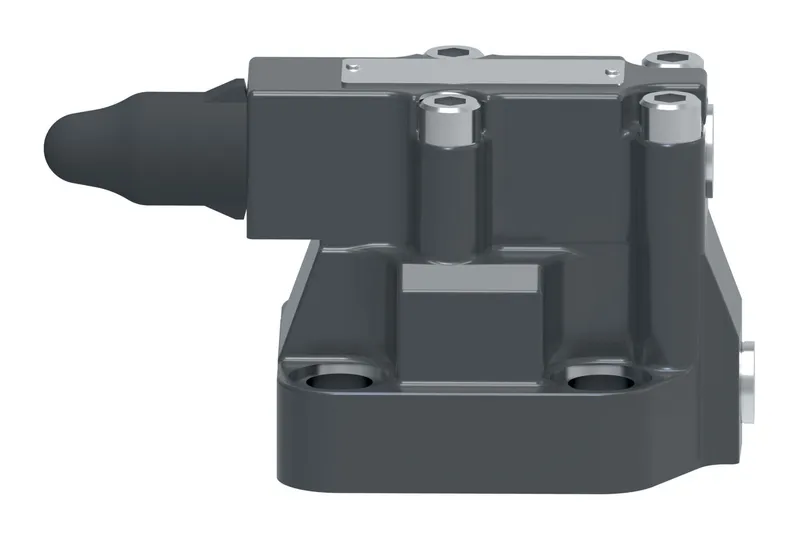

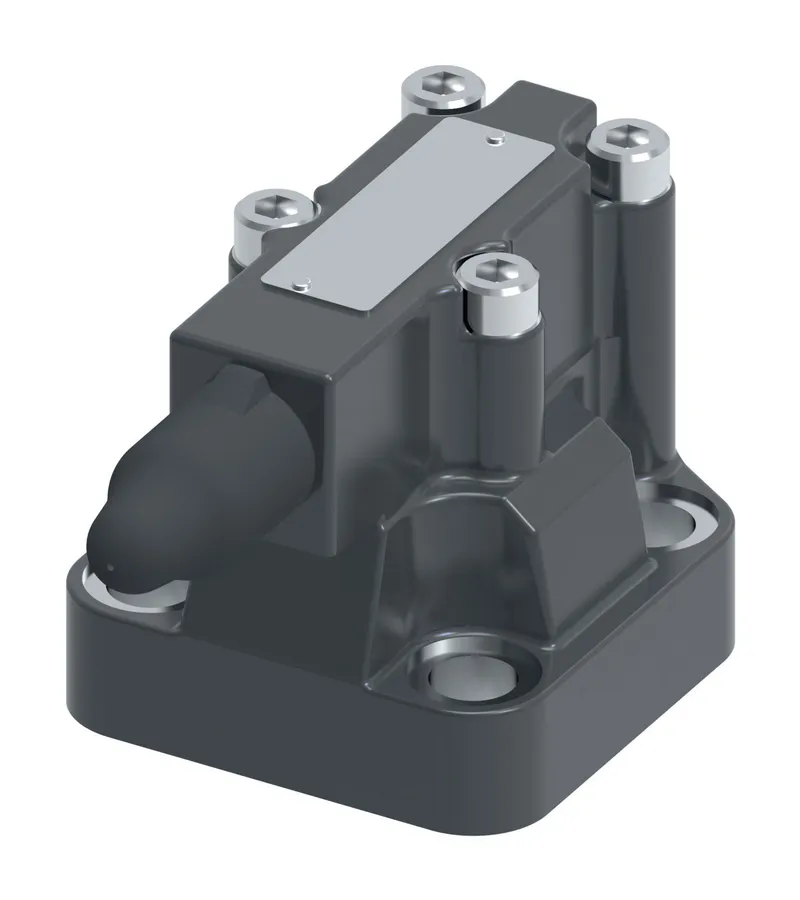

What is the Danfoss 615026?

Danfoss CG2V 6GW 10, CG2V6GW10, manufacturer part number 615026. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment range	3-350 bar (44-5000 psi)
Adjustment type	Screw with locknut
Brand	Vickers by Danfoss
Design Series	10 Series
Flow rate lpm	400.0
Flow rate USGPM	106.0
Hi-vent spring	Yes
Indicator Light	No
Interface	ISO6264 AR-06-2-A
Maximum pressure BAR	350
Maximum pressure PSI	5000
Model Code 1	CG2V6GW10
Product height in	4.800
Product height mm	121.920
Product length in	8.980
Product length mm	228.092
Product width in	3.230
Product width mm	82.042
Size	Size 02
Stage	Two stage
Valve Mount Type	Subplate mounted
Valve type	Relief valve

615026: frequently asked questions

When can 615026 be shipped?

615026 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 615026 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 615026 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 615026, subject to availability and destination.
