Danfoss 608-7305

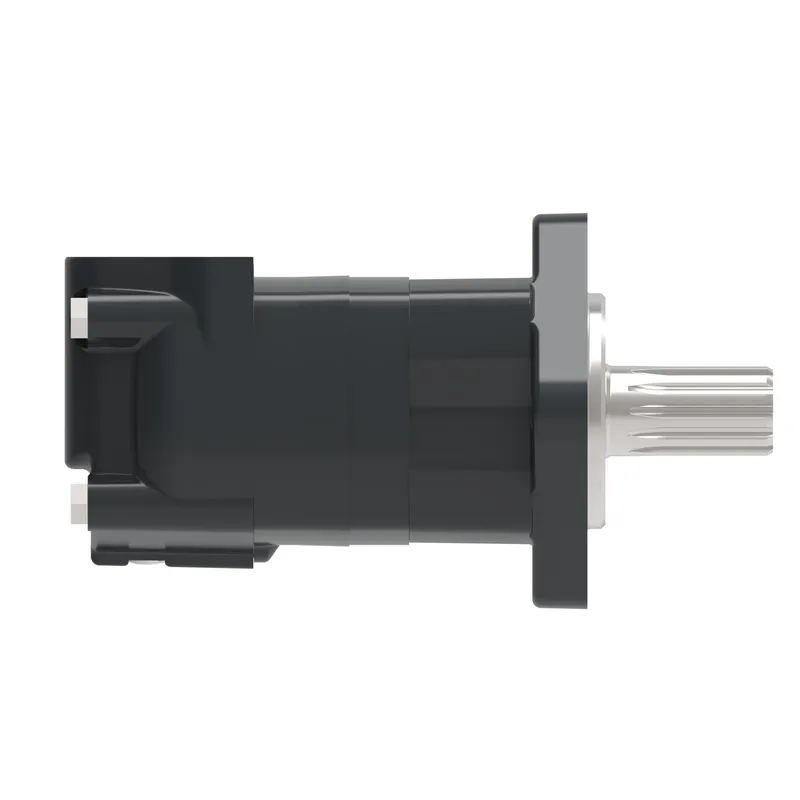

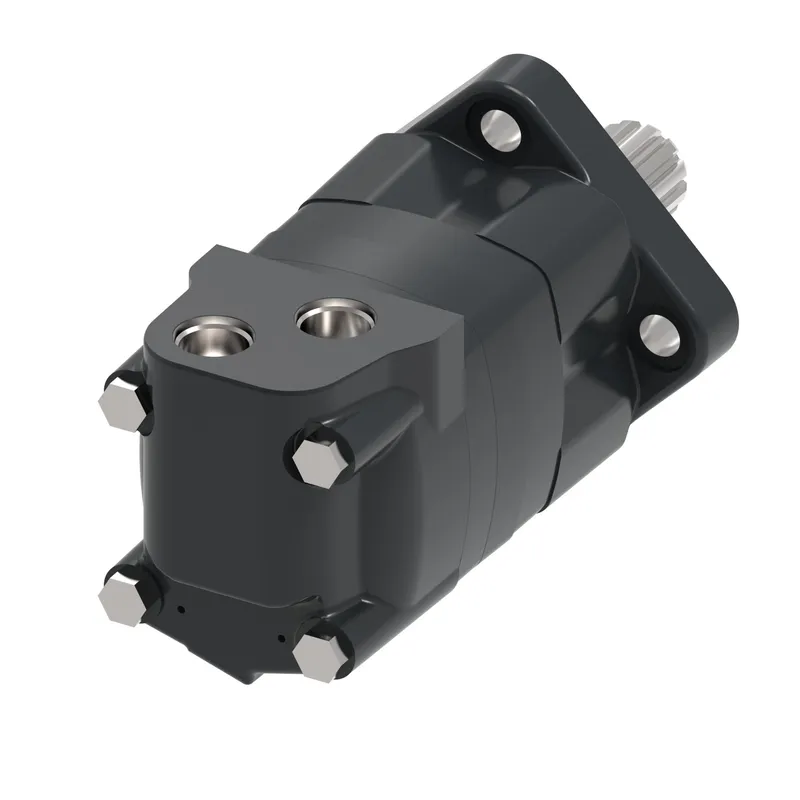

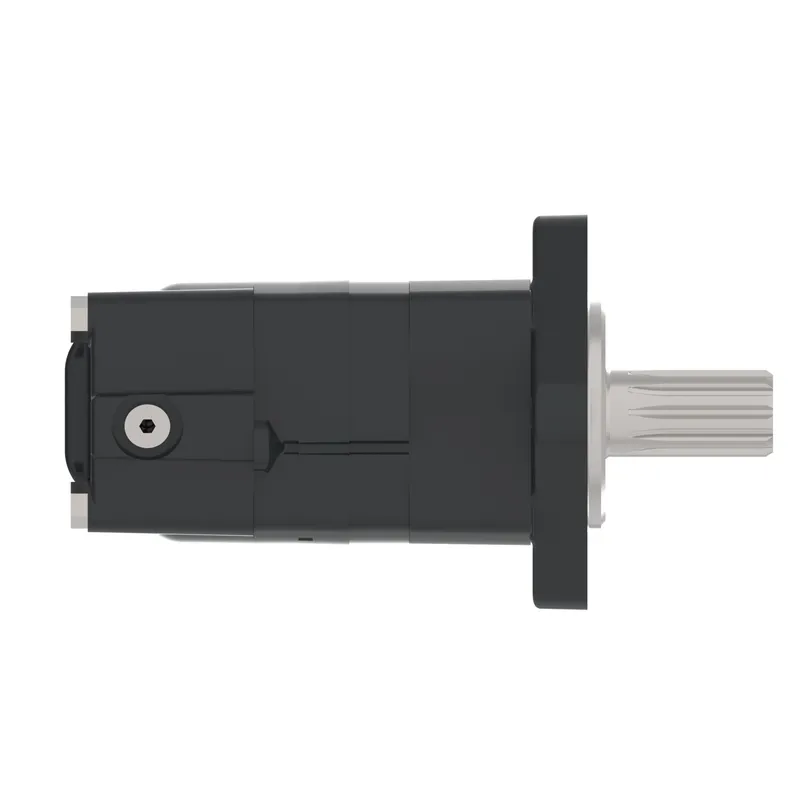

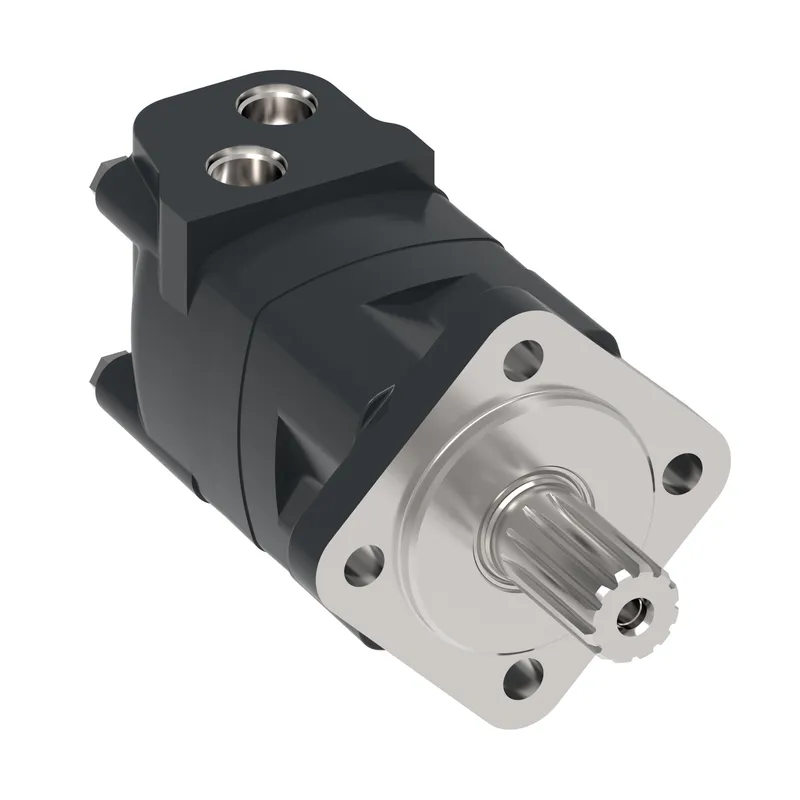

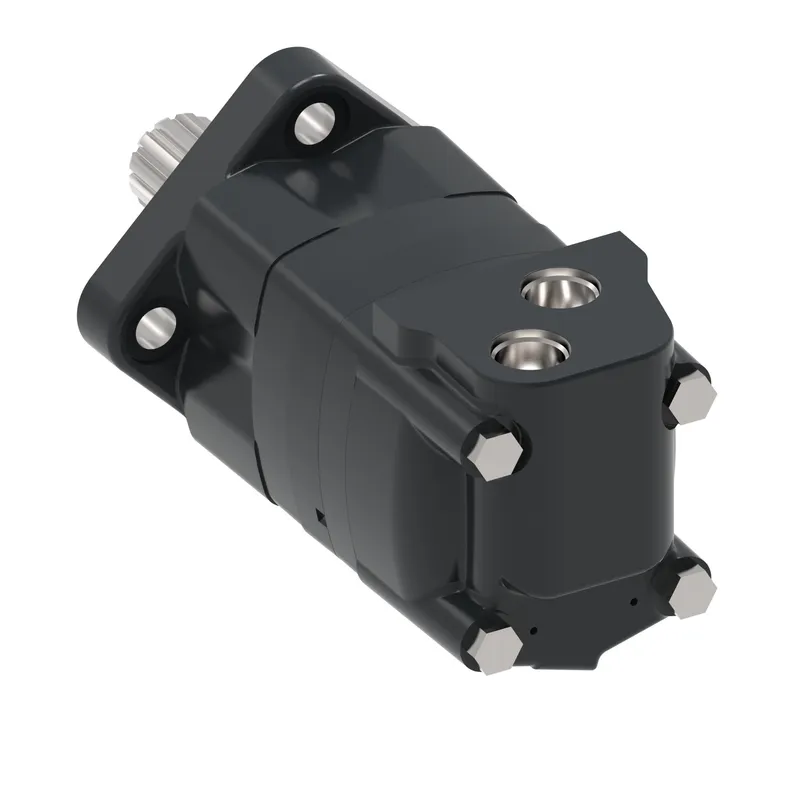

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AH16AG0000010000800AAAAB

MPN: 608-7305
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 608-7305?

Danfoss MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AH16AG0000010000800AAAAB, manufacturer part number 608-7305. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	MC2195AH16AG0000010000800AAAAB
Motor Series	XL2 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor size	195
Geometric displacement [cm3/r [in3/r]]	194.5 [11.87]
Motor type	Standard
Motor function	Noise optimized
Mounting flange type	4 Bolt - Square
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	82.6 x 6.3, 106.4, 13.6 [3.25 x 0.25, 4.19, 0.54]
Shaft type	Straight
Shaft dimension	Dia. 32 mm, M8 x 1.25-6H thread in shaft end
Shaft Key	Rectangular key, 10 x 8 x 45 mm
Main port thread type	BSP
Main port style	Sideport - staggered
Main port dimension	G 1/2
Drain Port Dimension	None
Brake Release Port Dimension	n/a
Painted	Yes
Paint information	Painted, Blue
Special Features Assembly	Standard
Dust seal	Standard
Shaft Seal	NBR - Standard
Seal Kit	Z331-02
Front bearing type	Tapered roller bearing
Rear bearing type	Tapered roller bearing
Orbital gearwheel set	Standard
Check valve function	Yes
Hydraulic valve function	None
Sensor	None
Packaging	Single pack
Name Tag	Danfoss name tag
Brand	Danfoss
Sub brand	Xcel
