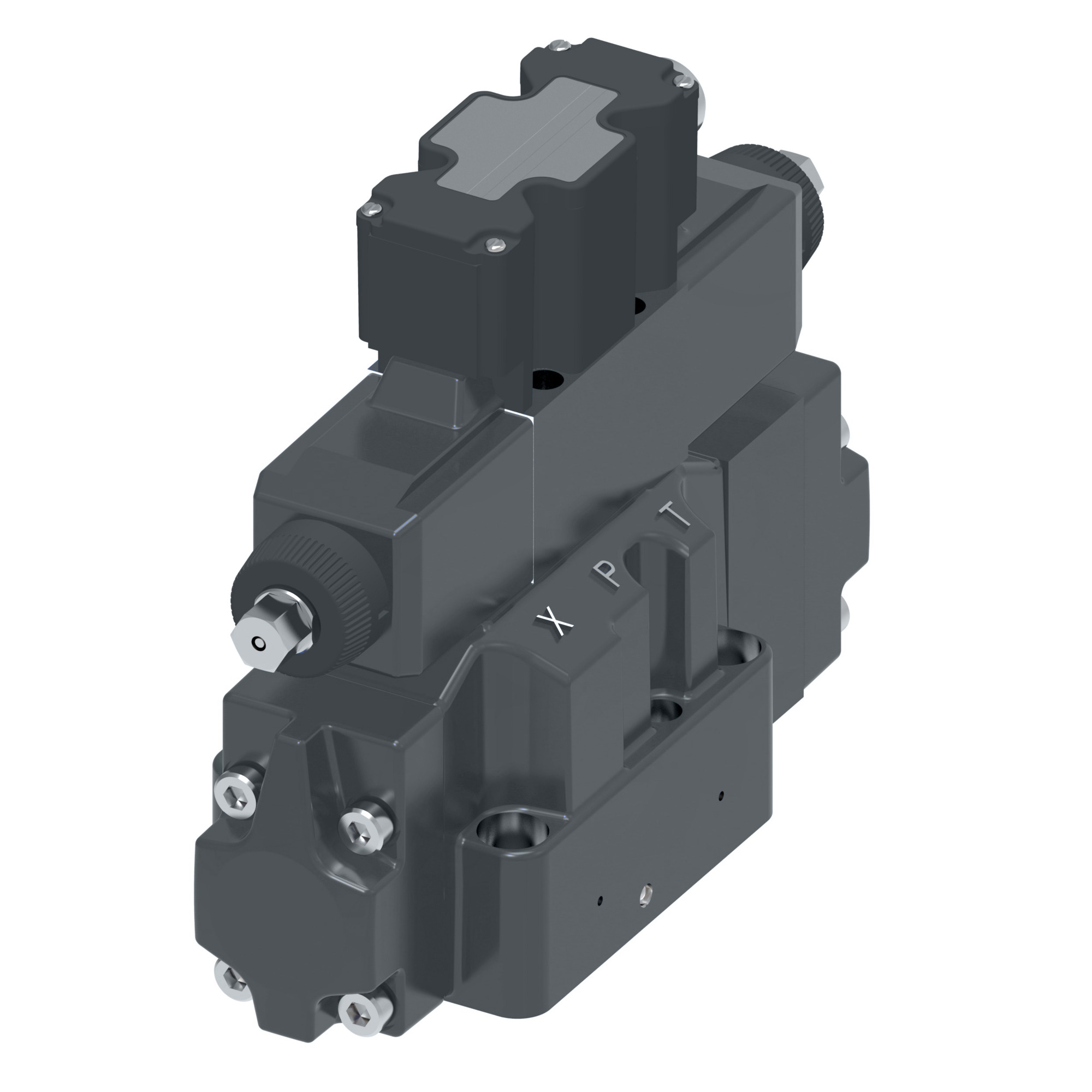

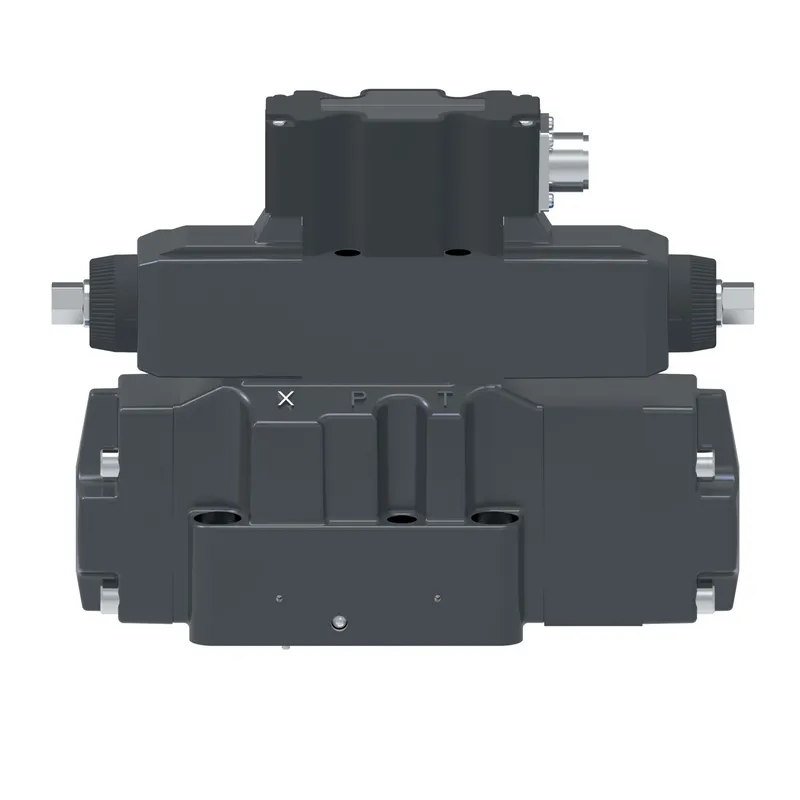

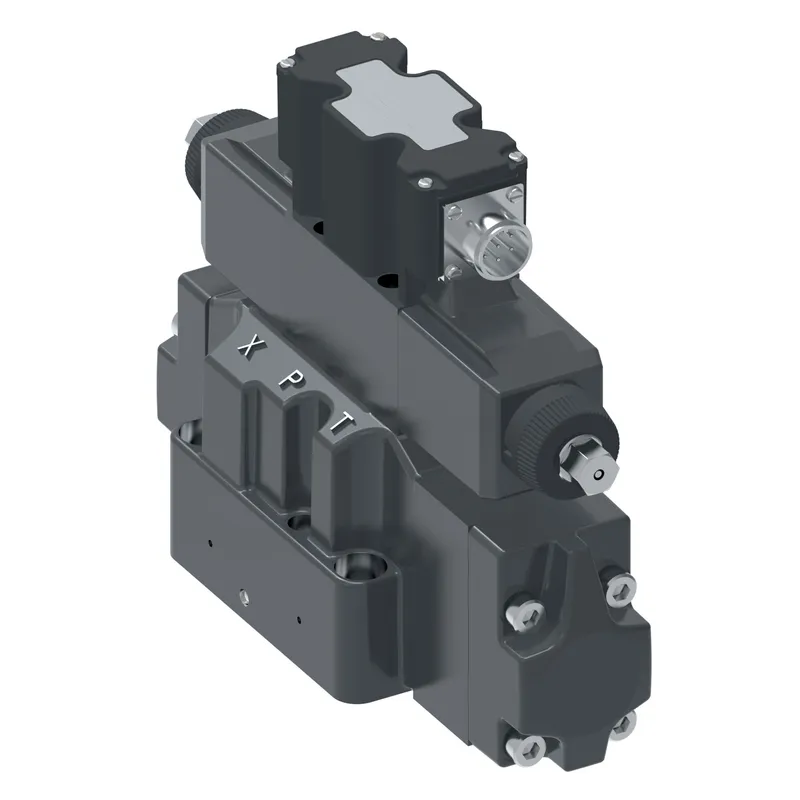

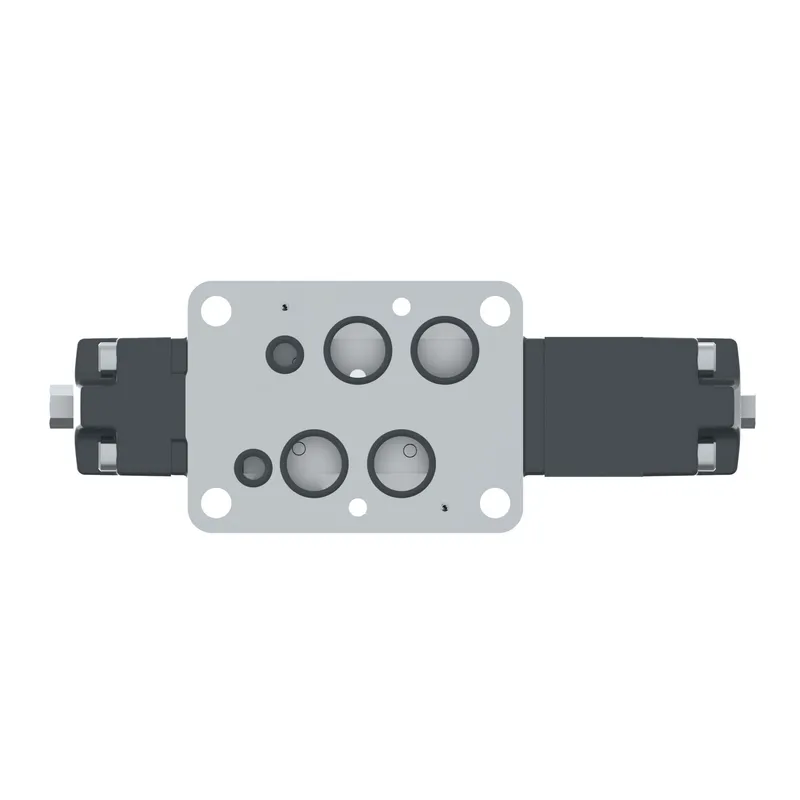

Danfoss 6050683-001

KBDG5V-7-2C230N-X-T-M2-PC7-H1-20-EN162, KBDG5V72C230NXTM2PC7H120EN162

MPN: 6050683-001
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 6050683-001?

Danfoss KBDG5V-7-2C230N-X-T-M2-PC7-H1-20-EN162, KBDG5V72C230NXTM2PC7H120EN162, manufacturer part number 6050683-001. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A Port flow LPM	230.00
A Port flow USGPM	61.30
Actuation Type	Solenoid controlled pilot operated
B Port flow LPM	230.00
B Port flow USGPM	61.30
Brand	Vickers by Danfoss
Build orientation	Standard as per ANSI B93 9
Build type	Spring centered
Coil voltage	24 Volt DC
Command input	CAN feedback, CAN monitor
Communication protocol	CANopen
Current	1.2 amp
Design Series	20 Series
Electrical Connection	Electrical (PC7) 7 pin connector without plug
Feedback sensor	No
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-07/NFPA D07/CETOP 7/NG16
Manual override	Plain
Maximum pressure BAR	200
Maximum pressure PSI	2900
Metering	Meter in / meter out
Model Code 1	KBDG5V72C230NXTM2PC7H120EN162
On board electronics	Yes
Performance	Standard
Pilot drain	Internal
Pilot supply	Internal
Pressure drop rated flow BAR	5
Pressure drop rated flow PSI	72
Product width in	3.650
Product width mm	92.71
ProFX compatible	No
Reducer module	Yes
Reverse flow check	No
Seal type	Viton
Special features	CANOPEN communication amp
Spool Type	ISO4401-10/NFPA D10/CETOP 10/NG32
Stage	Two stage
Symmetric flow	Yes
Tank port rating BAR	350
Tank port rating PSI	5000
Valve Mount Type	Subplate
Valve type	Proportional directional
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
