What is the Danfoss 6047318-001?

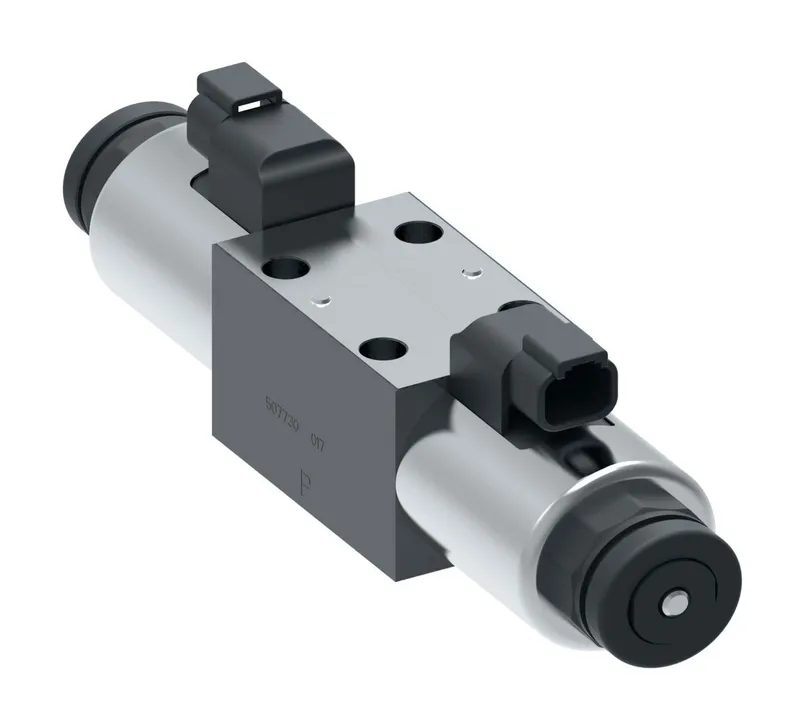

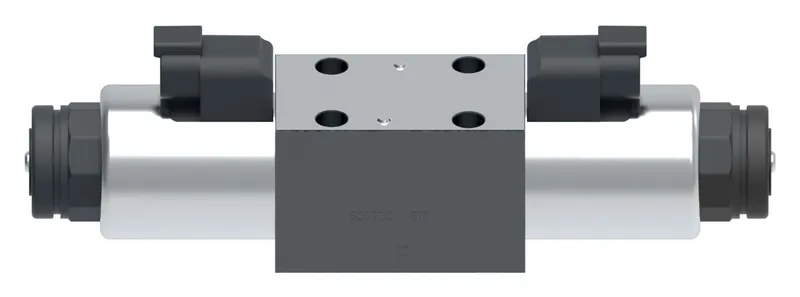

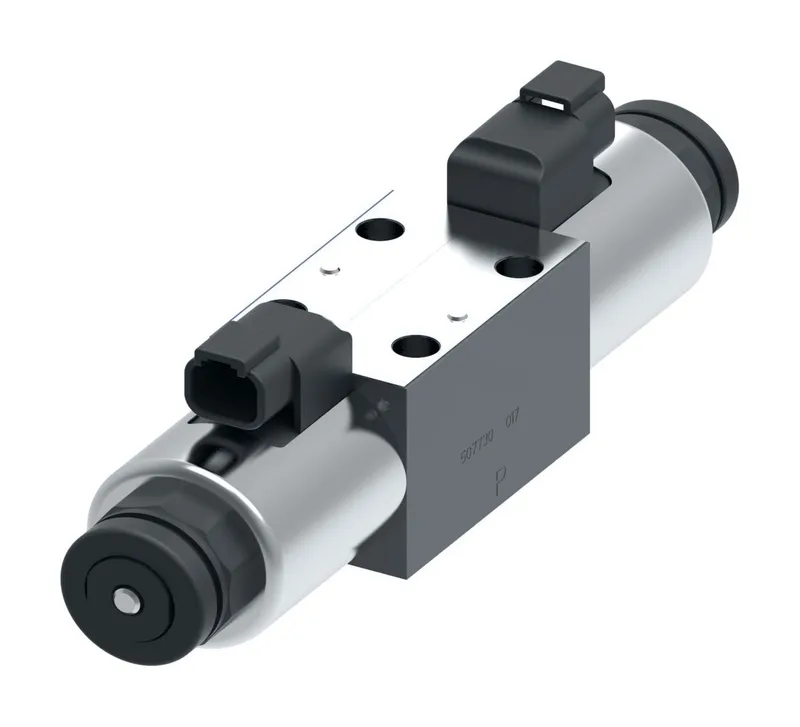

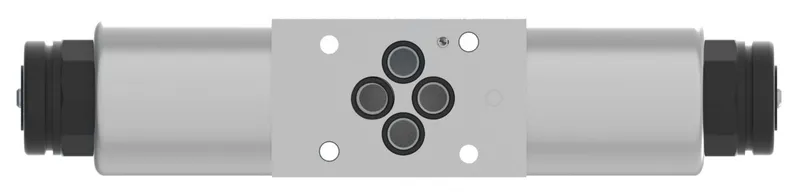

Danfoss DG4V-3M-0C-VM-KUP15-H7-66-EN194, DG4V3M0CVMKUP15H766EN194, manufacturer part number 6047318-001. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeSolenoid operated
BrandVickers by Danfoss
Coil Rating24 VDC
Design Series66 Series
Electrical ConnectionDeutsch connector, ZN-NI coating
Energ Time60-40 ms
Flow rate upto GPM21.0
Flow rate upto LPM80.0
Fluid Cleanliness19/17/14 micron
Fluid compatibilityPetroleum oils
Indicator LightNo
InterfaceISO4401-03
Manual overridePlain
Model Code 1DG4V3M0CVMKUP15H766EN194
PerformanceHigh performance
Power Consumption30 watt
Pressure rating BAR350
Pressure rating PSI5000
Product height in2.690
Product length in8.740
Product length mm221.996
Product width in1.860
Product width mm47.244
Seal typeWATER GLYCOL
Solenoid Energising IDSol A port A/Sol B port B
Special features480 hours corrosion protection
Spool Position MonitorNo
Spool TypeSpool 0
Spring ArrangementSpring centred
StageSingle stage
Surge Suppr DamperNo
Tank port rating BAR210
Tank port rating PSI3000
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C70
Working temp max F158
Working temp min C-20
Working temp min F-4
