Danfoss 6046751-001

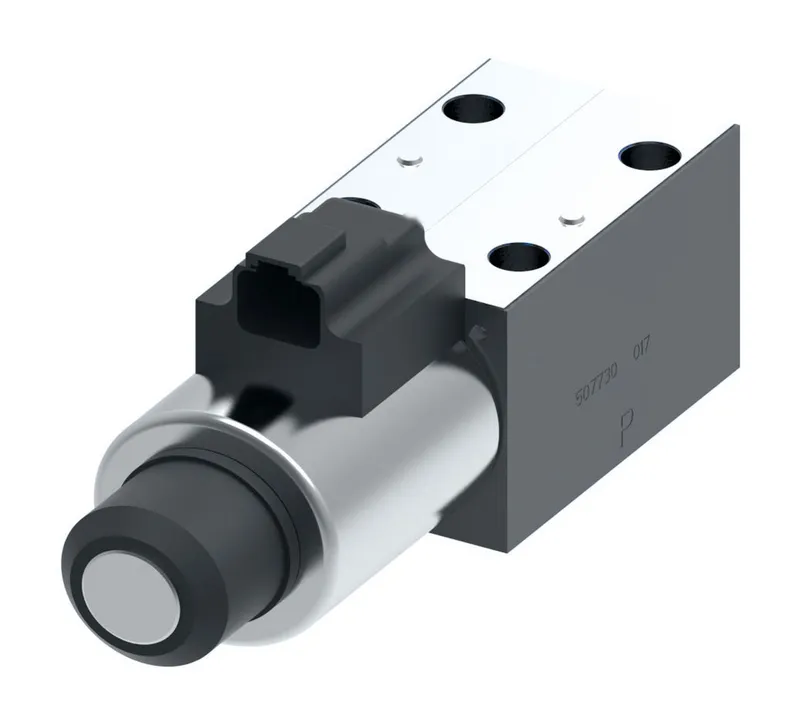

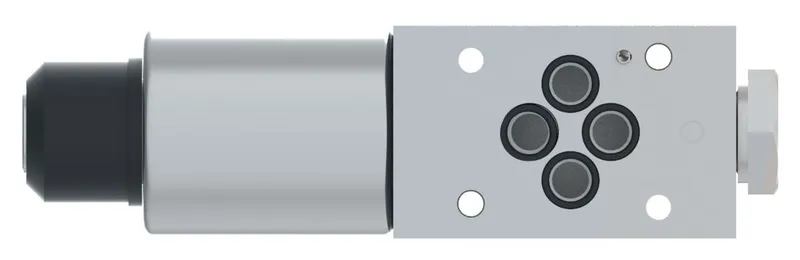

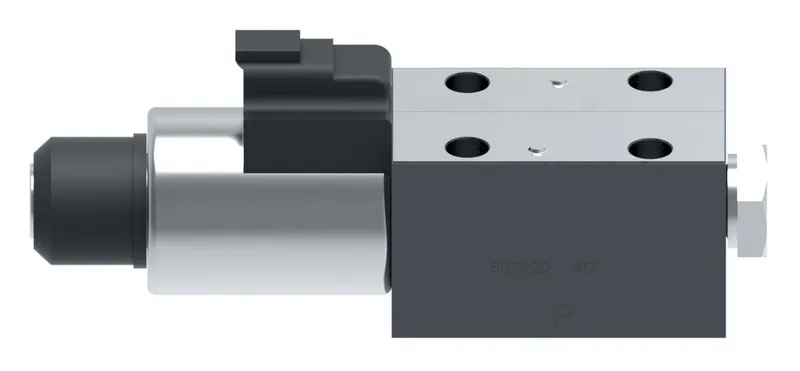

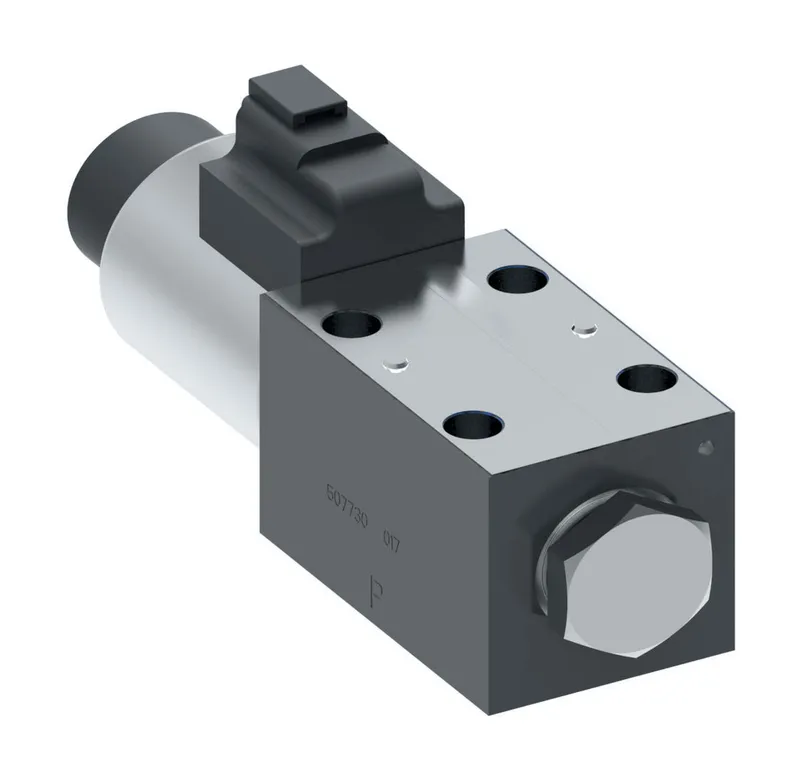

DG4V-3M-2BL-M-KUP15-H7-66, DG4V3M2BLMKUP15H766

MPN: 6046751-001
Category: Manifold directional control valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 6046751-001?

Danfoss DG4V-3M-2BL-M-KUP15-H7-66, DG4V3M2BLMKUP15H766, manufacturer part number 6046751-001. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid operated
Brand	Vickers by Danfoss
Coil Rating	24 VDC
Design Series	66 Series
Electrical Connection	Deutsch connector, ZN-NI coating
Energ Time	60-40 ms
Flow rate upto GPM	21.0
Flow rate upto LPM	80.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Indicator Light	No
Interface	ISO4401-03
Manual override	Plain
Model Code 1	DG4V3M2BLMKUP15H766
Performance	High performance
Power Consumption	30 watt
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	2.690
Product length in	4.950
Product length mm	125.730
Product width in	1.860
Product width mm	47.244
Seal type	WATER GLYCOL
Solenoid Energising ID	Standard as per ANSI B93 9
Special features	480 hours corrosion protection
Spool Position Monitor	No
Spool Type	Spool 2
Spring Arrangement	Spring offset end to centre LH
Stage	Single stage
Surge Suppr Damper	No
Tank port rating BAR	210
Tank port rating PSI	3000
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
