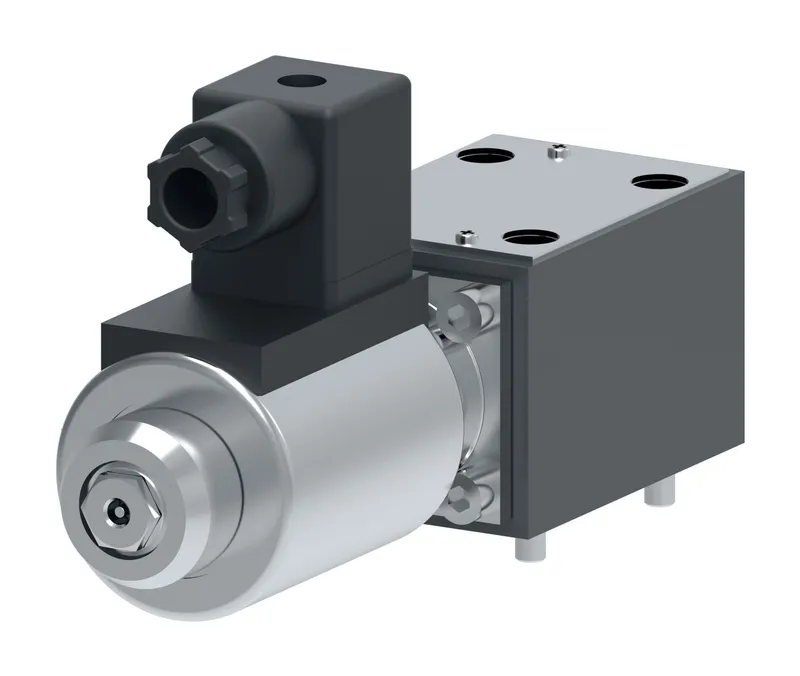

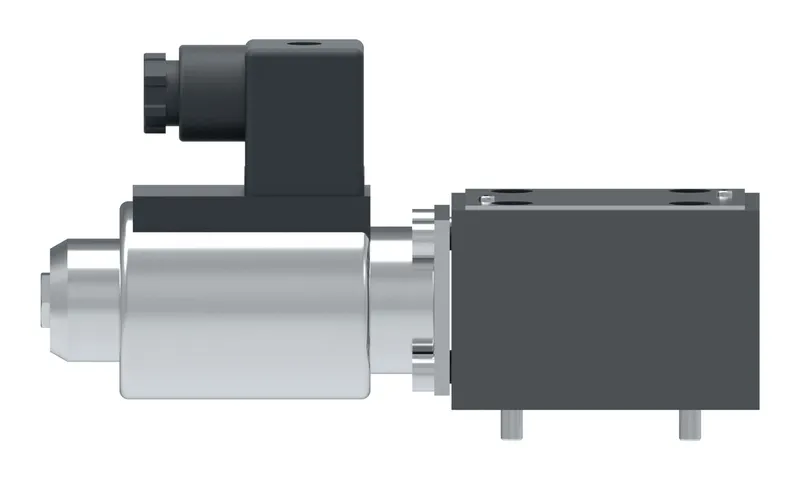

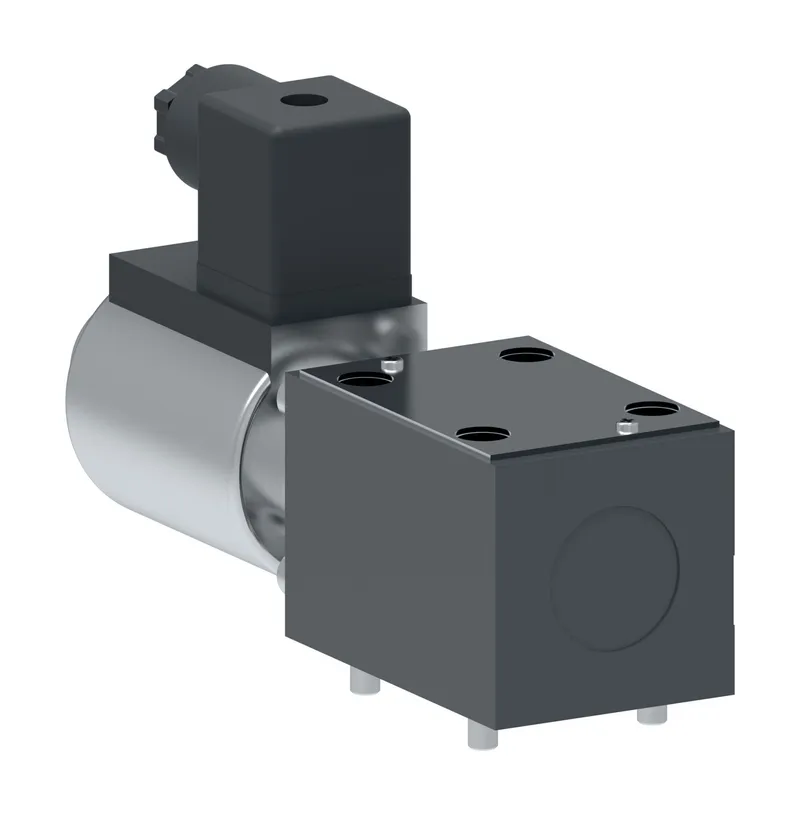

Danfoss 6042893-001

DG3VP-3-102A-VM-U-H-20, DG3VP3102AVMUH20

MPN: 6042893-001
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 6042893-001?

Danfoss DG3VP-3-102A-VM-U-H-20, DG3VP3102AVMUH20, manufacturer part number 6042893-001. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid operated
Brand	Vickers by Danfoss
Coil Rating	24 VDC
Design Series	20 Series
Electrical Connection	ISO 4400 (Din 43650) connector
Flow rate upto GPM	5.3
Flow rate upto LPM	20.0
Fluid Cleanliness	20/18/15 micron
Fluid compatibility	Petroleum oils
Indicator Light	No
Interface	ISO4401-03
Manual override	Plain
Model Code 1	DG3VP3102AVMUH20
Performance	High performance
Power Consumption	38 watt
Pressure rating BAR	315
Pressure rating PSI	4500
Product height in	3.270
Product length in	6.420
Product length mm	163.068
Product width in	1.810
Product width mm	45.974
Seal type	Buna-N
Solenoid Energising ID	Solenoid A at port A end
Special features	None
Spool Position Monitor	No
Spool Type	Spool 102
Spring Arrangement	Spring offset end to end
Stage	Single stage
Surge Suppr Damper	No
Tank port rating BAR	210
Tank port rating PSI	3000
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4

6042893-001: frequently asked questions

When can 6042893-001 be shipped?

6042893-001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6042893-001 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6042893-001 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6042893-001, subject to availability and destination.
