Danfoss 6041964-001

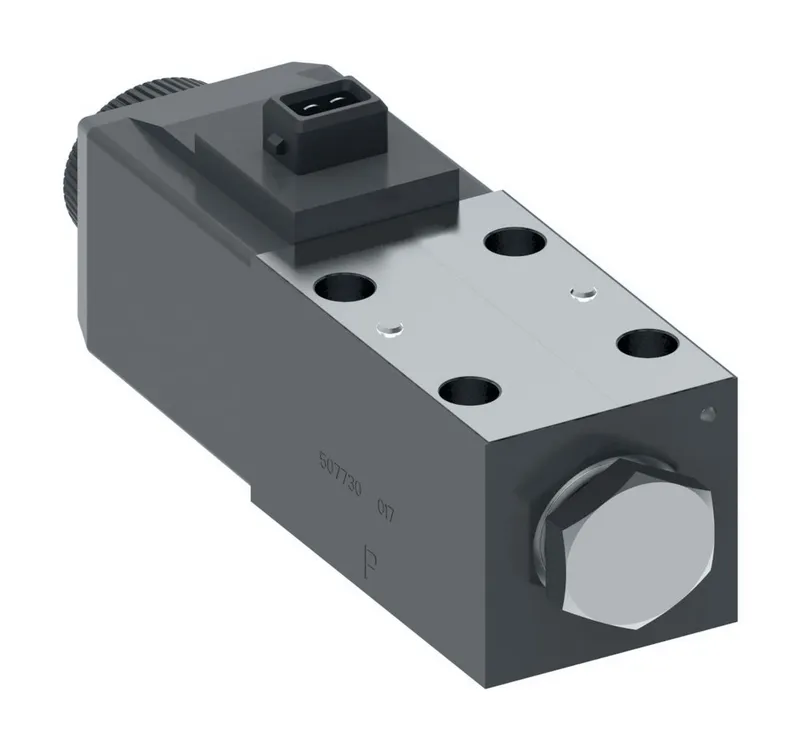

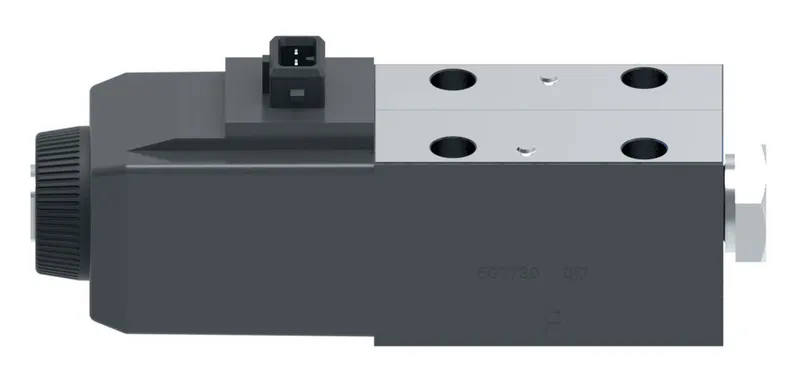

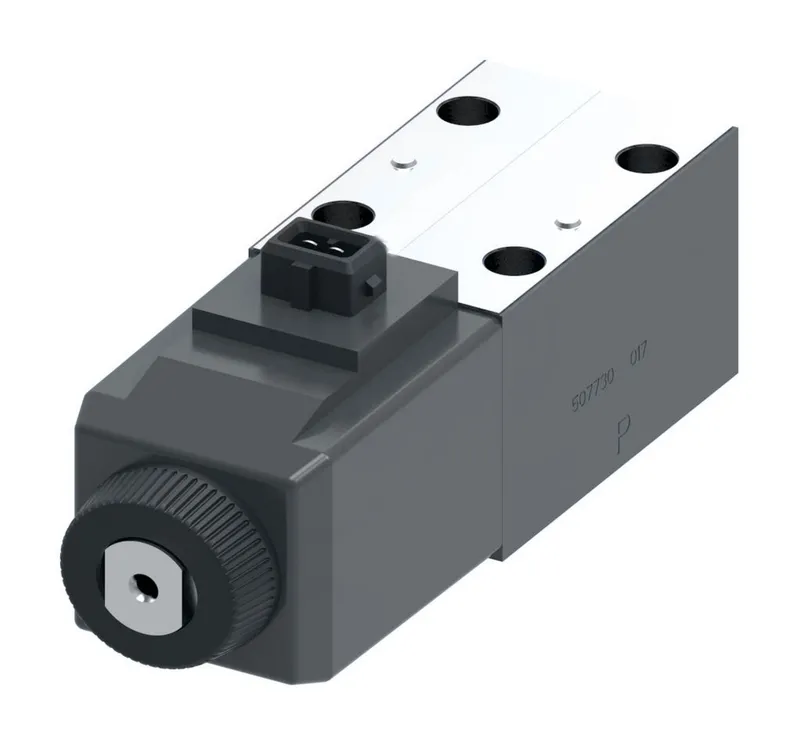

DG4V-3-42A-H-VM-KUP4D2-DS7-60-EN38, DG4V342AHVMKUP4D2DS760EN38

MPN: 6041964-001
Category: Manifold directional control valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 6041964-001?

Danfoss DG4V-3-42A-H-VM-KUP4D2-DS7-60-EN38, DG4V342AHVMKUP4D2DS760EN38, manufacturer part number 6041964-001. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid operated
Brand	Vickers by Danfoss
Coil Rating	28 VDC
Design Series	60 Series
Electrical Connection	Junior Timer (AMP) connector
Energ Time	45-28 ms
Flow rate upto GPM	21.0
Flow rate upto LPM	80.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Indicator Light	No
Interface	ISO4401-03
Manual override	Waterproof
Model Code 1	DG4V342AHVMKUP4D2DS760EN38
Performance	High performance
Power Consumption	30 watt
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	3.420
Product length in	5.750
Product length mm	146.050
Product width in	1.880
Product width mm	47.752
Seal type	WATER GLYCOL
Solenoid Energising ID	Solenoid A at port A end
Special features	Low leakage
Spool Position Monitor	No
Spool Type	Spool 42
Spring Arrangement	Spring offset end to end
Stage	Single stage
Surge Suppr Damper	Yes
Tank port rating BAR	210
Tank port rating PSI	3000
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4

6041964-001: frequently asked questions

When can 6041964-001 be shipped?

6041964-001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6041964-001 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6041964-001 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6041964-001, subject to availability and destination.
