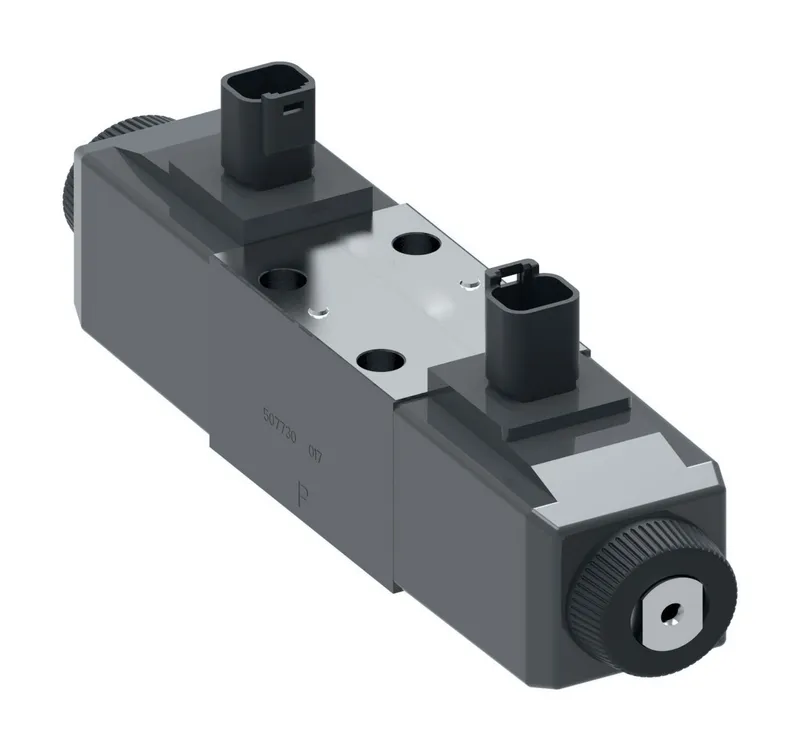

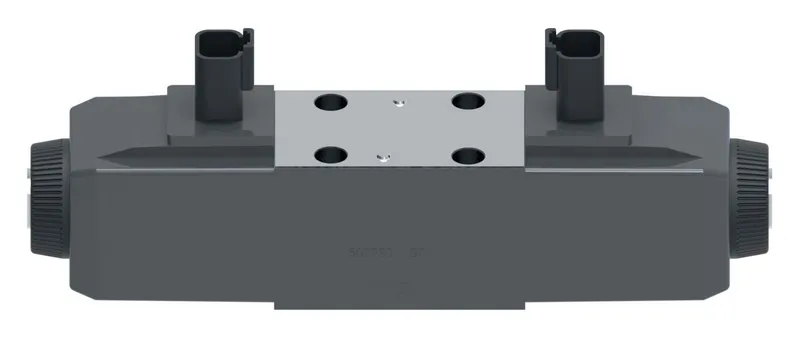

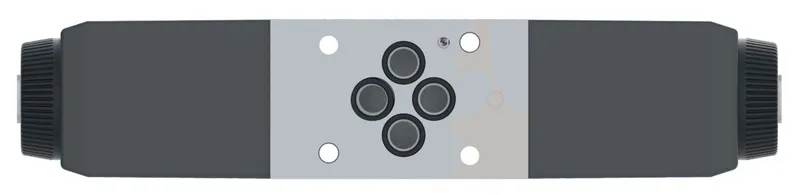

Danfoss 6041290-001

KDG4V-3-33C14A-M-KUP5-G5-60-EN149, KDG4V333C14AMKUP5G560EN149

MPN: 6041290-001
Category: Manifold directional control valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 6041290-001?

Danfoss KDG4V-3-33C14A-M-KUP5-G5-60-EN149, KDG4V333C14AMKUP5G560EN149, manufacturer part number 6041290-001. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A Port flow LPM	14.00
A Port flow USGPM	3.70
Actuation Type	Solenoid controlled
B Port flow LPM	14.00
B Port flow USGPM	3.70
Brand	Vickers by Danfoss
Build orientation	Standard as per ANSI B93 9
Build type	Spring centered
Coil voltage	12 Volt DC
Command input	None
Communication protocol	None
Design Series	60 Series
Electrical Connection	Moulded Deutsch connector
Feedback sensor	No
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-03/NFPA D03/CETOP 3/NG06
Manual override	Plain
Maximum pressure BAR	350
Maximum pressure PSI	5000
Metering	Meter in
Model Code 1	KDG4V333C14AMKUP5G560EN149
On board electronics	No
Performance	Standard
Product height in	3.400
Product height mm	86.360
Product length in	9.370
Product length mm	237.998
Product width in	1.900
Product width mm	48.26
ProFX compatible	No
Reducer module	No
Reverse flow check	No
Seal type	Viton
Special features	Special for JCB
Spool Type	P blocked, A & B to tank
Stage	Single stage
Symmetric flow	Yes
Tank port rating BAR	210
Tank port rating PSI	3000
Valve Mount Type	Subplate
Valve type	Proportional directional
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
