Danfoss 6039447-001

DG4V 5M 3CJ M KUP5 H6 21OBSOLETE, DG4V5M3CJMKUP5H621

MPN: 6039447-001
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 6039447-001?

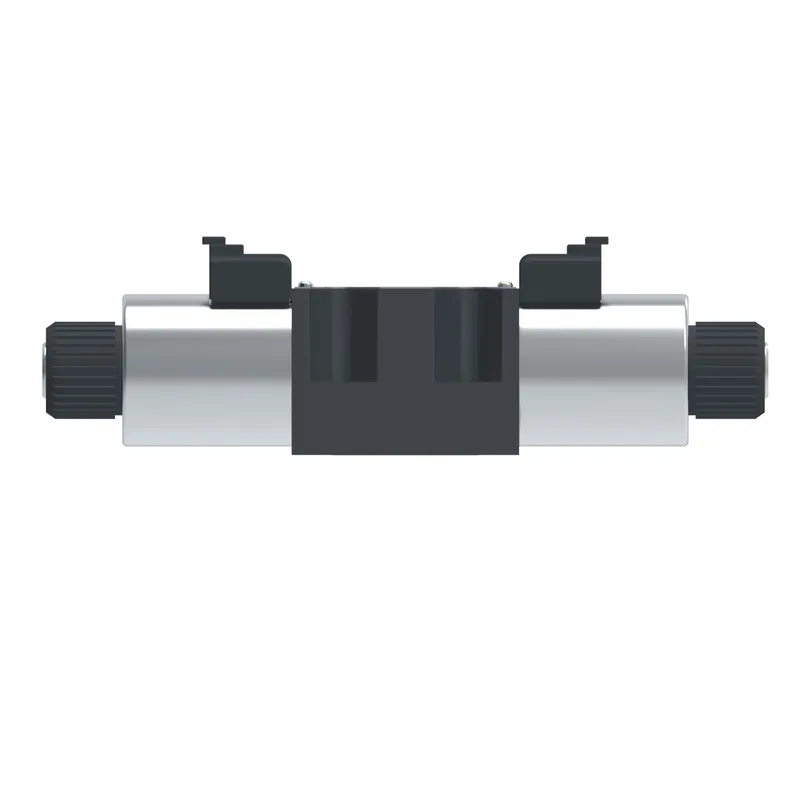

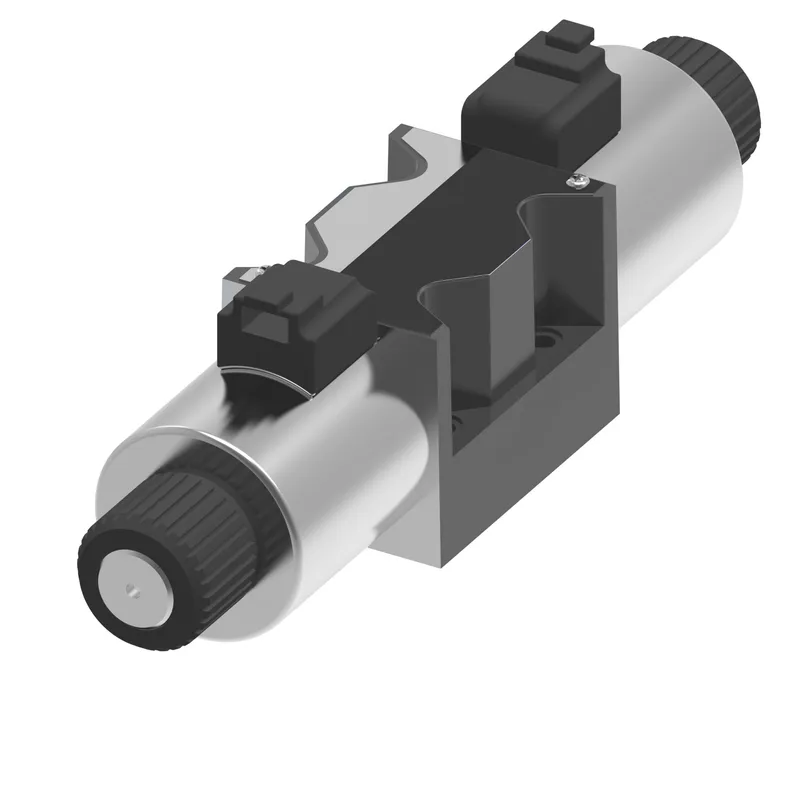

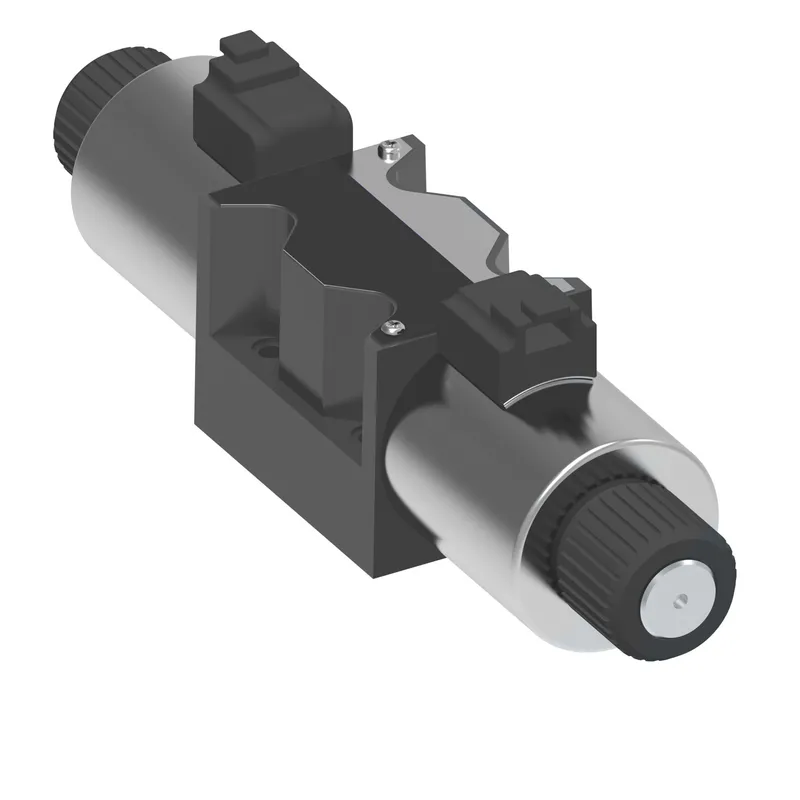

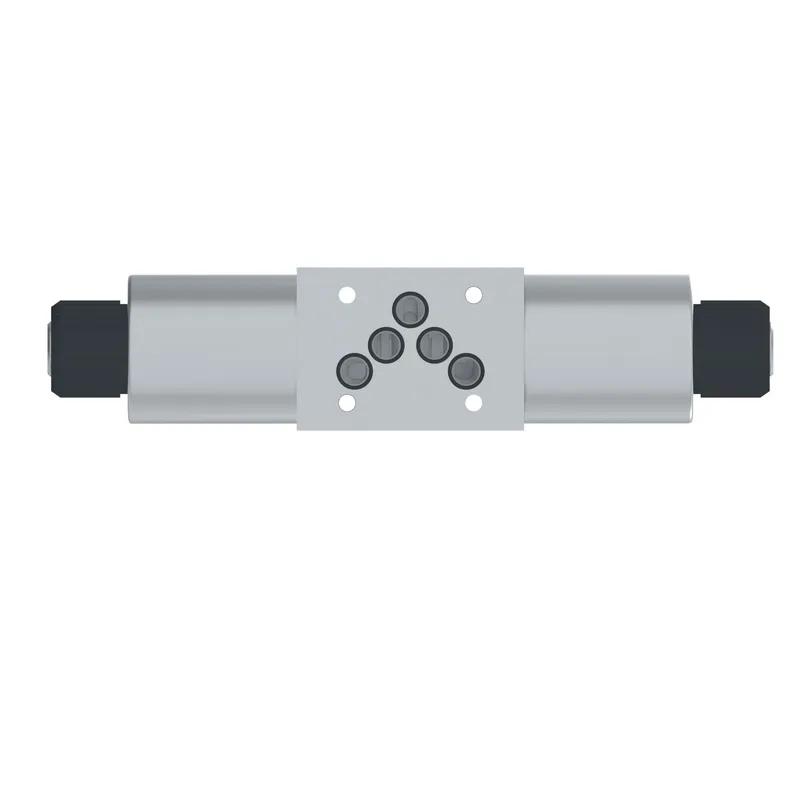

Danfoss DG4V 5M 3CJ M KUP5 H6 21OBSOLETE, DG4V5M3CJMKUP5H621, manufacturer part number 6039447-001. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid operated
Brand	Vickers by Danfoss
Coil Rating	24 VDC
Design Series	21 Series
Electrical Connection	Moulded Deutsch connector
Energ Time	120-45 ms
Flow rate upto GPM	32.0
Flow rate upto LPM	120.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Indicator Light	No
Interface	ISO4401-05/NFPA D05
Manual override	Plain
Model Code 1	DG4V5M3CJMKUP5H621
Performance	High performance
Power Consumption	38 watt
Pressure rating BAR	315
Pressure rating PSI	4500.00
Seal type	WATER GLYCOL
Solenoid Energising ID	Standard as per ANSI B93 9
Special features	None
Spool Position Monitor	No
Spool Type	Spool 3
Spring Arrangement	Spring centred
Stage	Single stage
Surge Suppr Damper	No
Tank port rating BAR	160
Tank port rating PSI	2300
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
