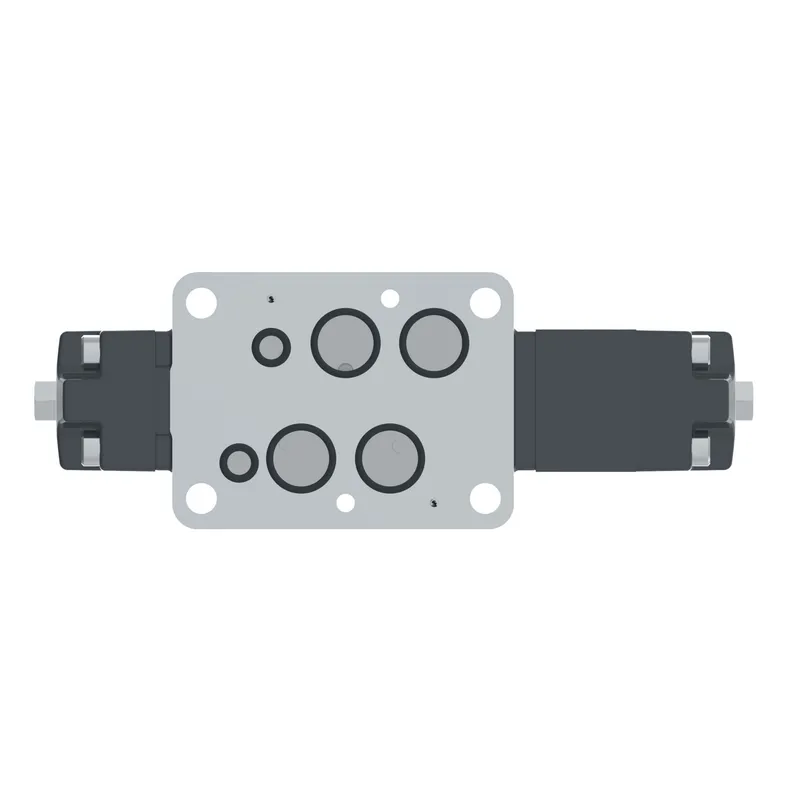

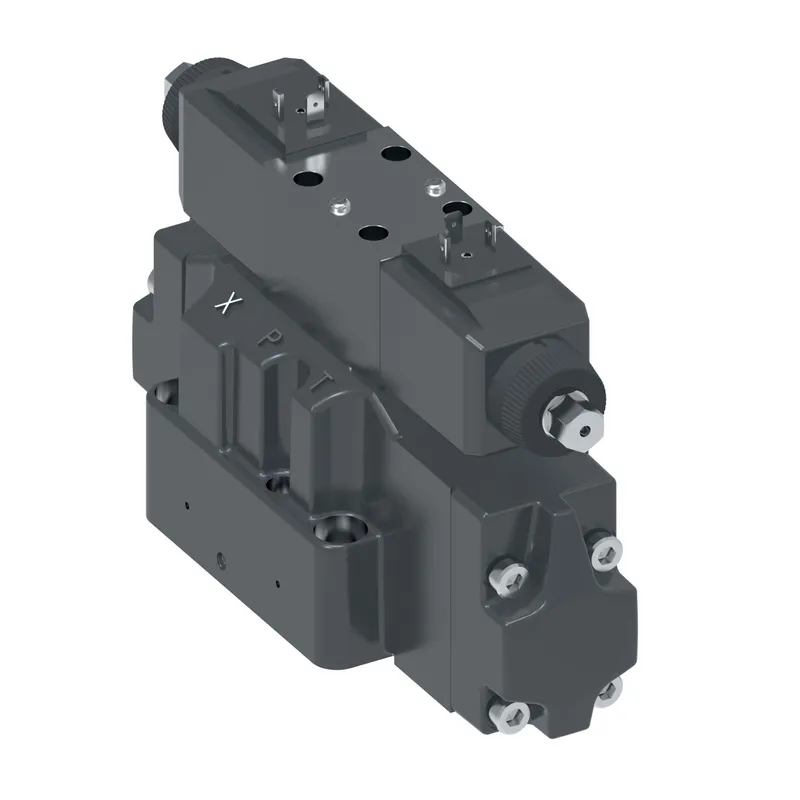

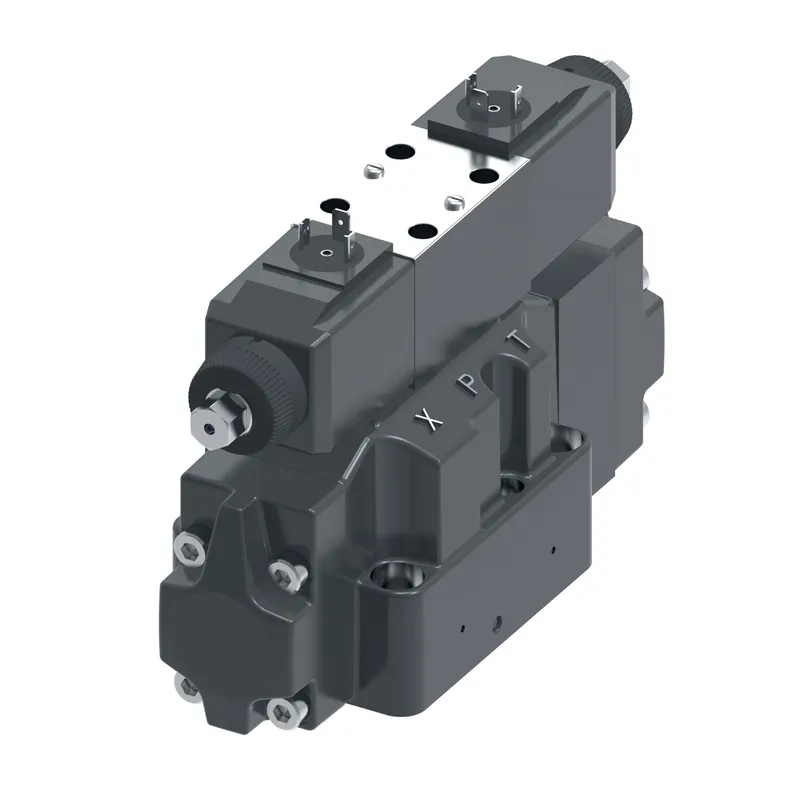

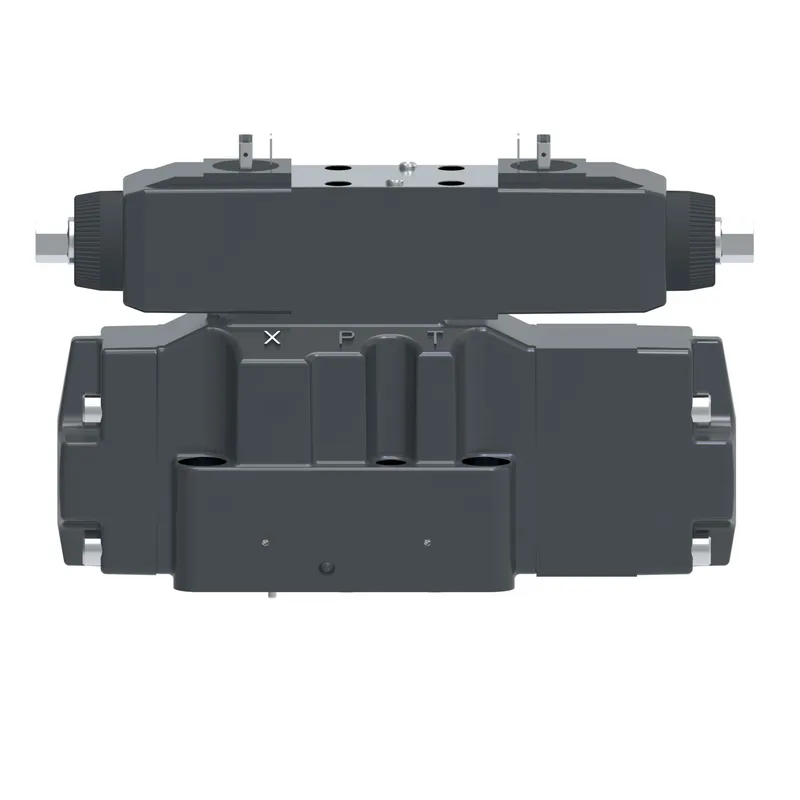

What is the Danfoss 5992998-001?

Danfoss KDG5V-7-33C170N100-T-M-U-H1-10, KDG5V733C170N100TMUH110, manufacturer part number 5992998-001. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A Port flow LPM170.00
A Port flow USGPM45.00
Actuation TypeSolenoid controlled pilot operated
B Port flow LPM100.00
B Port flow USGPM26.40
BrandVickers by Danfoss
Build orientationStandard as per ANSI B93 9
Build typeSpring centered
Coil voltage24 Volt DC
Command inputNone
Communication protocolNone
Design Series10 Series
Electrical ConnectionISO 4400 (DIN 43650) connector
Feedback sensorNo
Fluid Cleanliness17/15/12 micron
Fluid compatibilityAntiwear hydraulic oils and non alkyl-based Phosphate Esters
InterfaceISO4401-07/NFPA D07/CETOP 7/NG16
Manual overridePlain
Maximum pressure BAR200
Maximum pressure PSI2900
MeteringMeter in / meter out
Model Code 1KDG5V733C170N100TMUH110
On board electronicsNo
PerformanceStandard
Pilot drainInternal
Pilot supplyInternal
ProFX compatibleNo
Reducer moduleNo
Reverse flow checkNo
Seal typeViton
Special featuresNone
Spool TypeBleed A and B to T
StageTwo stage
Symmetric flowNo
Tank port rating BAR350
Tank port rating PSI5000
Valve Mount TypeSubplate
Valve typeProportional directional
Working temp max C70
Working temp max F158
Working temp min C-20
Working temp min F-4
