What is the Danfoss 590391?

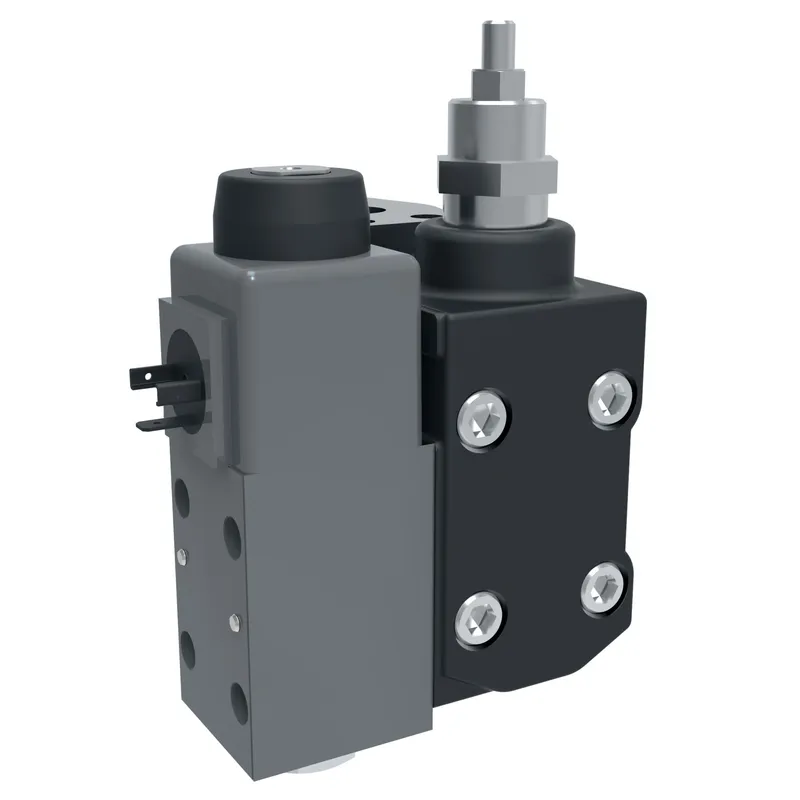

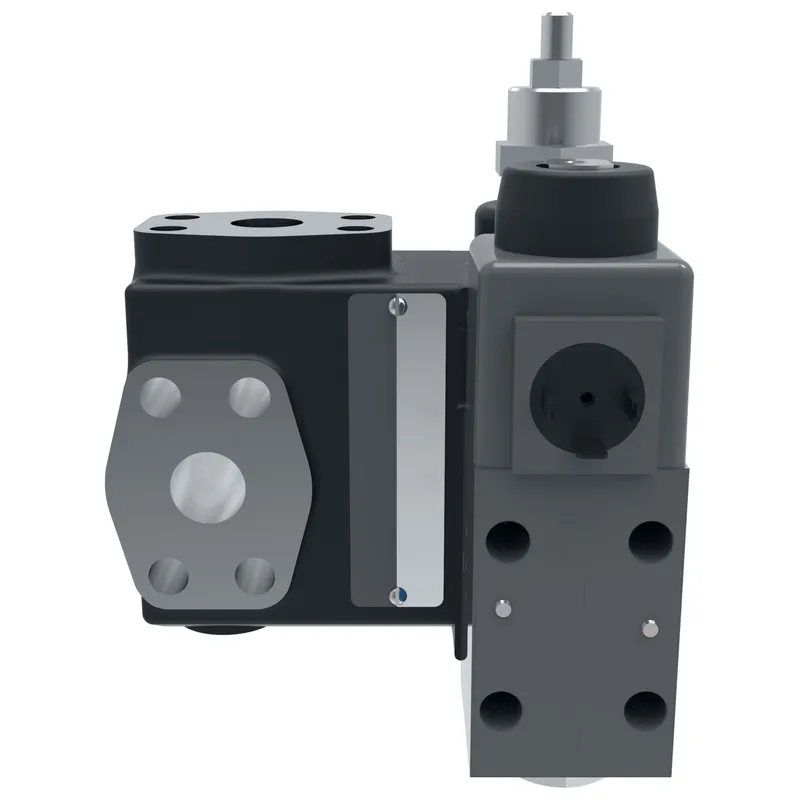

Danfoss XS 06 1B 30, XS061B30, manufacturer part number 590391. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pilot operated
Adjustment range bar	70
Adjustment range PSI	1000
Adjustment type	Screw with locknut
Brand	Vickers by Danfoss
Check valve	No
Design Series	30 Series
Electrical connection	None
Flow rate lpm	57.0
Flow rate USGPM	15.0
Fluid Cleanliness	19/17/14 Micron
Fluid compatibility	Petroleum oils
Hi-vent spring	No
Indicator Light	No
Maximum pressure BAR	210
Maximum pressure PSI	3000
Model Code 1	XS061B30
Performance	Standard
Product height in	6.950
Product height mm	176.530
Product length in	3.750
Product length mm	95.250
Product width in	6.495
Product width mm	164.973
Seal material	Nitrile
Size	Size 06
Special feature	None
Stage	Two stage
Valve Mount Type	1.6250-12-UNF-2B straight thd
Valve type	Pressure reducing valve
Working temperature max C	70
Working temperature max F	158
Working temperature min C	-20
Working temperature min F	-4
