What is the Danfoss 588471?

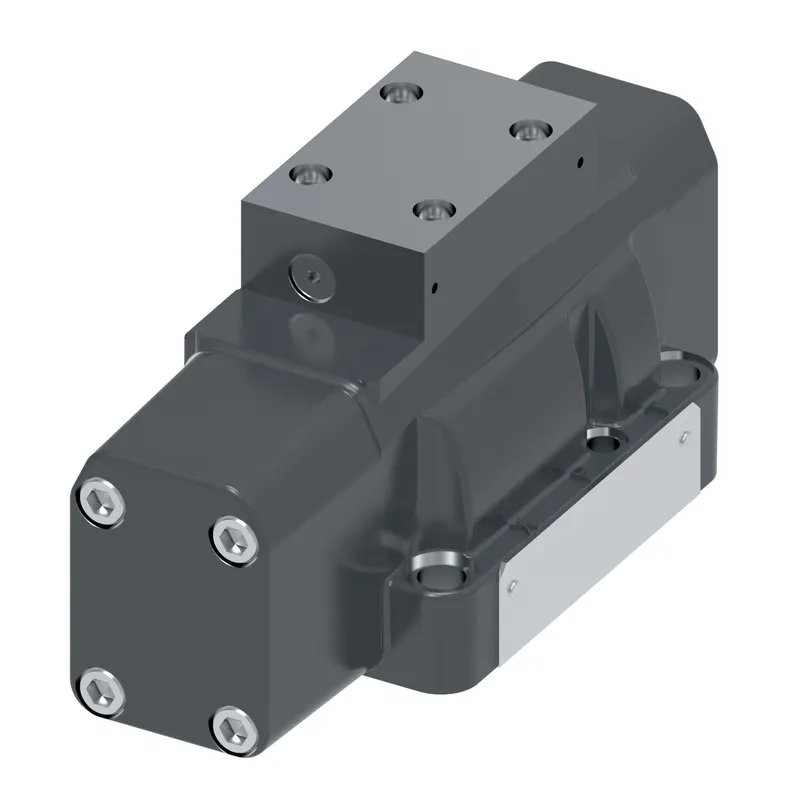

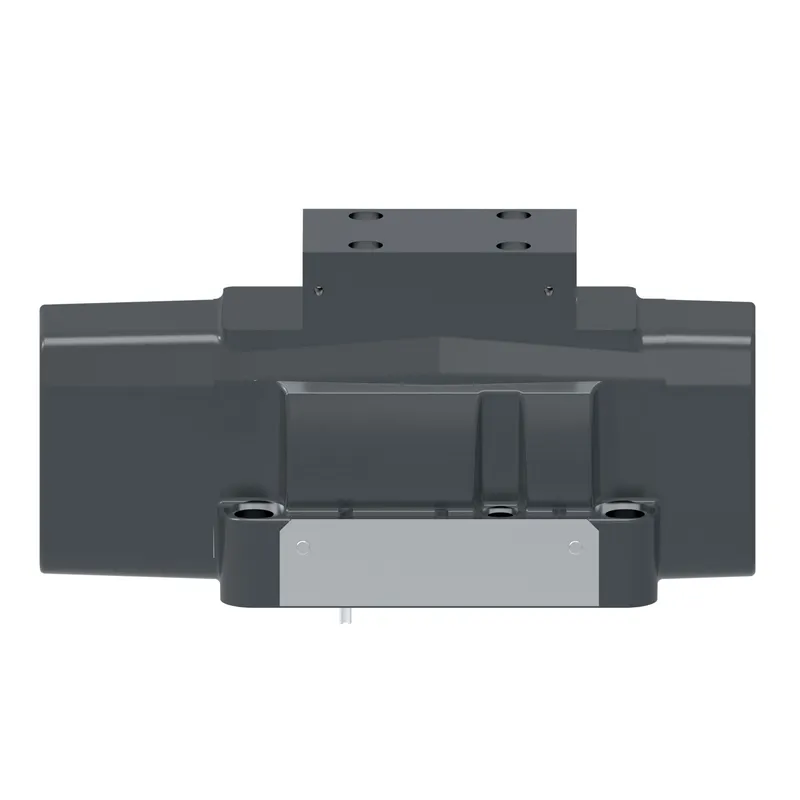

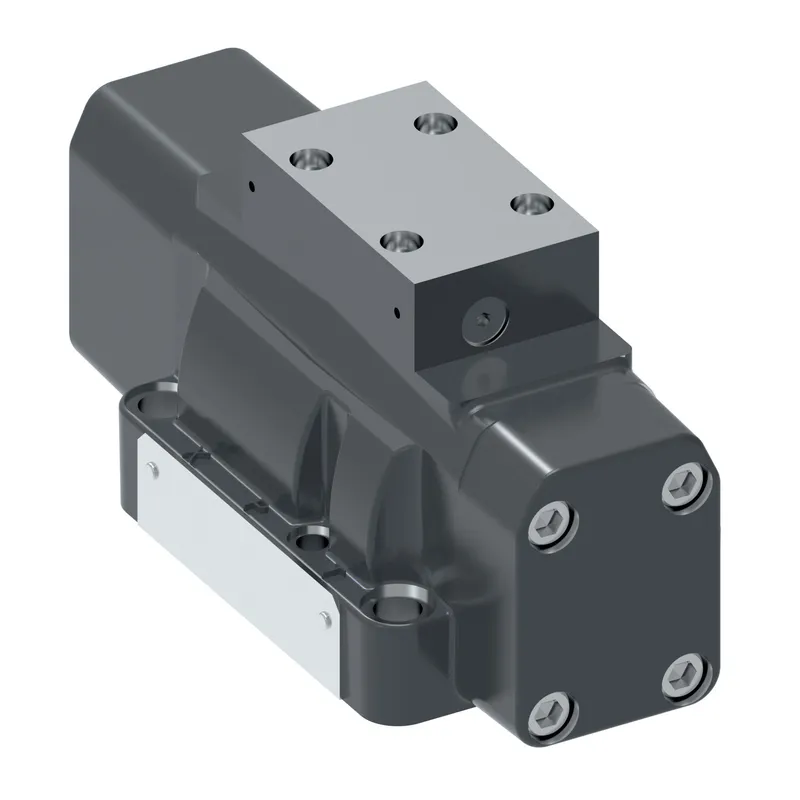

Danfoss DG3S4-042A-7-40, DG3S4042A740, manufacturer part number 588471. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pilot operated
Brand	Vickers by Danfoss
Coil Rating	None
Design Series	40 Series
Electrical Connection	None
Ext pilot pressure	External
Flow rate upto GPM	60.0
Flow rate upto LPM	227.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Indicator Light	No
Int pilot drain	External

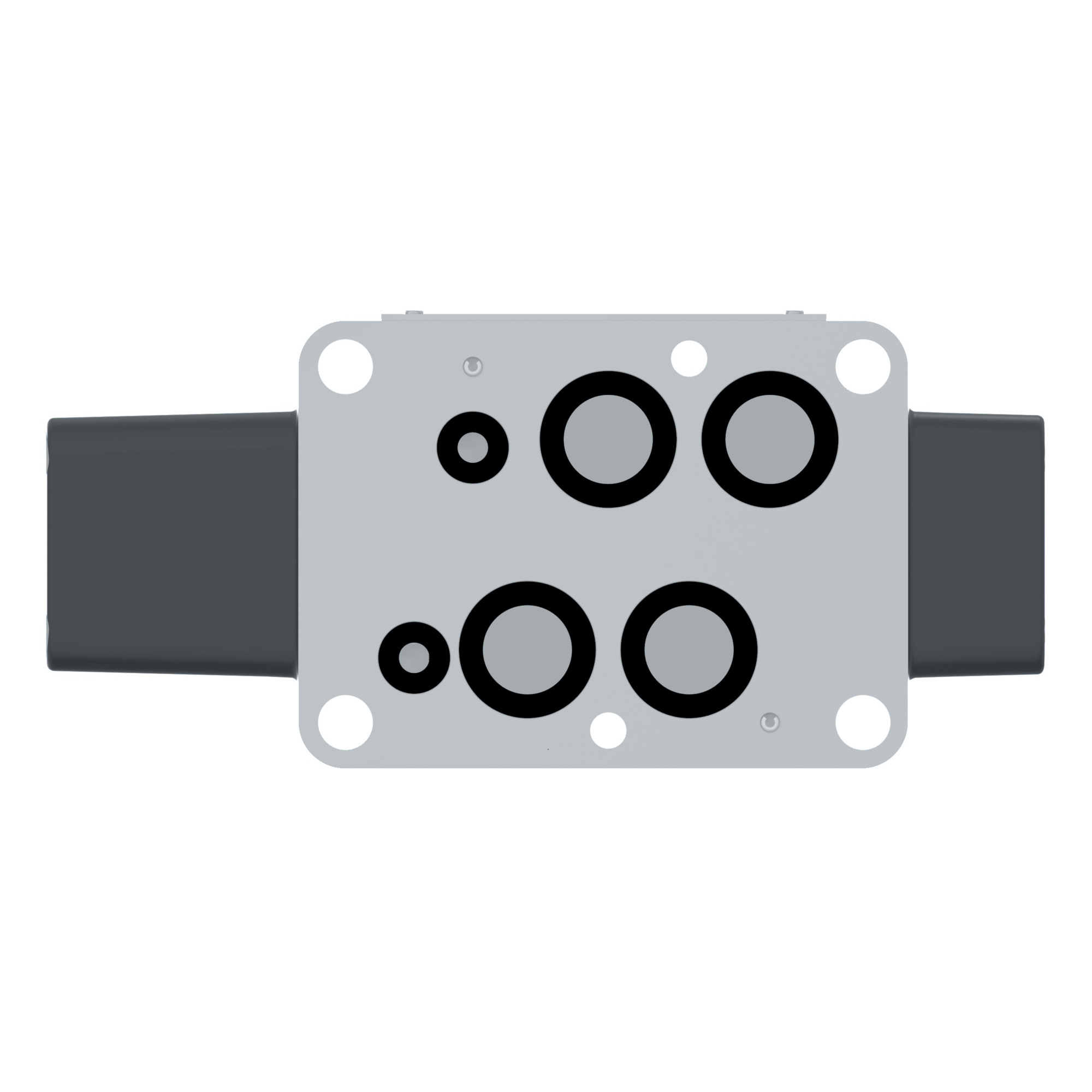

Interface	ISO4401-07
Manual override	None
Model Code 1	DG3S4042A740
Performance	High performance
Product height in	3.750
Product length in	4.810
Product length mm	122.174
Product width in	3.500
Product width mm	88.9
Seal type	Buna-N
Solenoid Energising ID	Standard as per ANSI B93 9
Special features	None
Spool Control	Stroke adj. port A end only
Spool Position Monitor	No
Spool Type	Spool 2
Spring Arrangement	Spring offset end to end
Stage	Two stage
Surge Suppr Damper	No
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
