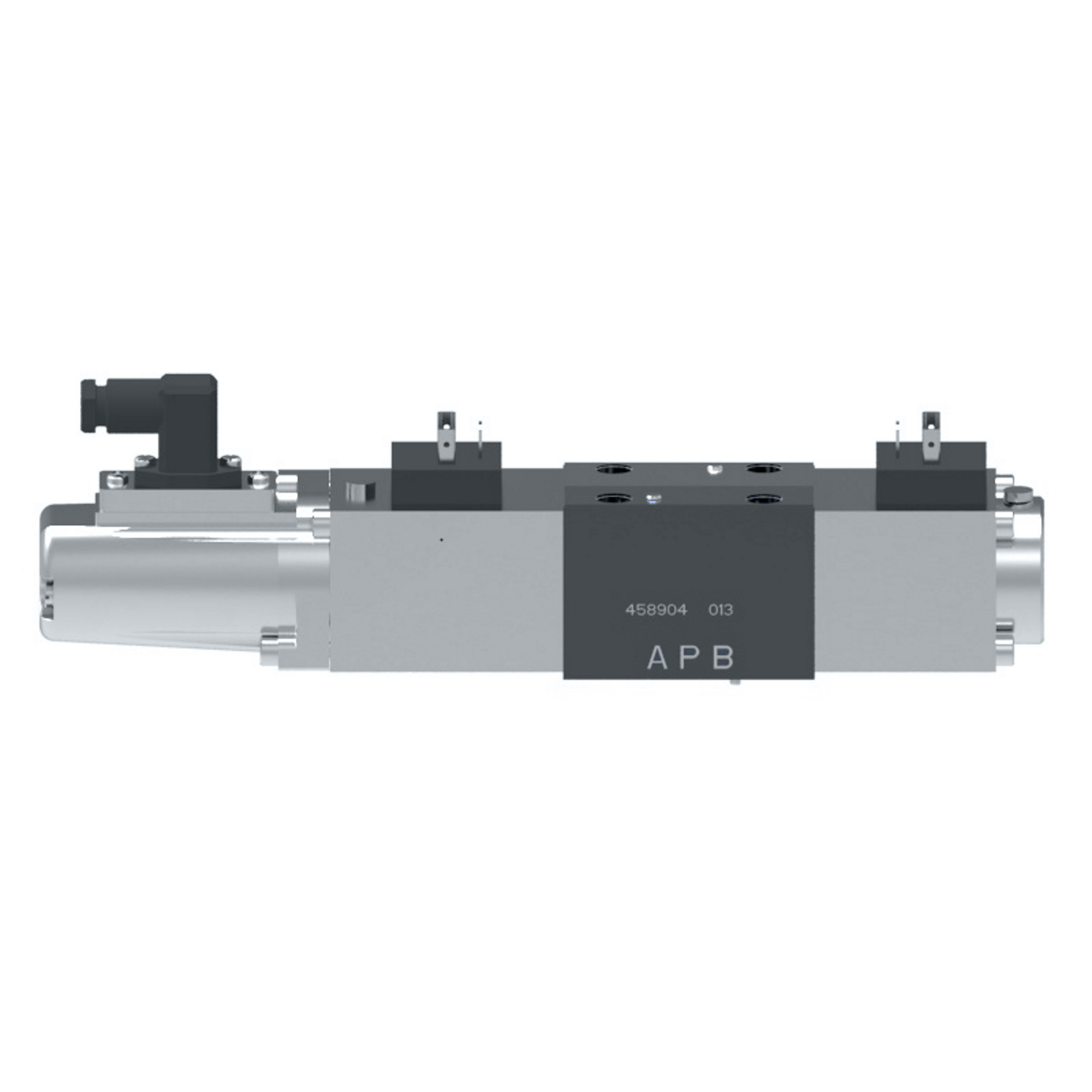

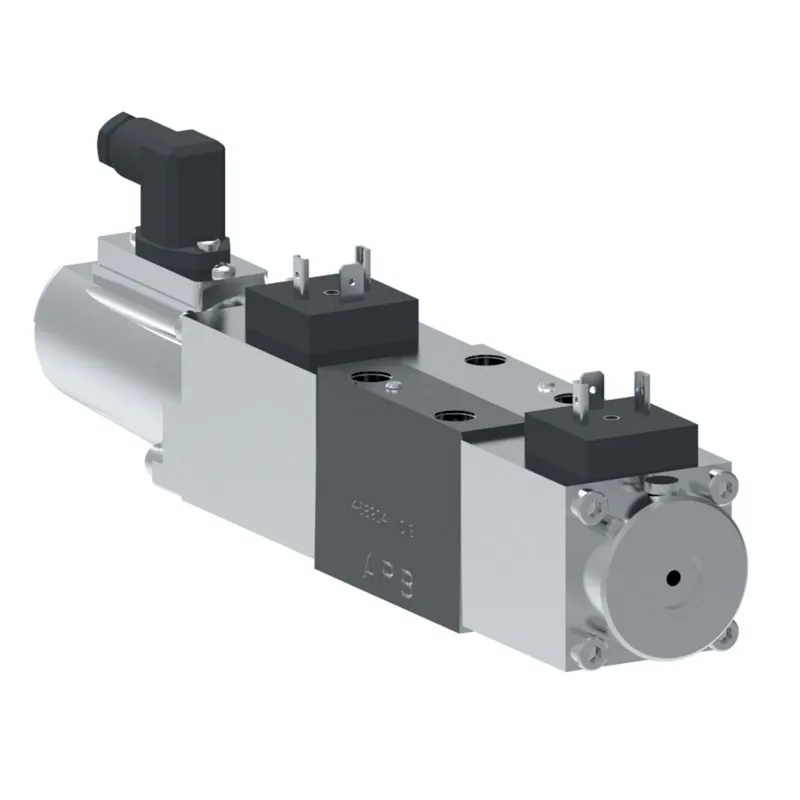

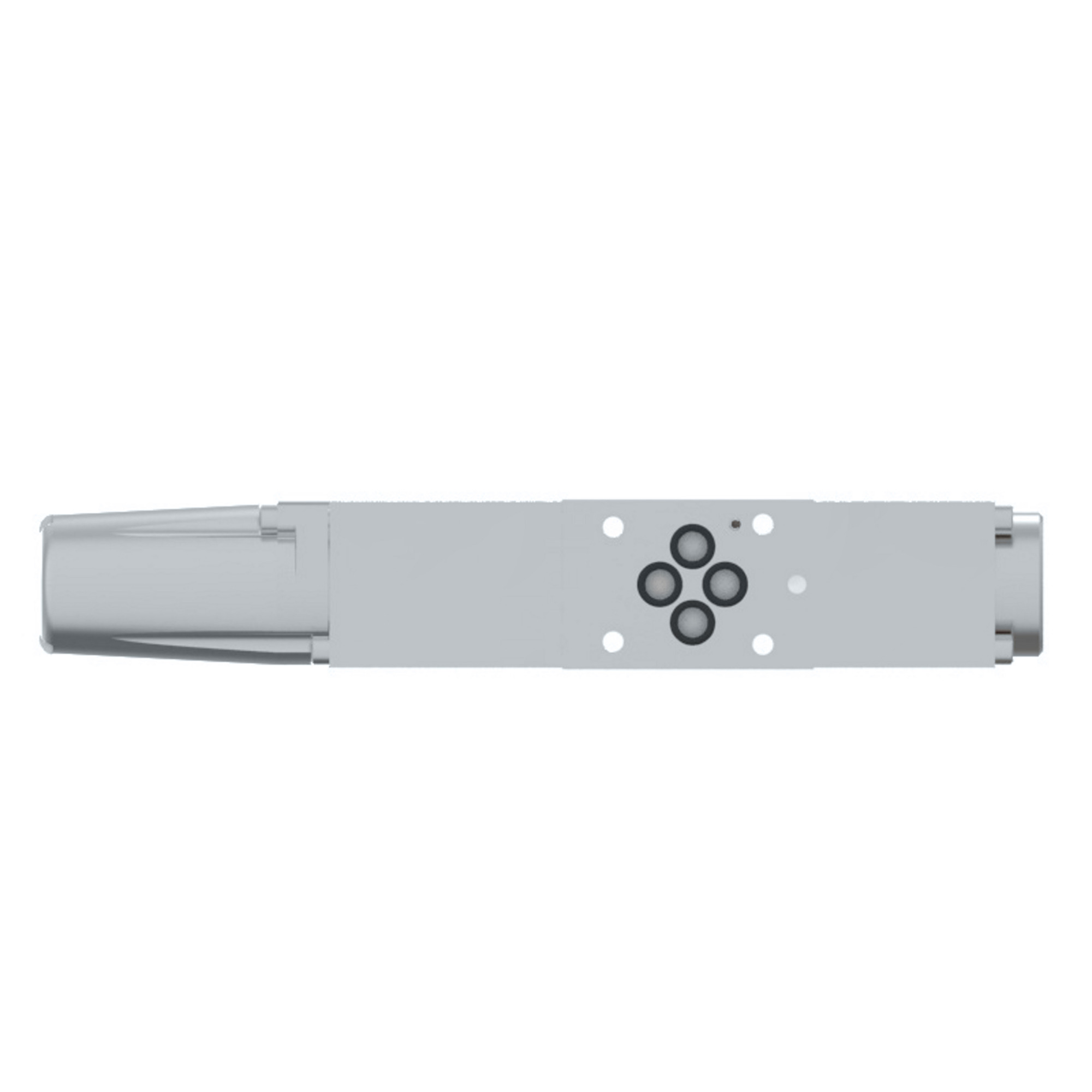

Danfoss 565378

KFDG4V 3 2C28S Z M U1 H620, KFDG4V32C28SZMU1H620

MPN: 565378
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 565378?

Danfoss KFDG4V 3 2C28S Z M U1 H620, KFDG4V32C28SZMU1H620, manufacturer part number 565378. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A Port flow LPM	28.00
A Port flow USGPM	7.40
Actuation Type	Solenoid controlled
B Port flow LPM	28.00
B Port flow USGPM	7.40
Brand	Vickers by Danfoss
Build orientation	Standard as per ANSI B93 9
Build type	Spring centered
Coil voltage	24 Volt DC
Command input	None
Communication protocol	None
Design Series	20 Series
Electrical Connection	ISO4400 with fitted plugs
Feedback sensor	Yes
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-03/NFPA D03/CETOP 3/NG06
Manual override	None
Maximum pressure BAR	350
Maximum pressure PSI	5000
Metering	Meter out
Model Code 1	KFDG4V32C28SZMU1H620
On board electronics	No
Performance	High
Product height in	3.430
Product height mm	87.122
Product length in	10.630
Product length mm	270.002
Product width in	1.890
Product width mm	48.006
ProFX compatible	No
Reducer module	No
Reverse flow check	No
Seal type	Viton
Special features	None
Spool Type	ISO4401-10/NFPA D10/CETOP 10/NG32
Stage	Single stage
Symmetric flow	Yes
Tank port rating BAR	160
Tank port rating PSI	2300
Valve Mount Type	Subplate
Valve type	Proportional directional
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
