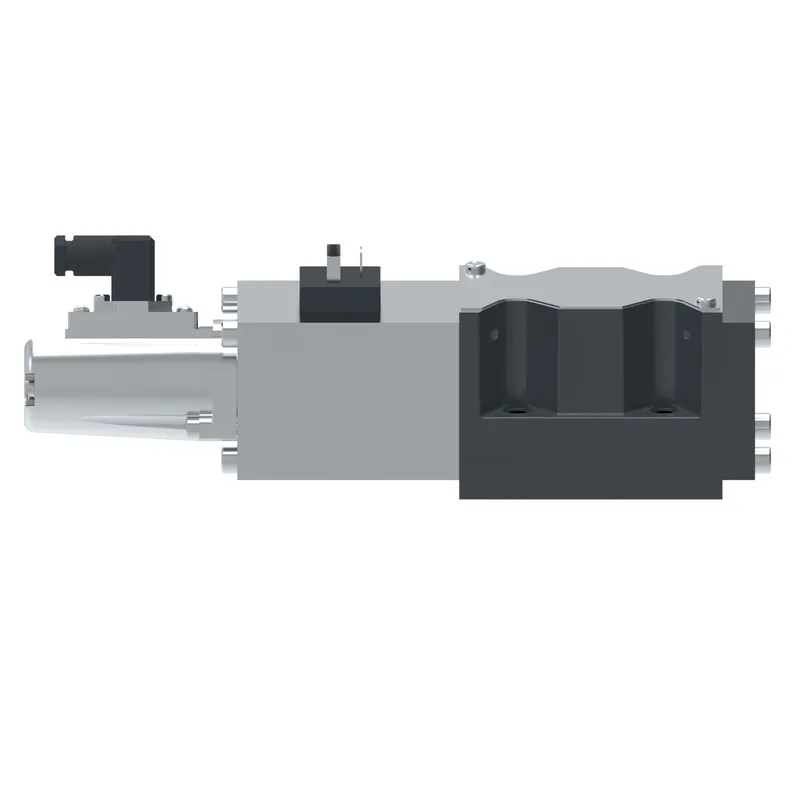

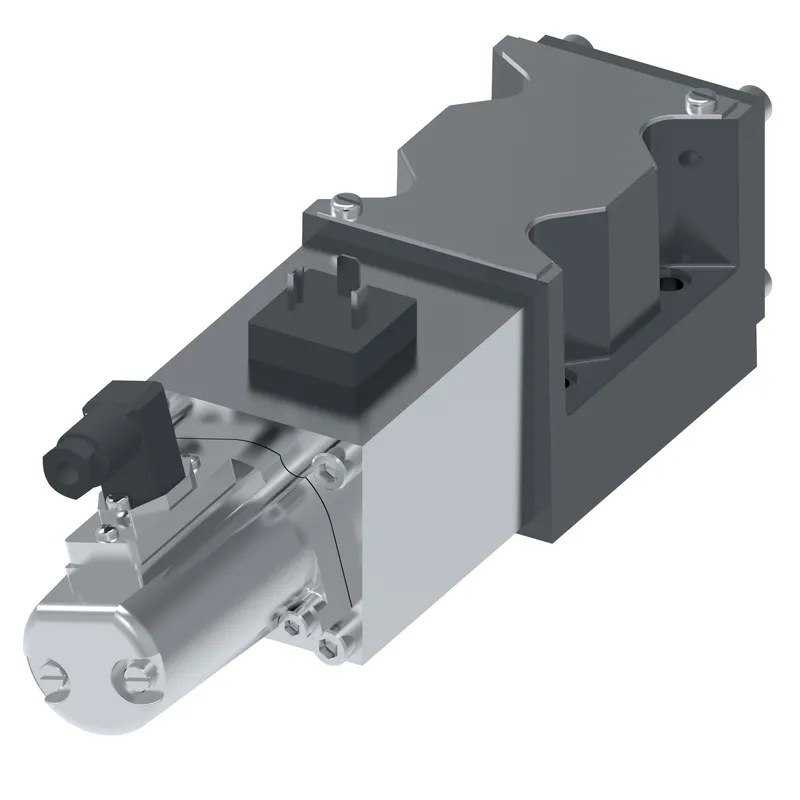

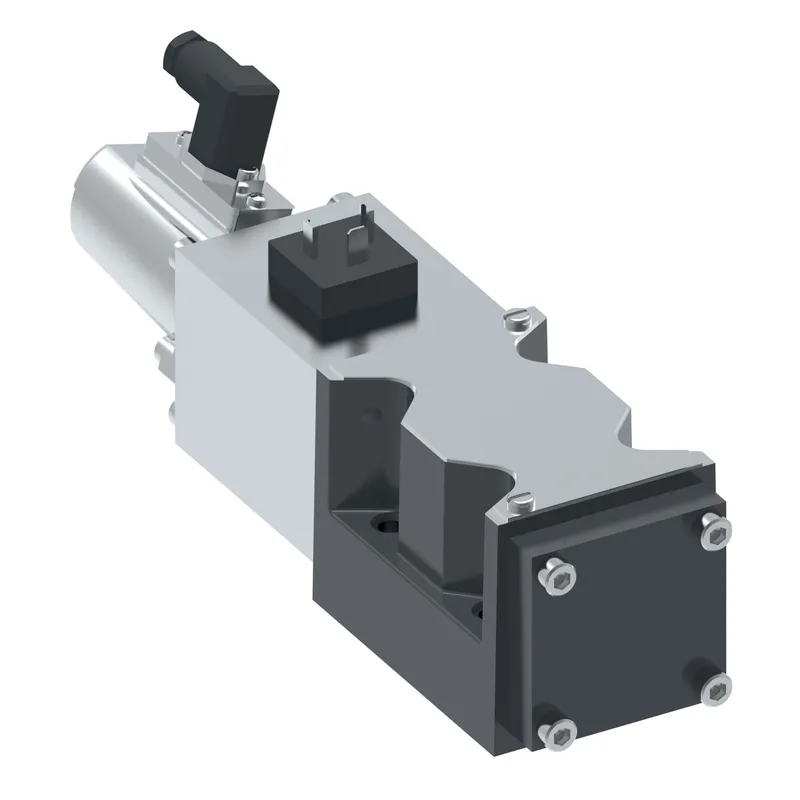

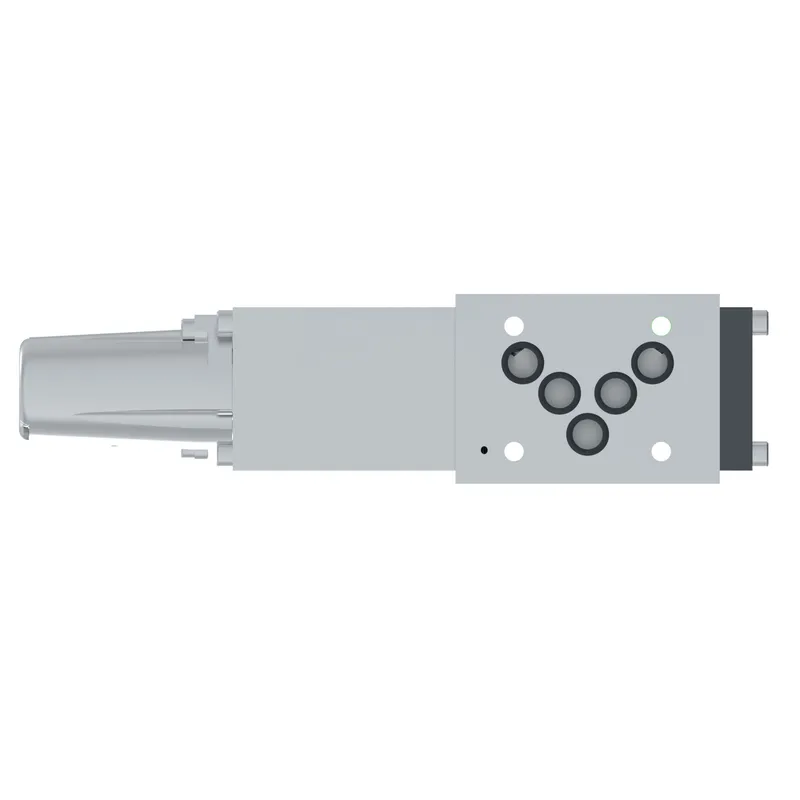

What is the Danfoss 565322?

Danfoss KFTG4V5 2B50N Z VM U1 H720, KFTG4V52B50NZVMU1H720, manufacturer part number 565322. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid controlled
B Port flow LPM	50.00
B Port flow USGPM	13.20
Brand	Vickers by Danfoss
Build orientation	Solenoid 'A' at port 'A' end of valve and solenoid 'B' at port 'B' end of valve
Coil voltage	24 Volt DC
Command input	None
Communication protocol	None
Design Series	20 Series
Electrical Connection	ISO4400 with fitted plugs
Feedback sensor	Yes
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-05/NFPA D05/CETOP 5/NG10
Manual override	None
Maximum pressure BAR	315
Maximum pressure PSI	4500
Metering	Meter in / meter out
Model Code 1	KFTG4V52B50NZVMU1H720
On board electronics	No
Performance	High
Product height in	4.180
Product height mm	106.172
Product length in	10.830
Product length mm	275.082
Product width in	2.760
Product width mm	70.104
ProFX compatible	No
Reducer module	No
Reverse flow check	No
Seal type	Viton
Special features	None
Spool Type	ISO4401-10/NFPA D10/CETOP 10/NG32
Stage	Single stage
Symmetric flow	Yes
Tank port rating BAR	210
Tank port rating PSI	4500
Valve Mount Type	Subplate
Valve type	Proportional throttle
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
