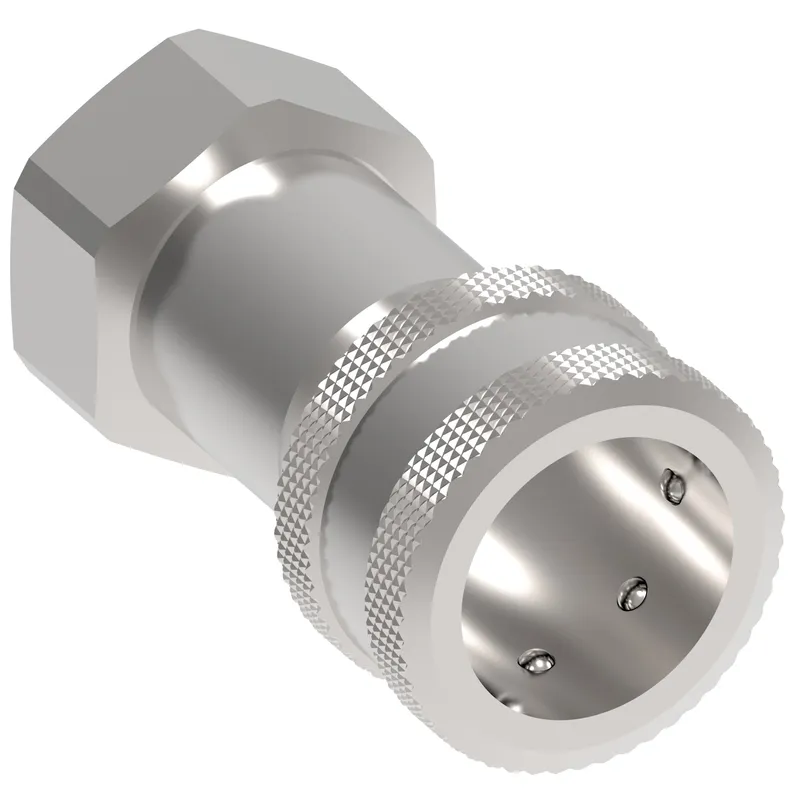

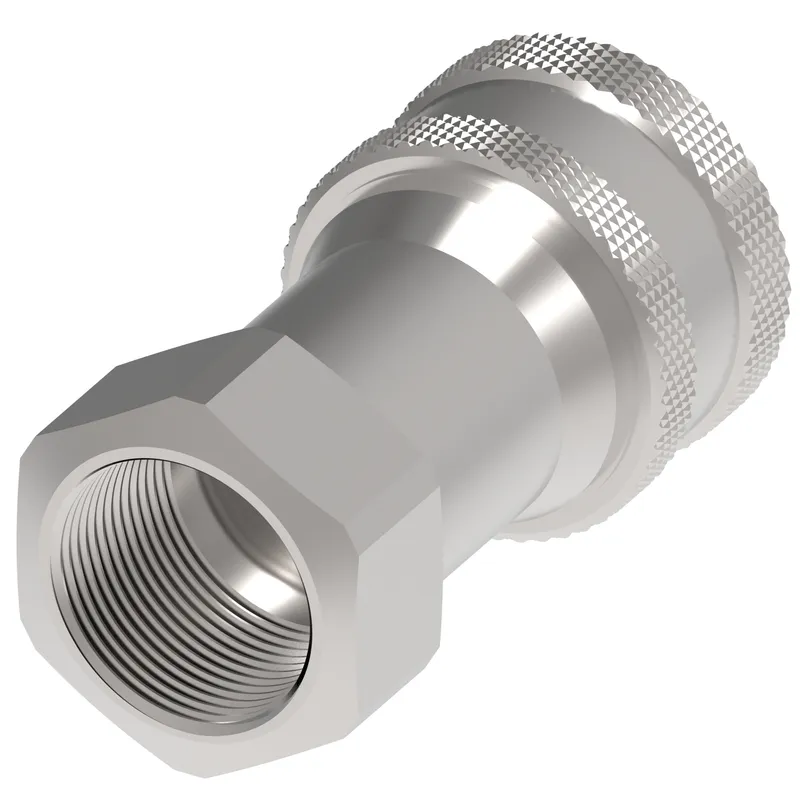

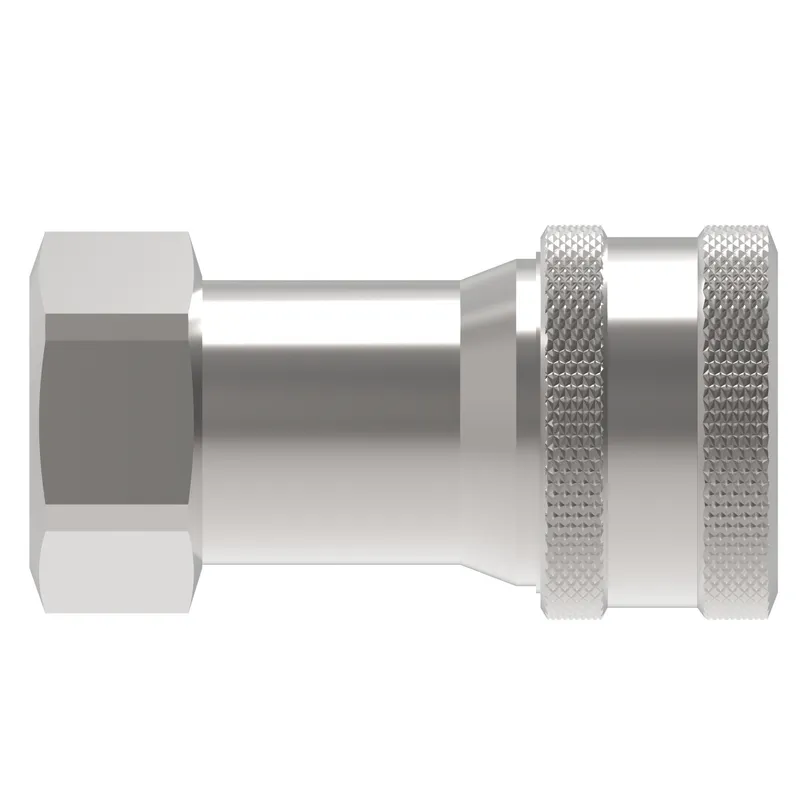

Danfoss 5601-12-12S-BG

Cplng, FD56

MPN: 5601-12-12S-BG
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 5601-12-12S-BG?

Danfoss Cplng, FD56, manufacturer part number 5601-12-12S-BG. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Air inclusion max cc	10.00
Air inclusion max in3	0.61
Angle shape	Straight
Body size	3/4
Brand	Danfoss
Burst pressure min bar	827
Burst pressure min psi	12000
Connection style	Manual connect
End size 2	-12
End type 1	Female Push to Connect
End type 2	Female Pipe (NPT)
Finish plating	Zinc
Flow rate GPM	28.00
Flow rate LPM	105.99
Fluid loss cc	8.20000
Fluid loss in3	0.50000
Hex size 1 IN	1.500
Hex size 1 MM	38.100
Item type	Female half
Latch type	Push/pull
Product material	Carbon steel
Seal material	Nitrile (NBR)
Sub brand	Hansen
Valve type	2 way
Working pressure max psi	4000
Working pressure max BAR	276
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
