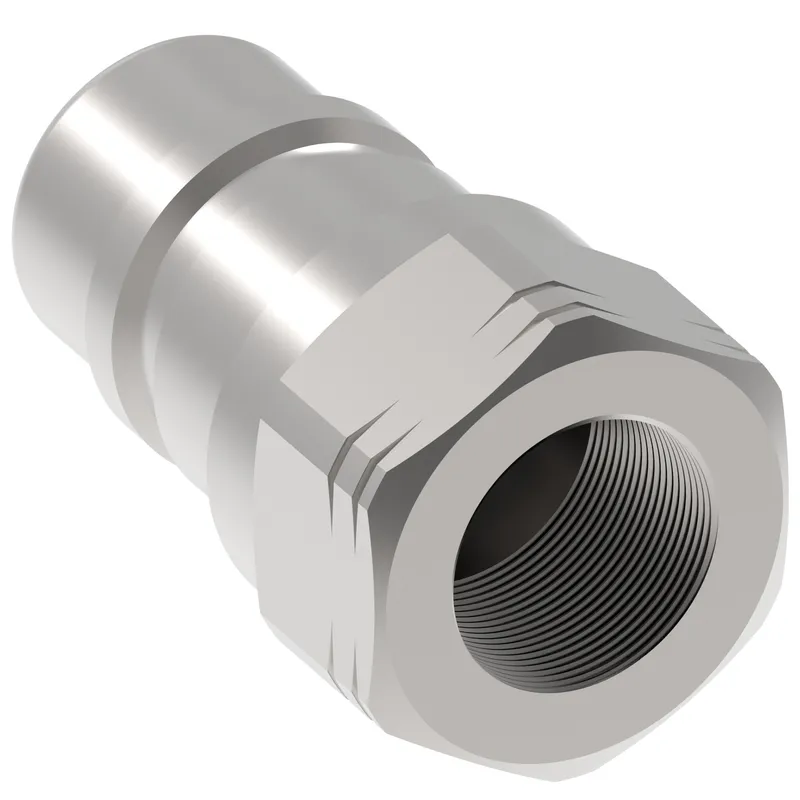

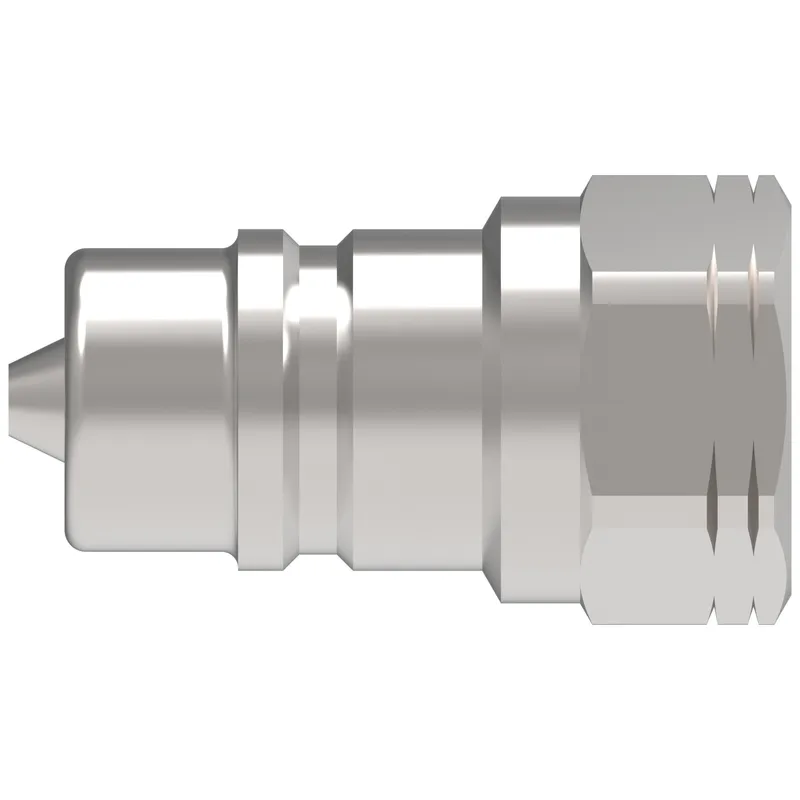

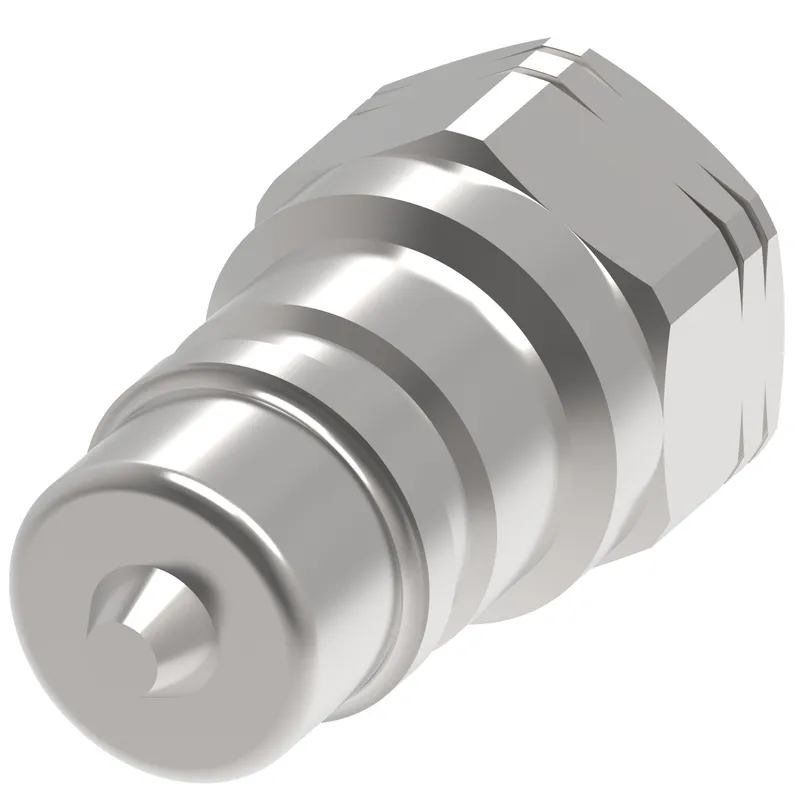

Danfoss 560049-16-16

COUPLING,5600,M,1",SS,-16NPTF,NBR

MPN: 560049-16-16
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 560049-16-16?

Danfoss COUPLING,5600,M,1",SS,-16NPTF,NBR, manufacturer part number 560049-16-16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	813688024493
Air inclusion max cc	14.20
Air inclusion max in3	0.87
Angle shape	Straight
Body size	1"
Brand	Danfoss
Burst pressure min bar	827
Burst pressure min psi	12000
Certifications	ISO 7241-1 Series A
Connection style	Manual connect
End size 1	-16
End size 2	-16
End type 1	Male push to connect
End type 2	Female Pipe (NPT)
Flow rate GPM	50.00
Flow rate LPM	189.27
Fluid loss cc	14.20000
Fluid loss in3	0.86700
Hex size 1 IN	1.620
Hex size 1 MM	41.148
Item type	Male half
Latch type	Push/pull
Product material	Stainless steel
Seal material	Nitrile (NBR)
Sub brand	Hansen
Thread size 1	1-11 1/2 NPTF
Valve type	2 way
Working pressure max psi	4000
Working pressure max BAR	276
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
