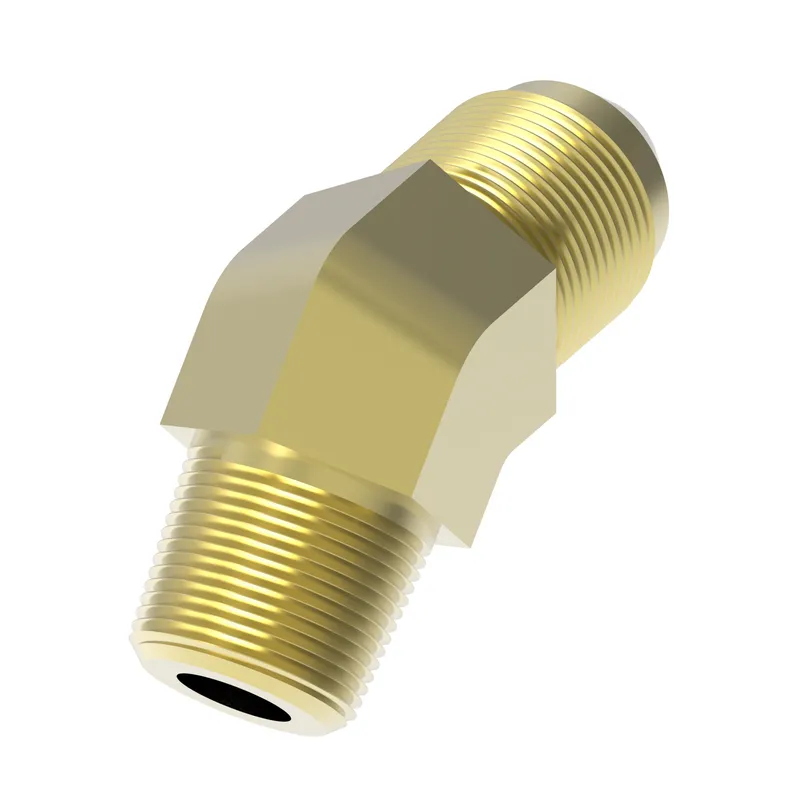

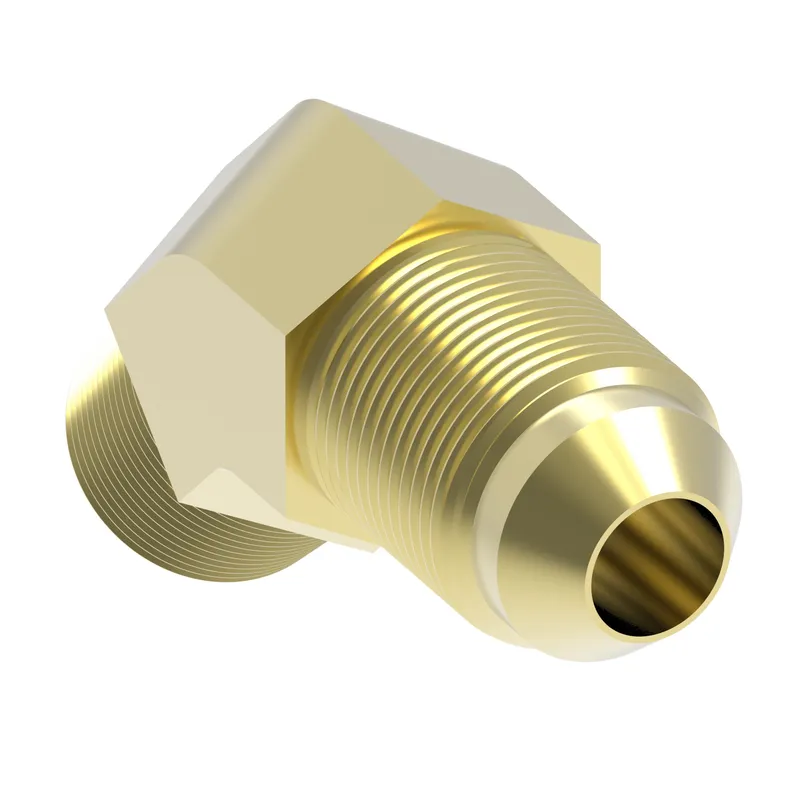

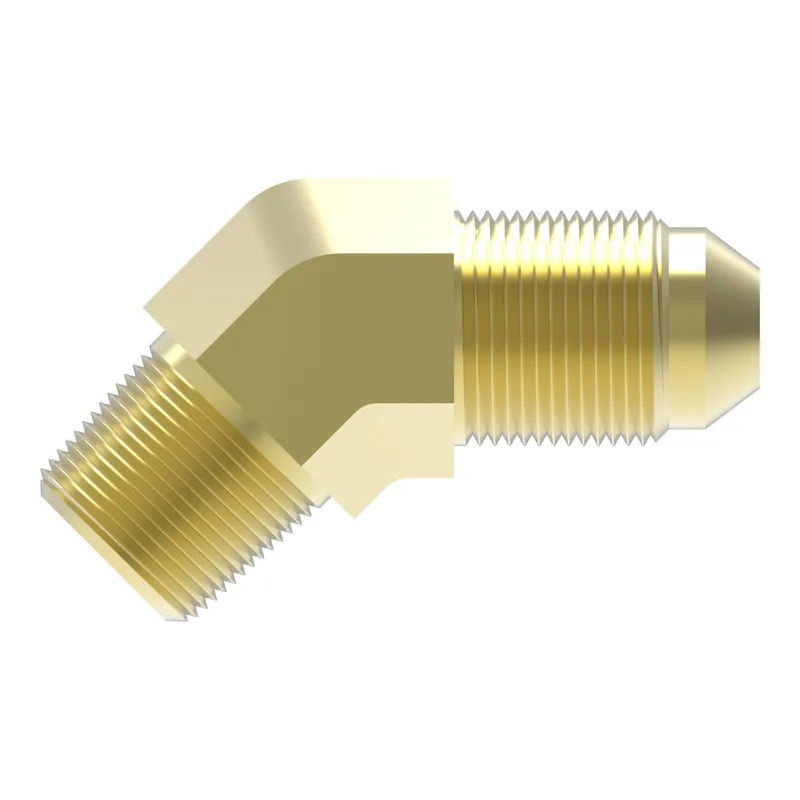

Danfoss 54X5-BG

Adapter Brass SAE45 Flar

MPN: 54X5-BG
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 54X5-BG?

Danfoss Adapter Brass SAE45 Flar, manufacturer part number 54X5-BG. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Angle shape	45 Degree
Brand	Danfoss
End Type 1	Male pipe (NPTF)
End Type 2	Male 37 degree
Hex size 1 IN	0.530
Hex size 1 MM	13.500
Item type	Adapter-elbow
Product material	Brass
Thread sealant	No
Thread size 2	1/2-20 UNF
Tube outside diameter 1 IN	0.220
Tube outside diameter 1 MM	5.6
Tube outside diameter 2 IN	0.220
Tube outside diameter 2 MM	5.6
Working pressure bar	138.0
Working pressure psi	2000
Working temp max C	204
Working temp max F	400
Working temp min C	-54
Working temp min F	-65
