Danfoss 54X10

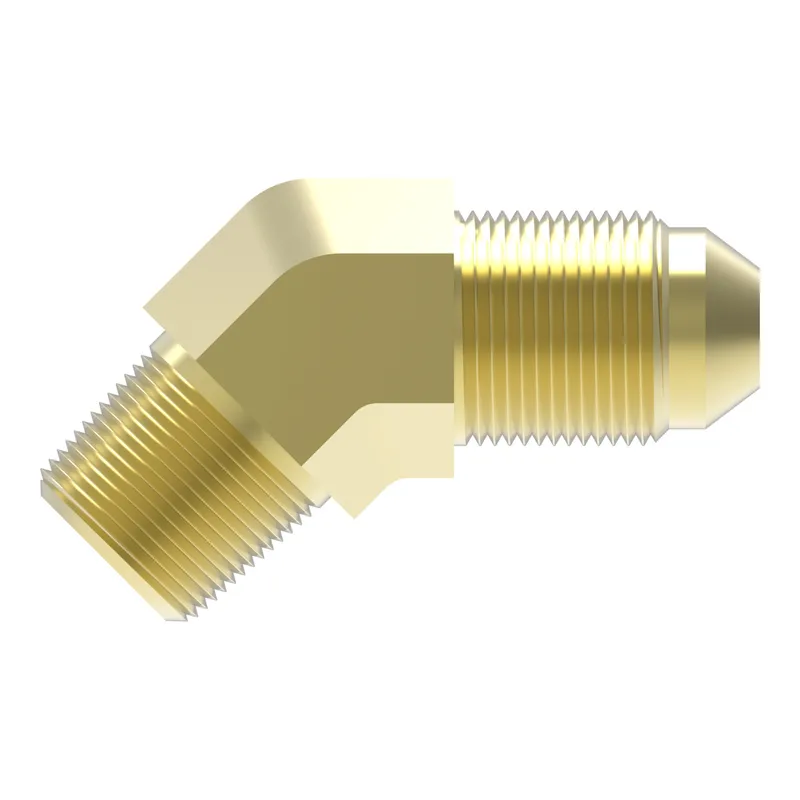

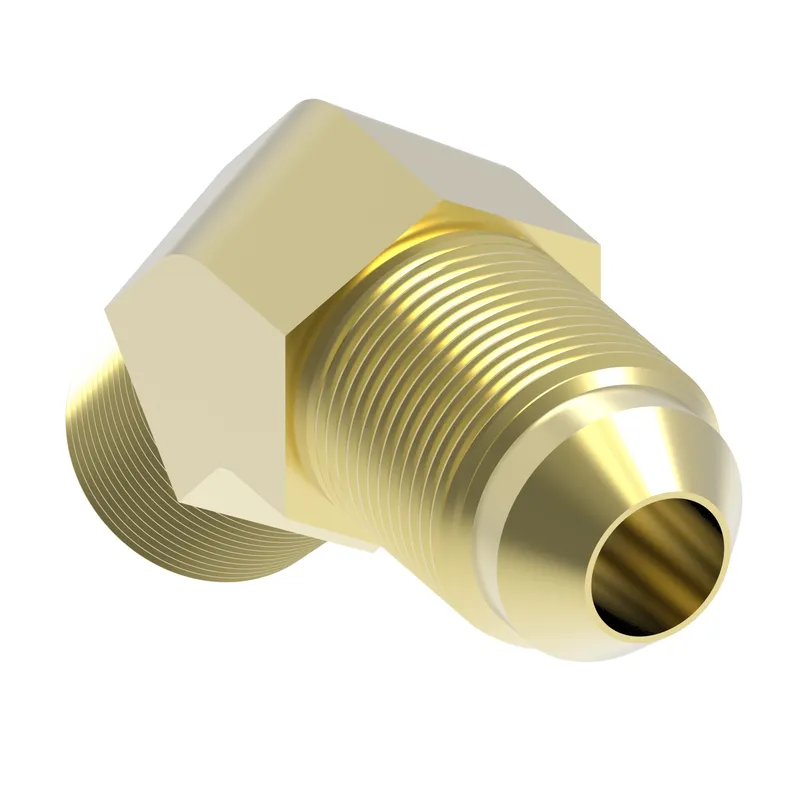

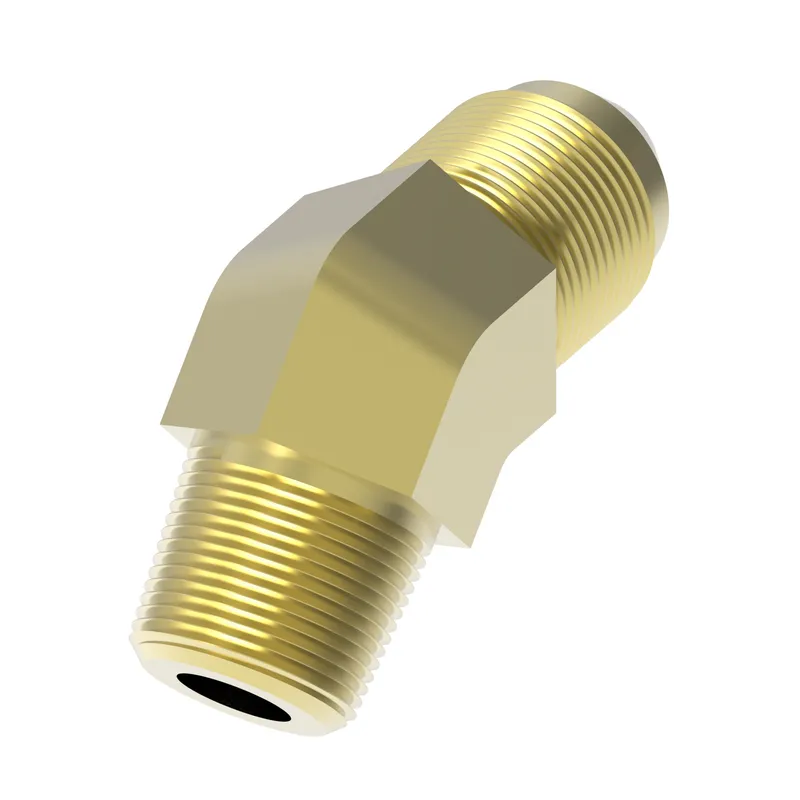

ADPT BRASS 45EL -10 M SAE45 X -8 MP

MPN: 54X10
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 54X10?

Danfoss ADPT BRASS 45EL -10 M SAE45 X -8 MP, manufacturer part number 54X10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	725975746769
Angle shape	45 Degree
Brand	Danfoss
End Type 1	Male pipe (NPTF)
End Type 2	Male 37 degree
Hex size 1 IN	0.890
Hex size 1 MM	22.600
Item type	Adapter-elbow
Product material	Brass
Thread sealant	No
Thread size 2	7/8-14 UNF
Tube outside diameter 1 IN	0.560
Tube outside diameter 1 MM	14.2
Tube outside diameter 2 IN	0.500
Tube outside diameter 2 MM	12.7
Working pressure bar	138.0
Working pressure psi	2000
Working temp max C	204
Working temp max F	400
Working temp min C	-54
Working temp min F	-65
