MOTOR-FIXED DISPL, S1MF089, HHD543321BB1B3M3M00000B
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Fixed displacement axial piston motors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 5433-080 be shipped?
5433-080 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5433-080 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5433-080 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5433-080, subject to availability and destination.

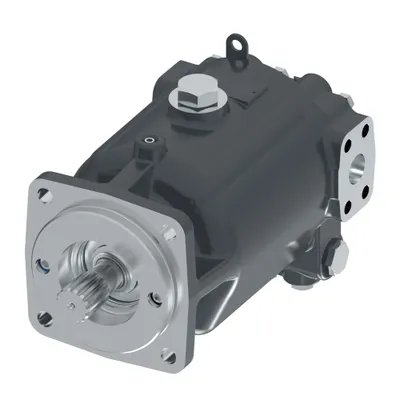

Danfoss MOTOR-FIXED DISPL, S1MF089, HHD543321BB1B3M3M00000B, manufacturer part number 5433-080. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Brand | Danfoss |
| CPRV setting | CPRV, 160 psi (11 bar) |
| CPRV type | Standard charge pressure relief valve |
| Design code | Design code B |
| Design type | Fixed clearance with lip seal (33/39/46/54/64 only) |
| Displacement | 5.439 cid (89.13 cc) |
| End cover and comp valve block | Valve block with shuttle valve, low-rate springs, charge pressure relief valve, and high pressure relief valves |
| Flow rate gpm | 87.6 |
| Flow rate lpm | 331.6 |
| High pres relief valve port A | Standard |
| High pres relief valve port B | Standard |
| HPRV setting port A | HPRV port A, 6000 psi (413.7 bar) |
| HPRV setting port B | HPRV port B, 6000 psi (413.7 bar) |
| Identification | Standard |
| Main ports | 1.00 code 62 opposite side ports |
| Maximum output speed | 3720 |
| Maximum temperature C | 82.20 |
| Maximum temperature F | 180.00 |
| Model Code 1 | HHD543321BB1B3M3M00000B |
| Mounting Flange | 4-BOLT-C |
| Output shaft | 21 tooth 16/32 pitch spline (33/39/46/54/64 only) |
| Output torque lbf-in2 | 5193.9 |
| Output torque Nm | 586.8 |
| Paint | Standard, primer blue |
| Product height in | 7.880 |
| Product height mm | 200.152 |
| Product length in | 15.690 |
| Product length mm | 398.526 |
| Product Series | Heavy duty hydrostatic fixed displacement motor |
| Product type | Fixed displacement motor |
| Product width in | 7.860 |
| Product width mm | 199.644 |
| Special features | No special features |
| Speed sensor | No speed sensor |
| Working pressure bar | 414 |
| Working pressure psi | 6000 |
