What is the Danfoss 525040?

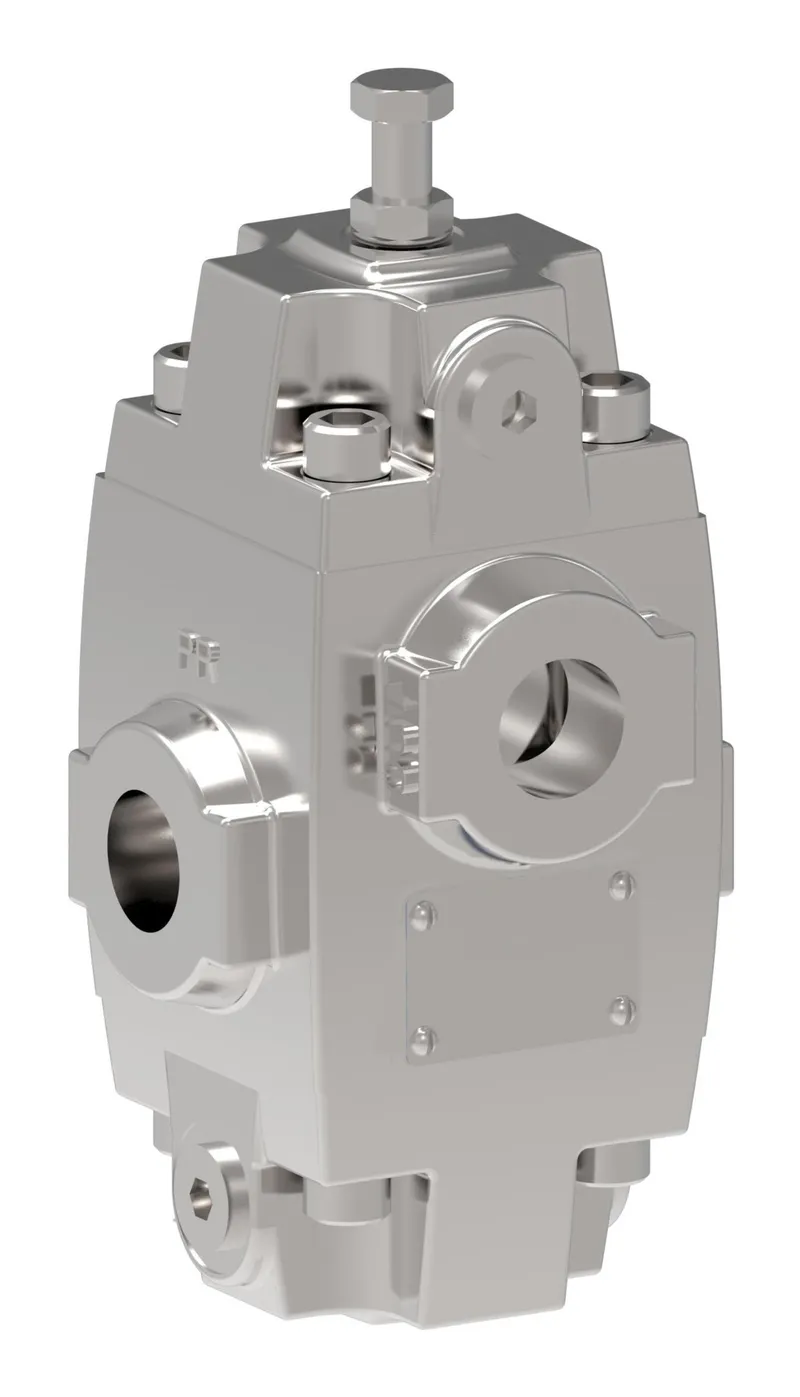

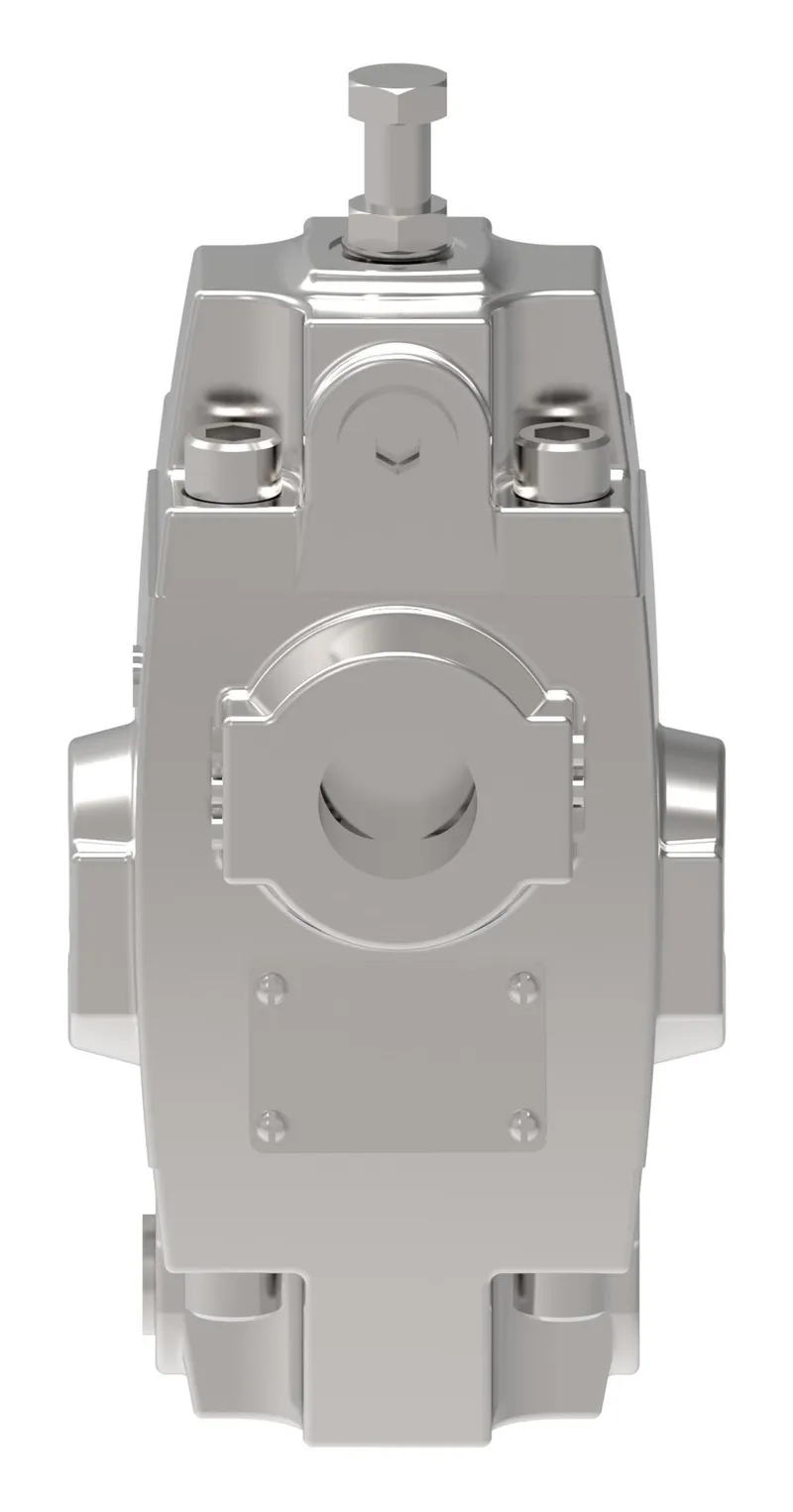

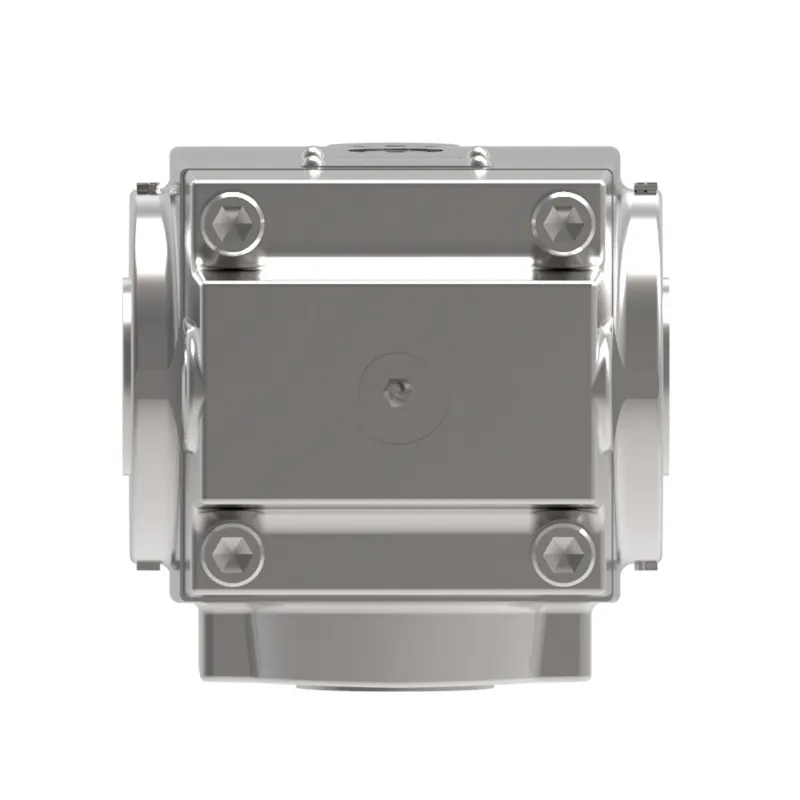

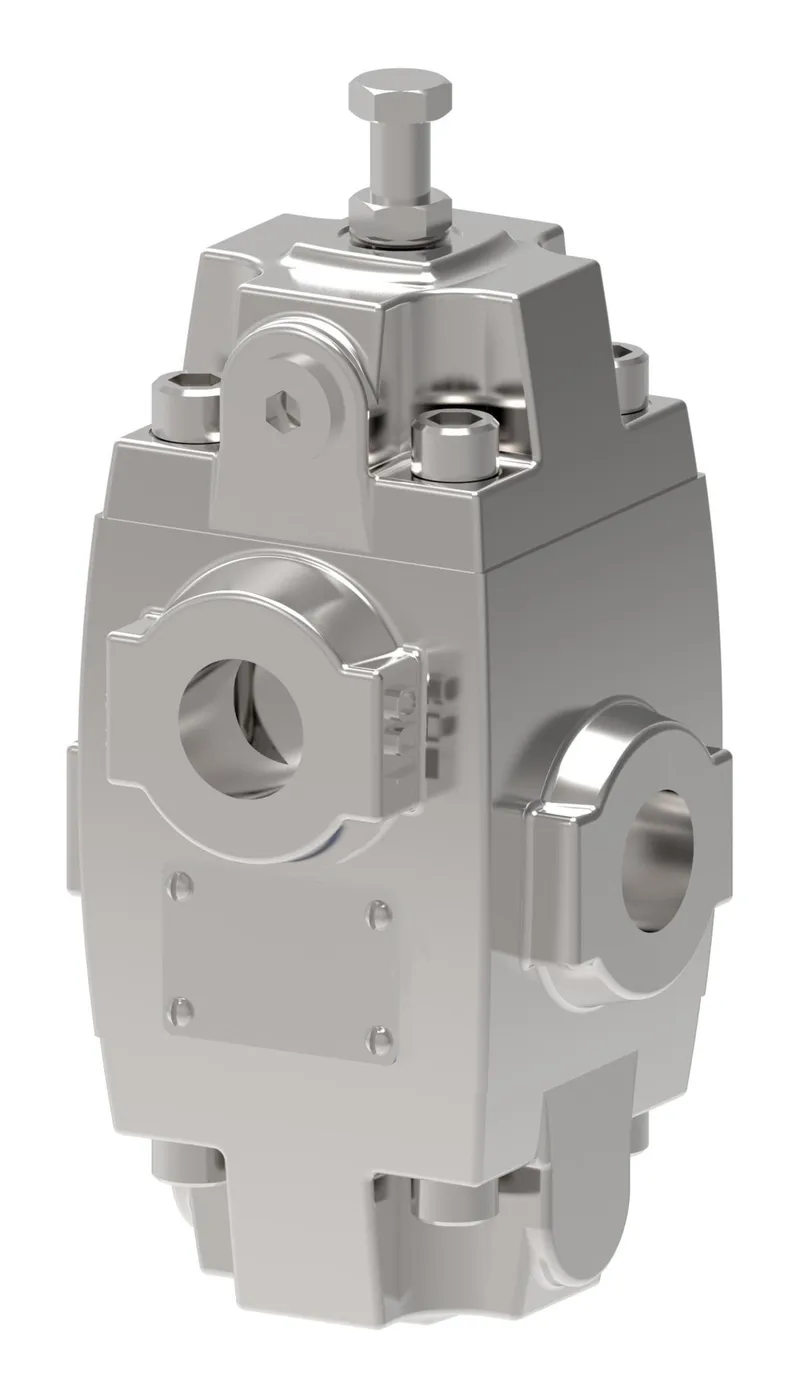

Danfoss XCS 03 2F 30, XCS032F30, manufacturer part number 525040. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pilot operated
Adjustment range bar	140
Adjustment range PSI	2000
Adjustment type	Screw with locknut
Brand	Vickers by Danfoss
Check valve	Yes
Design Series	30 Series
Electrical connection	None
Flow rate lpm	53.0
Flow rate USGPM	14.0
Fluid Cleanliness	19/17/14 Micron
Fluid compatibility	Petroleum oils
Gauge port thread	1/4 NPTF
Hi-vent spring	No
Indicator Light	No
Maximum pressure BAR	197
Maximum pressure PSI	2850
Model Code 1	XCS032F30
Performance	Standard
Product height in	5.600
Product height mm	142.240
Product length in	6.200
Product length mm	157.480
Product width in	4.200
Product width mm	106.68
Seal material	Nitrile
Size	Size 03
Special feature	None
Stage	Two stage
Valve Mount Type	.750-16 UNF-2B thread mount
Valve type	Pressure reducing valve
Working temperature max C	70
Working temperature max F	158
Working temperature min C	-20
Working temperature min F	-4
