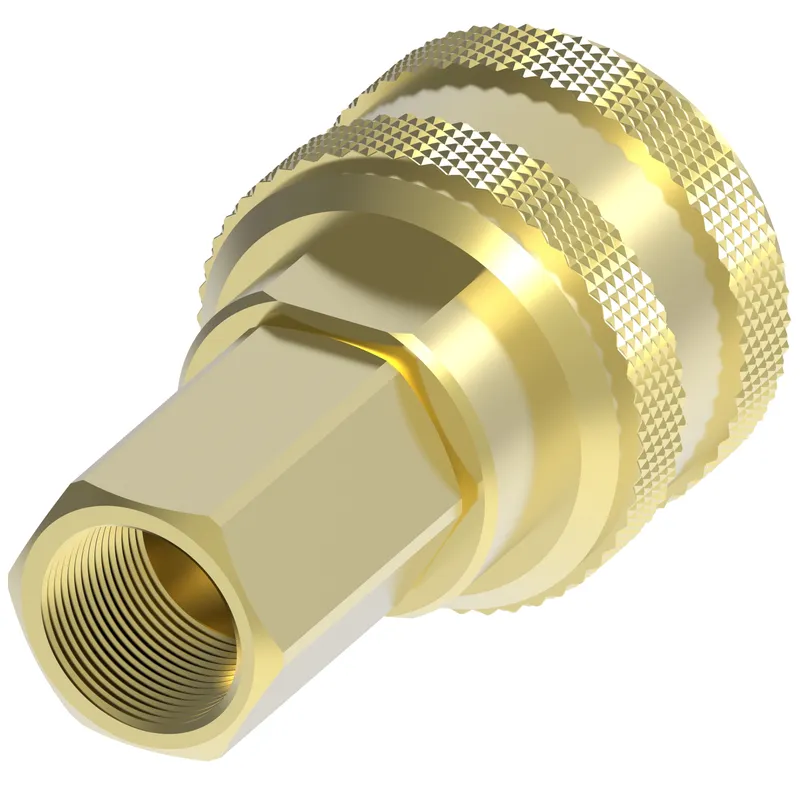

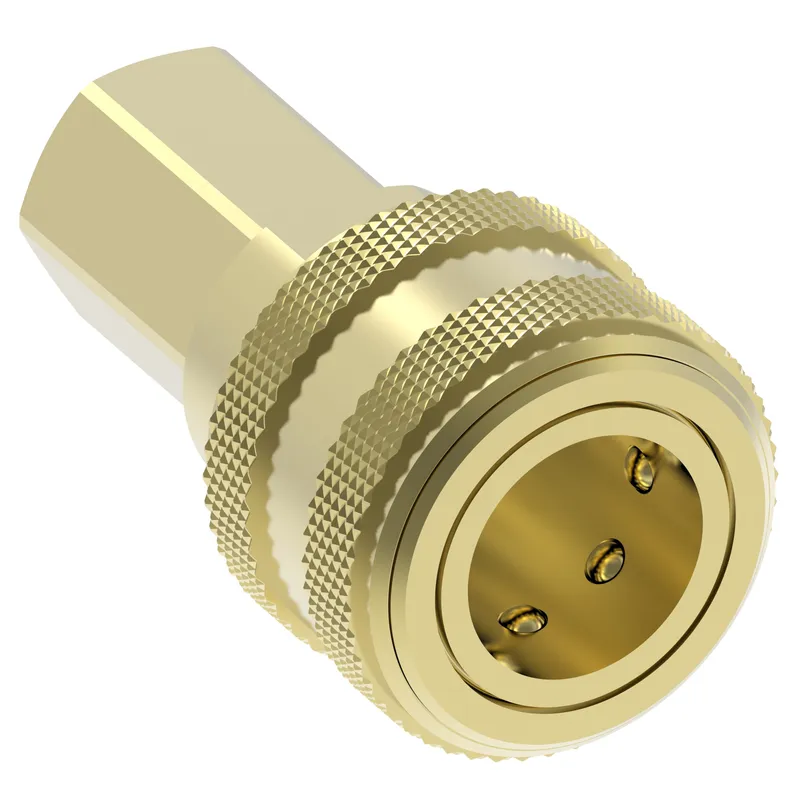

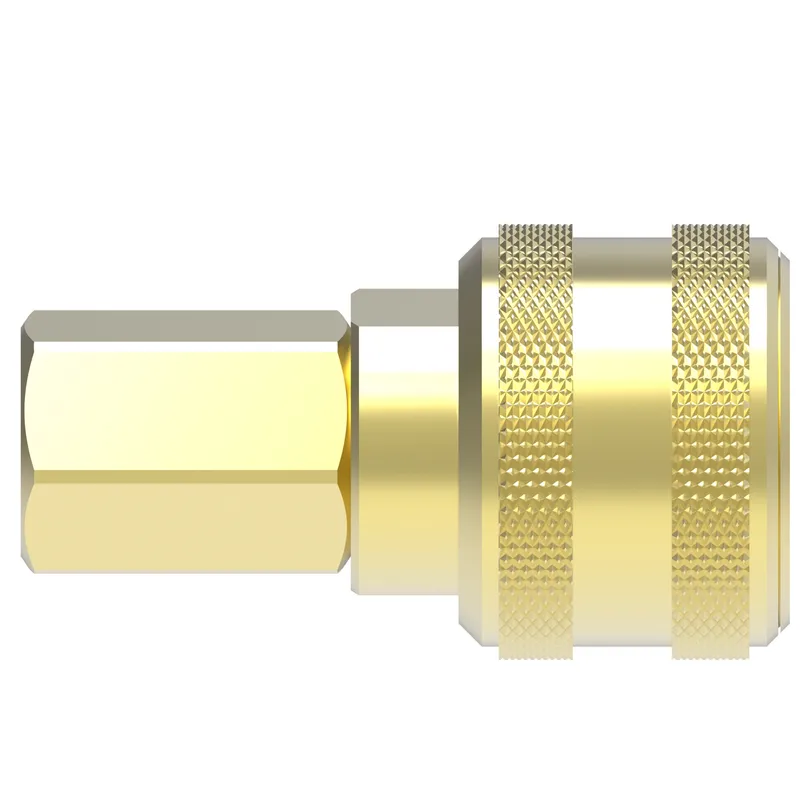

SOCKET

Name: SOCKET
Brand: Danfoss (Drives)
SKU: 5200BVSL192

MPN: 5200BVSL192 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Danfoss Hansen® quick disconnect couplings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 5200BVSL192 be shipped?

5200BVSL192 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5200BVSL192 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5200BVSL192 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5200BVSL192, subject to availability and destination.

Danfoss SOCKET, manufacturer part number 5200BVSL192. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146166746
Angle shape	Straight
Body size	1/2
Brand	Danfoss
Burst pressure min bar	138
Burst pressure min psi	2000
Connection style	Manual connect
End size 1	-8
Flow rate GPM	538.91
Flow rate LPM	2040.00
Hex size 1 IN	1.000
Hex size 1 MM	25.400
Item type	Female half
Product material	Brass
Safety locking mechanism	Sleeve lock
Seal material	Ethylene propylene (EPDM)
Sub brand	Hansen
Working pressure max psi	500
Working pressure max BAR	34
Working temperature max C	149
Working temperature max F	300
Working temperature min C	-54
Working temperature min F	-65
