Danfoss 5110-10B

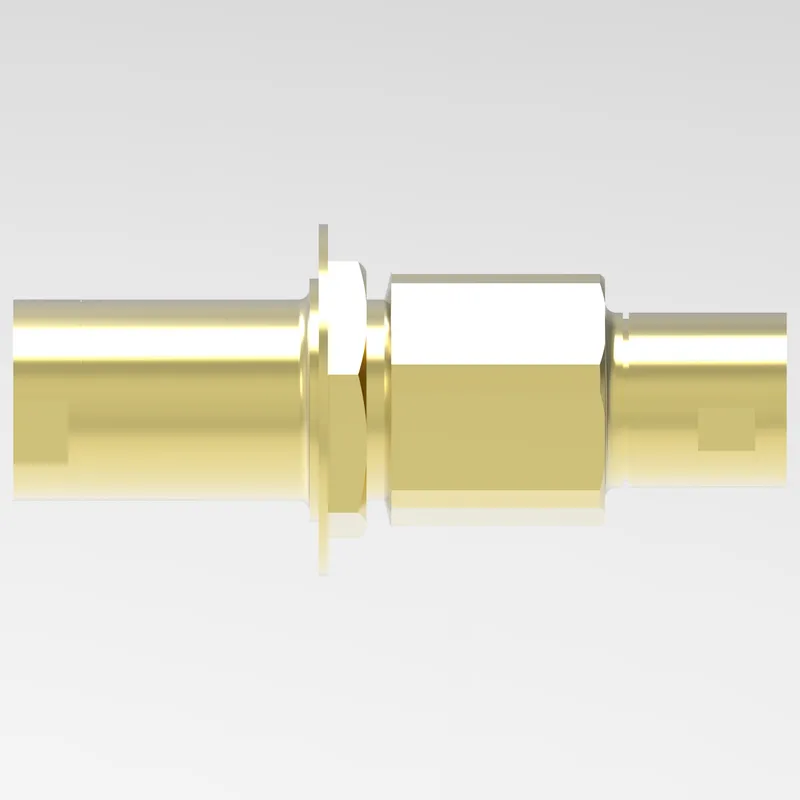

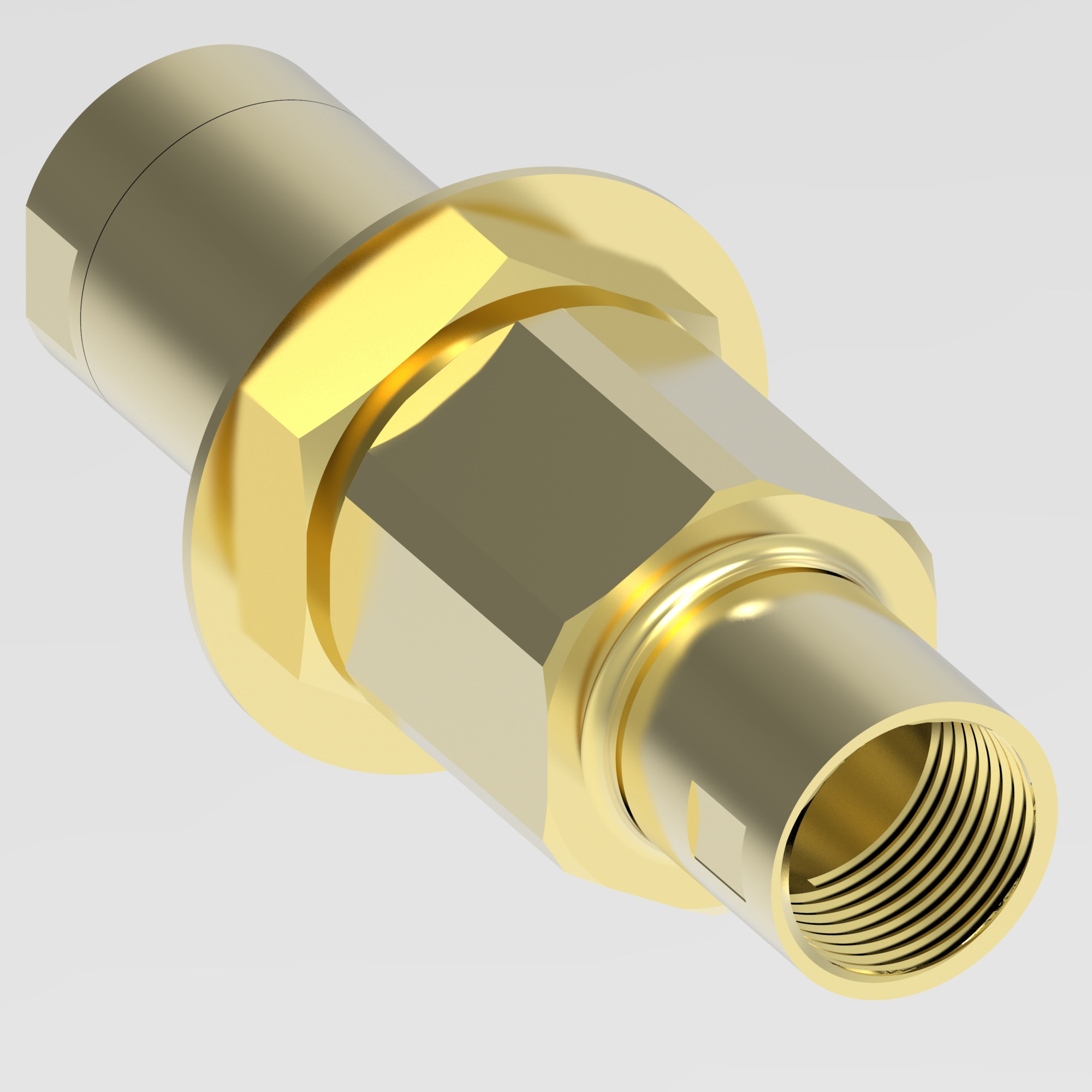

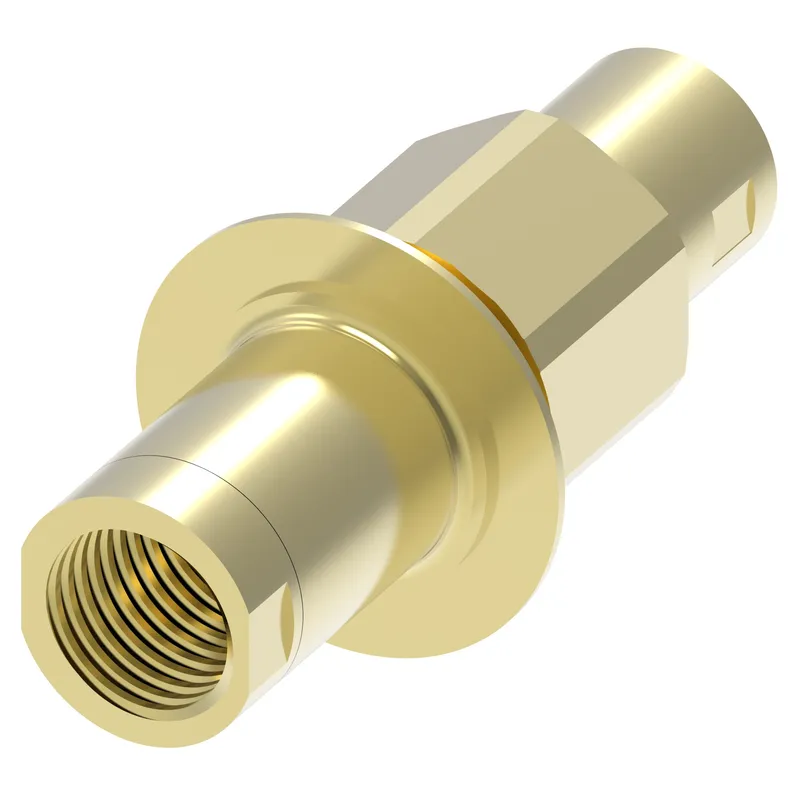

Cplng, 5100 SERIES COMPLETE, BRASS

MPN: 5110-10B
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 5110-10B?

Danfoss Cplng, 5100 SERIES COMPLETE, BRASS, manufacturer part number 5110-10B. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146036025
Air inclusion max cc	0.14
Air inclusion max in3	0.01
Angle shape	Straight
Body size	5/8
Brand	Danfoss
Connection style	Manual connect
End size 1	-8
End size 2	-8
End type 1	Female pipe (NPTF)
End type 2	Female pipe (NPTF)
Flow rate GPM	18.00
Flow rate LPM	68.14
Fluid compatibility	Oil
Fluid loss cc	0.10000
Fluid loss in3	0.00600
Hex size 1 IN	1.980
Hex size 1 MM	50.292
Item type	Complete
Latch type	Screw to connect
Product material	Brass
Seal material	Nitrile (NBR)
Sub brand	Hansen
Valve type	2 way
Working pressure max psi	3000
Working pressure max BAR	207
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
