Danfoss 5100-48-16B

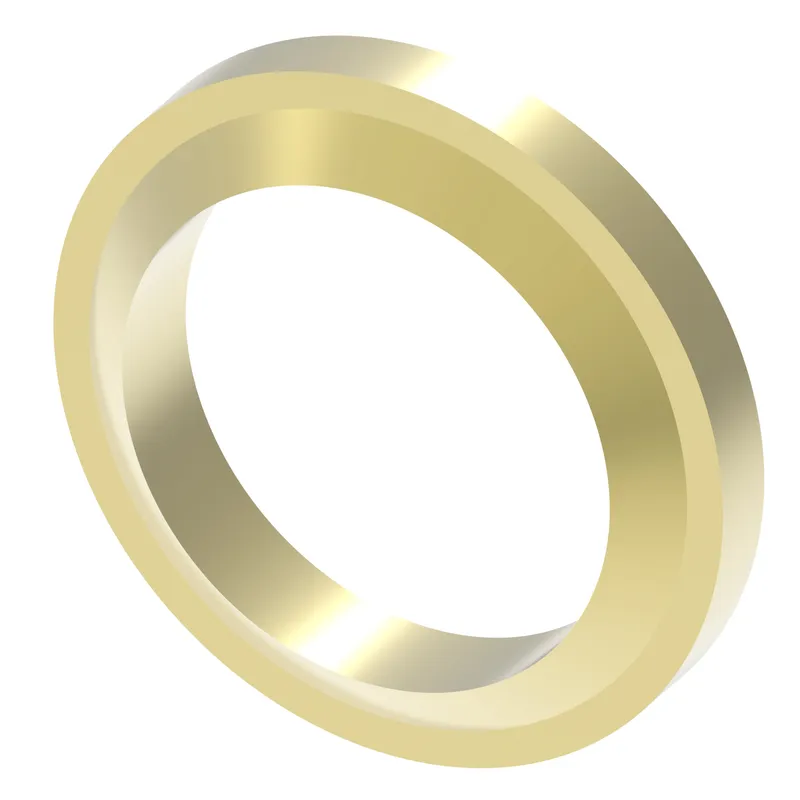

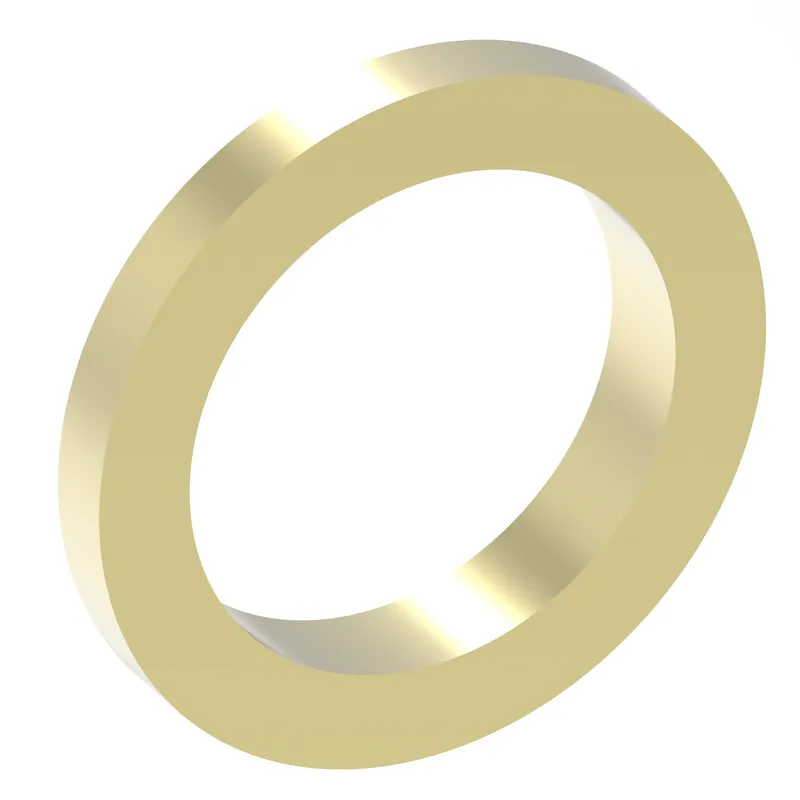

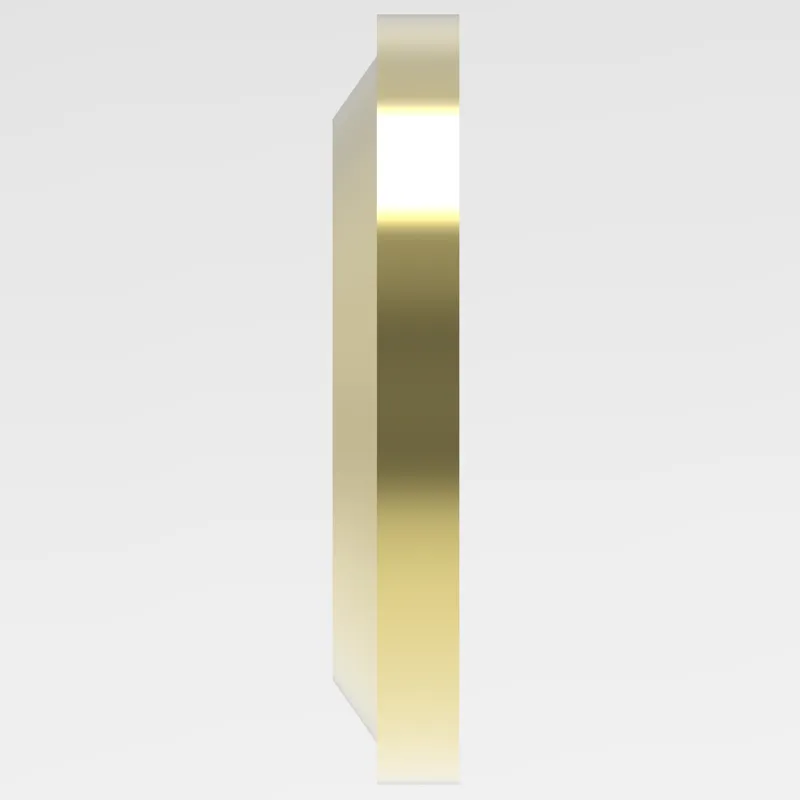

Cplng, FD51 component, retainer

MPN: 5100-48-16B
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 5100-48-16B?

Danfoss Cplng, FD51 component, retainer, manufacturer part number 5100-48-16B. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Air inclusion max cc	0.50
Air inclusion max in3	0.03
Angle shape	Straight
Body size	1"
Brand	Danfoss
Connection style	Manual connect
Flow rate GPM	40.00
Flow rate LPM	151.42
Fluid compatibility	Oil
Fluid loss cc	0.35000
Fluid loss in3	0.02100
Item type	Component
Latch type	Screw to connect
Product material	Brass
Seal material	Nitrile (NBR)
Sub brand	Hansen
Valve type	2 way
Working pressure max psi	3000
Working pressure max BAR	207
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40

5100-48-16B: frequently asked questions

When can 5100-48-16B be shipped?

5100-48-16B is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5100-48-16B in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5100-48-16B and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5100-48-16B, subject to availability and destination.
