Danfoss 50X6

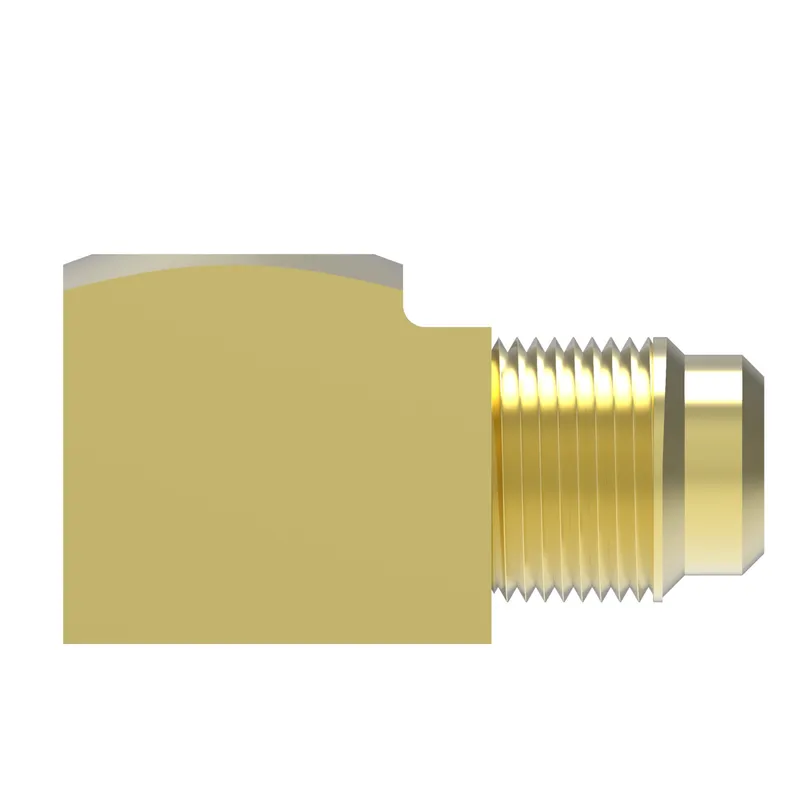

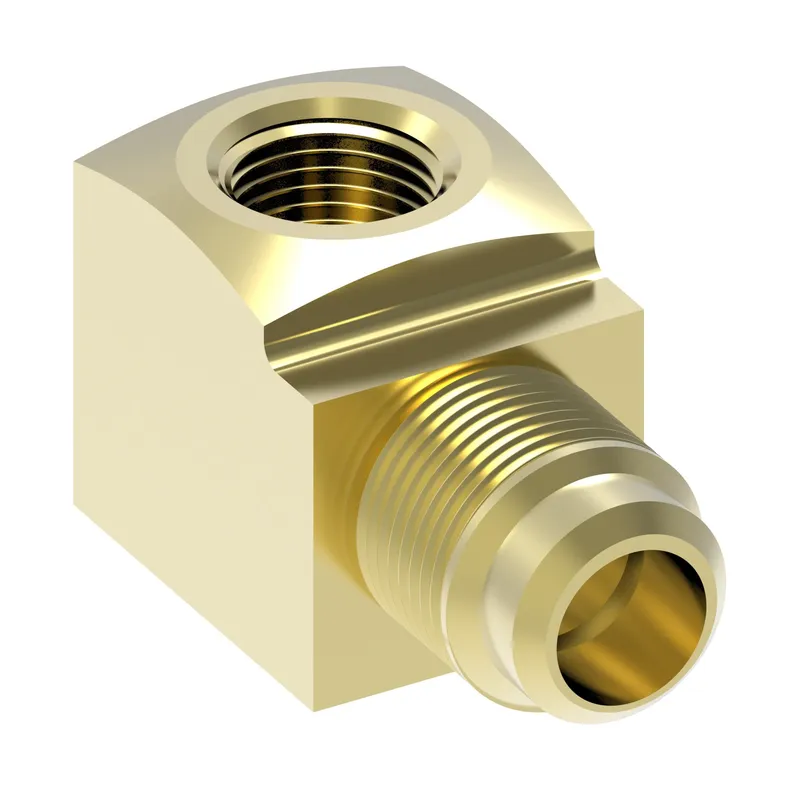

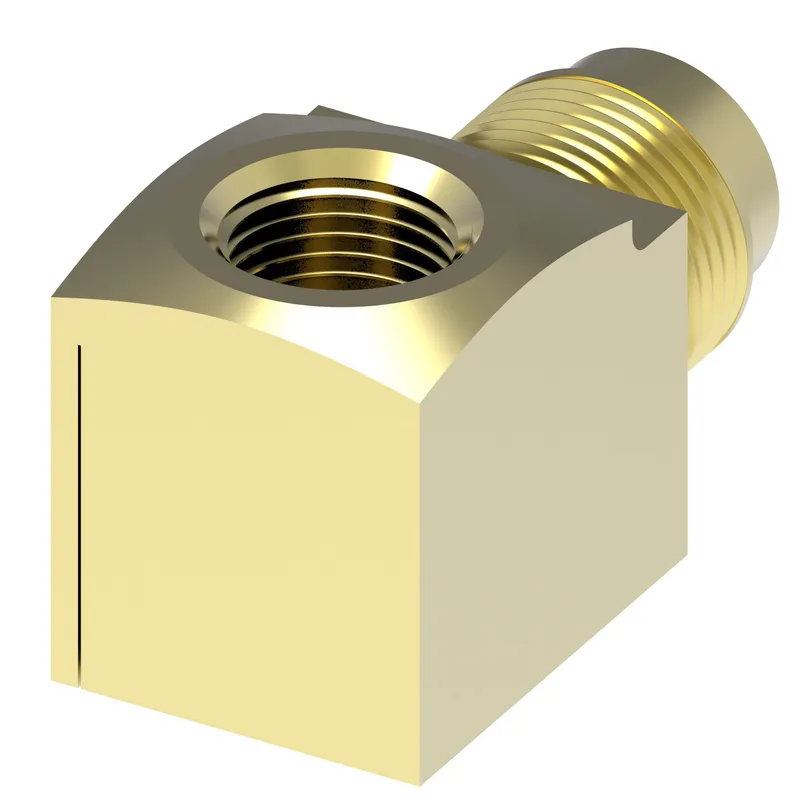

Adapter SAE45 Brass 90 D 3/8 T x 1/4 FP

MPN: 50X6
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 50X6?

Danfoss Adapter SAE45 Brass 90 D 3/8 T x 1/4 FP, manufacturer part number 50X6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	725975703465
Angle shape	90 Degree
Brand	Danfoss
Drop dimension IN	0.690
Drop dimension MM	17.50
End Type 1	Female pipe (NPTF)
End Type 2	Male 37 degree
Hex size 1 IN	0.710
Hex size 1 MM	18.000
Item type	Adapter-elbow
Product material	Brass
Thread sealant	No
Thread size 2	5/8-18 UNF
Tube outside diameter 1 IN	0.420
Tube outside diameter 1 MM	10.7
Tube outside diameter 2 IN	0.310
Tube outside diameter 2 MM	7.9
Working pressure bar	138.0
Working pressure psi	2000
Working temp max C	204
Working temp max F	400
Working temp min C	-54
Working temp min F	-65
