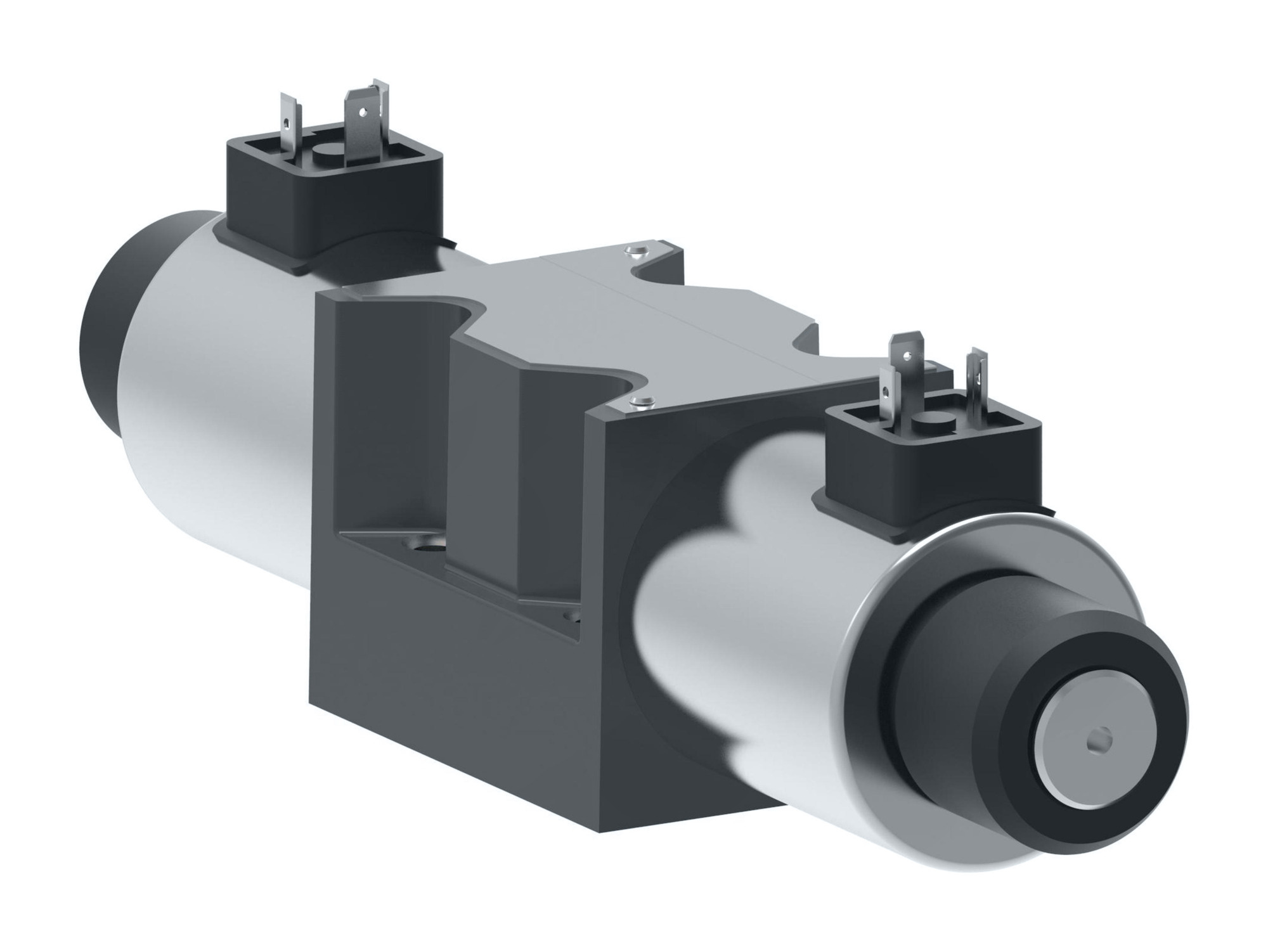

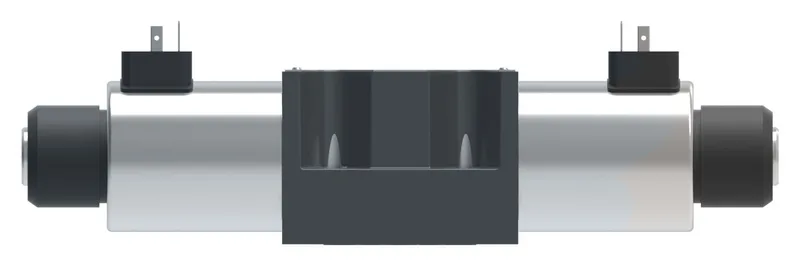

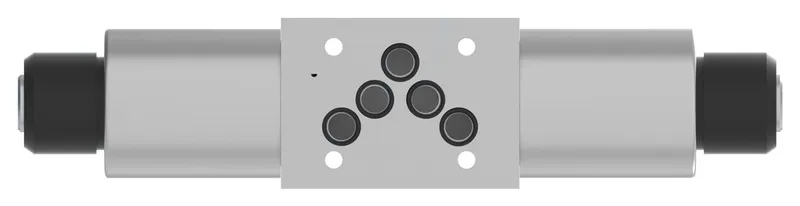

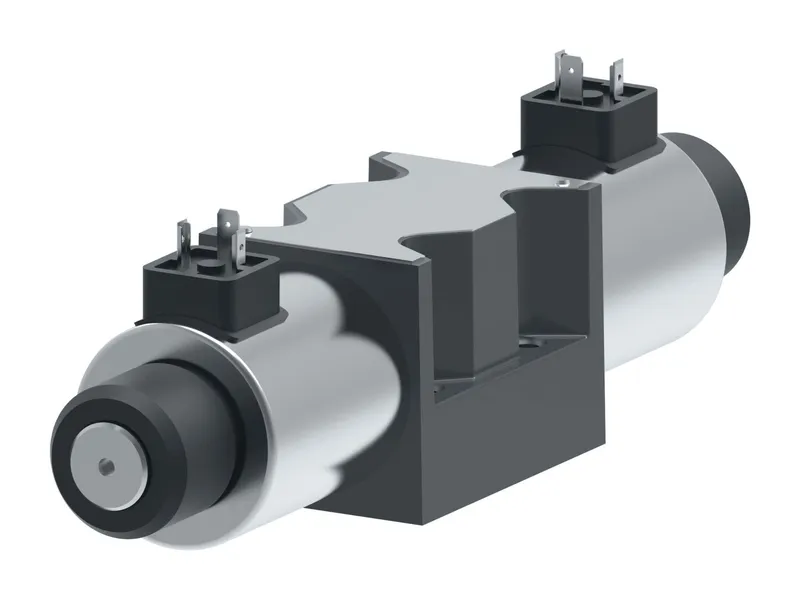

Danfoss 507177

F13 DG4V 5 6CJ M U H6 20, F13DG4V56CJMUH620

MPN: 507177
Category: Manifold directional control valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 507177?

Danfoss F13 DG4V 5 6CJ M U H6 20, F13DG4V56CJMUH620, manufacturer part number 507177. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid operated
Brand	Vickers by Danfoss
Coil Rating	24 VDC
Design Series	20 Series
Electrical Connection	ISO 4400 (Din 43650) connector
Energ Time	120-45 ms
Flow rate upto GPM	32.0
Flow rate upto LPM	120.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Water glycol
Indicator Light	No
Interface	ISO4401-05/NFPA D05
Manual override	Plain
Model Code 1	F13DG4V56CJMUH620
Performance	High performance
Power Consumption	38 watt
Pressure rating BAR	315
Pressure rating PSI	4500
Product height in	4.450
Product length in	12.280
Product length mm	311.912
Product width in	2.760
Product width mm	70.104
Seal type	WATER GLYCOL
Solenoid Energising ID	Standard as per ANSI B93 9
Special features	None
Spool Position Monitor	No
Spool Type	Spool 6
Spring Arrangement	Spring centred
Stage	Single stage
Surge Suppr Damper	No
Tank port rating BAR	160
Tank port rating PSI	2300
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
