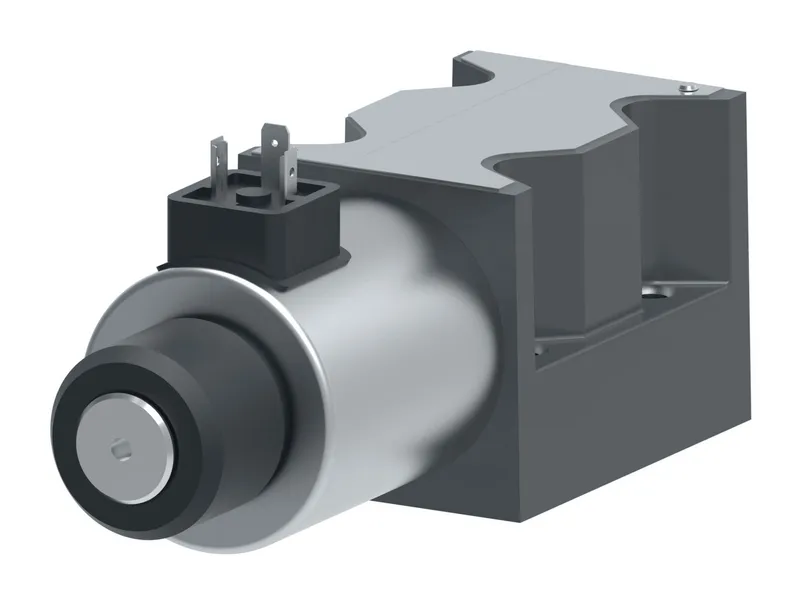

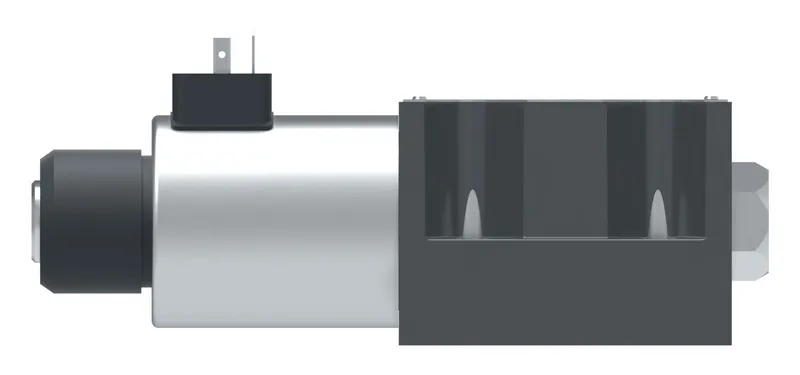

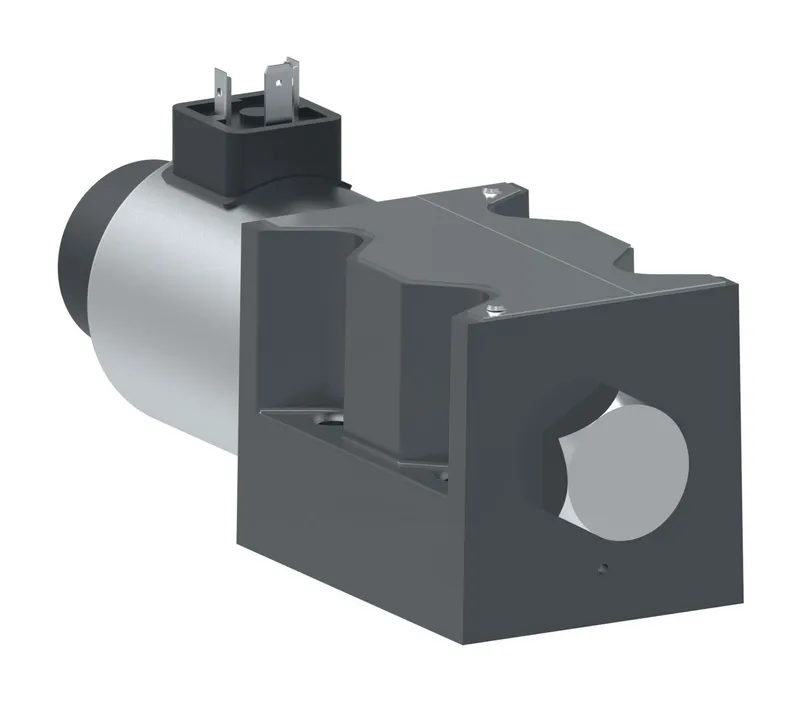

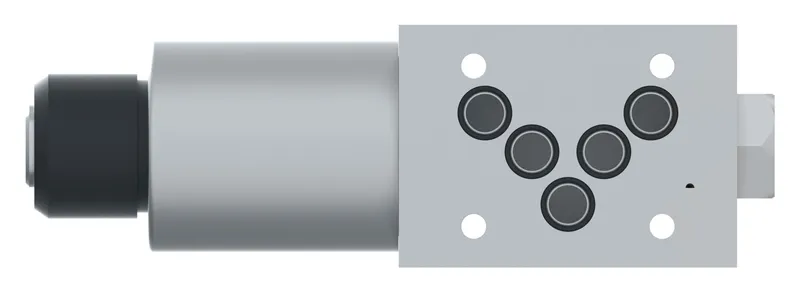

Danfoss 506819

DG4V 5 8BLJ VM U C6 20, DG4V58BLJVMUC620

MPN: 506819
Category: Manifold directional control valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 506819?

Danfoss DG4V 5 8BLJ VM U C6 20, DG4V58BLJVMUC620, manufacturer part number 506819. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid operated
Brand	Vickers by Danfoss
Coil Rating	220 VAC 50Hz
Design Series	20 Series
Electrical Connection	ISO 4400 (Din 43650) connector
Energ Time	30-40 ms
Flow rate upto GPM	32.0
Flow rate upto LPM	120.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Indicator Light	No
Interface	ISO4401-05/NFPA D05
Manual override	Plain
Model Code 1	DG4V58BLJVMUC620
Performance	High performance
Power Consumption	105 VA
Pressure rating BAR	315
Pressure rating PSI	4500
Product height in	4.590
Product length in	8.460
Product length mm	214.884
Product width in	2.800
Product width mm	71.12
Seal type	WATER GLYCOL
Solenoid Energising ID	Solenoid B at port B end
Special features	None
Spool Position Monitor	No
Spool Type	Spool 8
Spring Arrangement	Spring offset end to centre LH
Stage	Single stage
Surge Suppr Damper	No
Tank port rating BAR	120
Tank port rating PSI	1750
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	50
Working temp max F	122
Working temp min C	-20
Working temp min F	-4

506819: frequently asked questions

When can 506819 be shipped?

506819 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 506819 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 506819 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 506819, subject to availability and destination.
