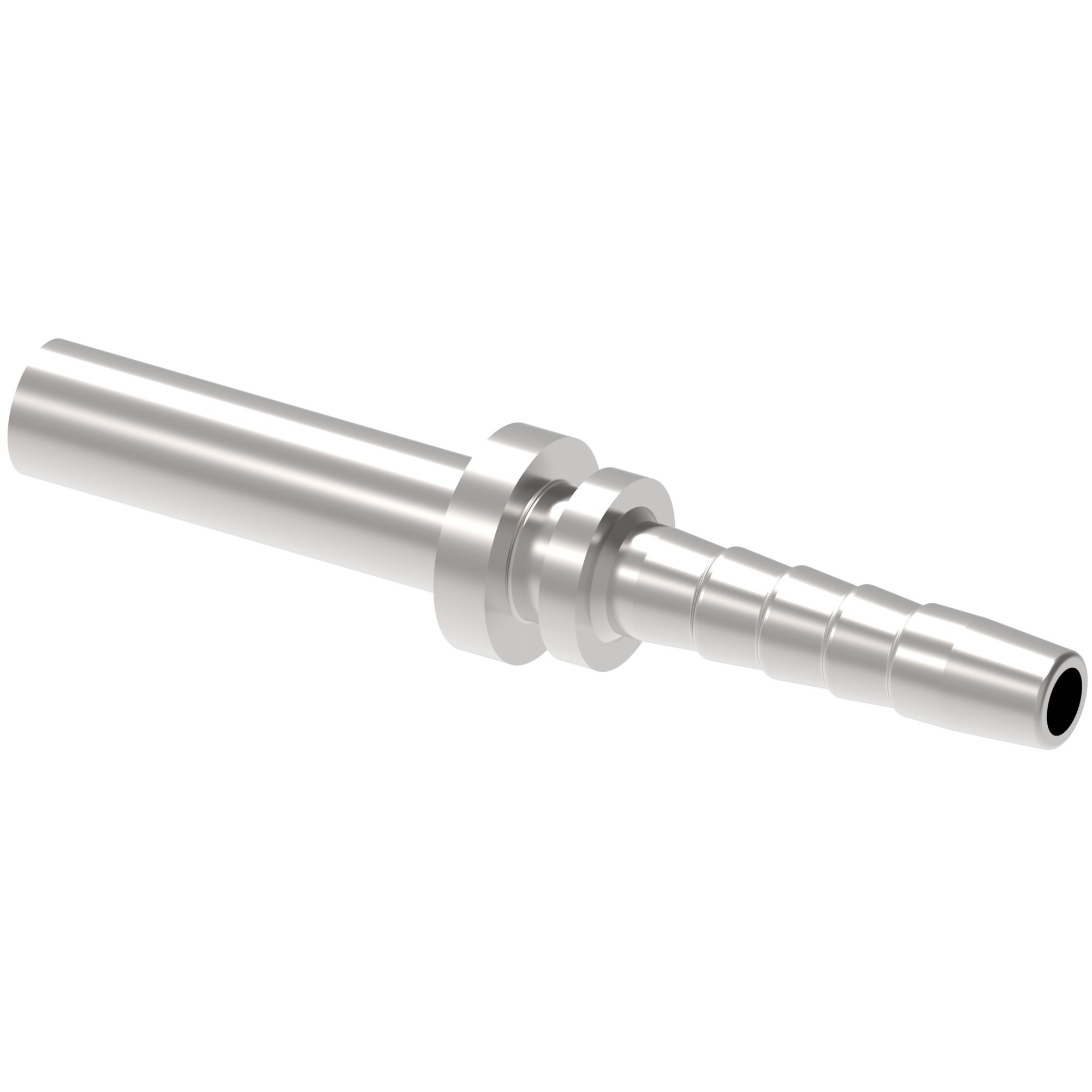

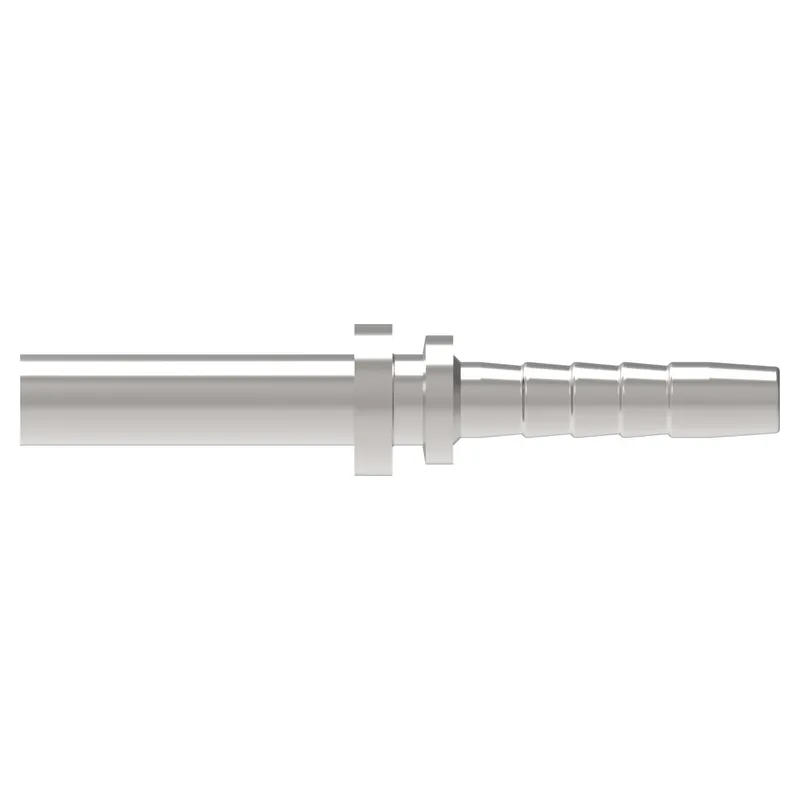

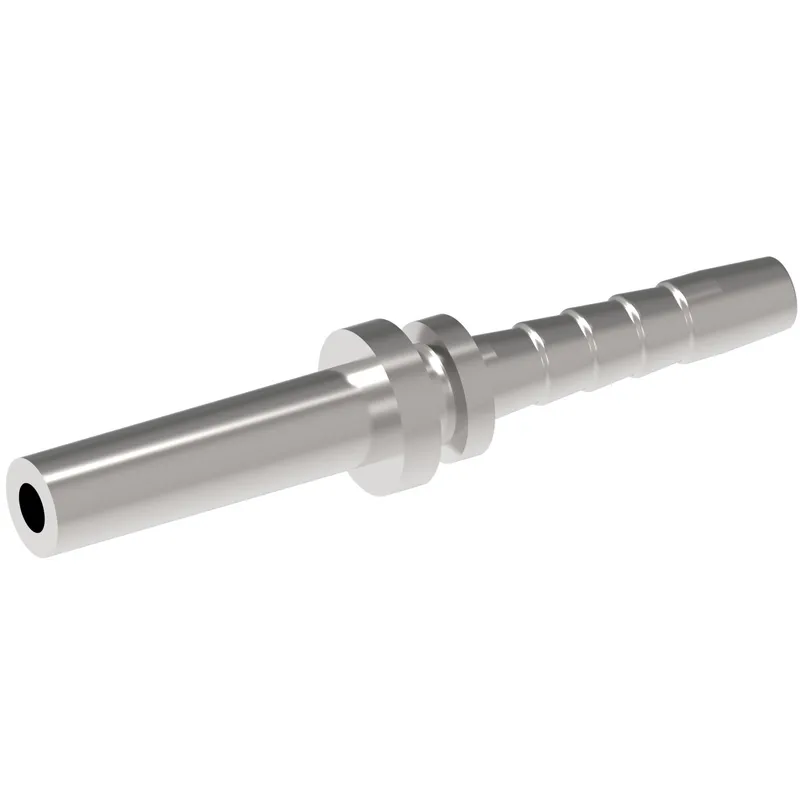

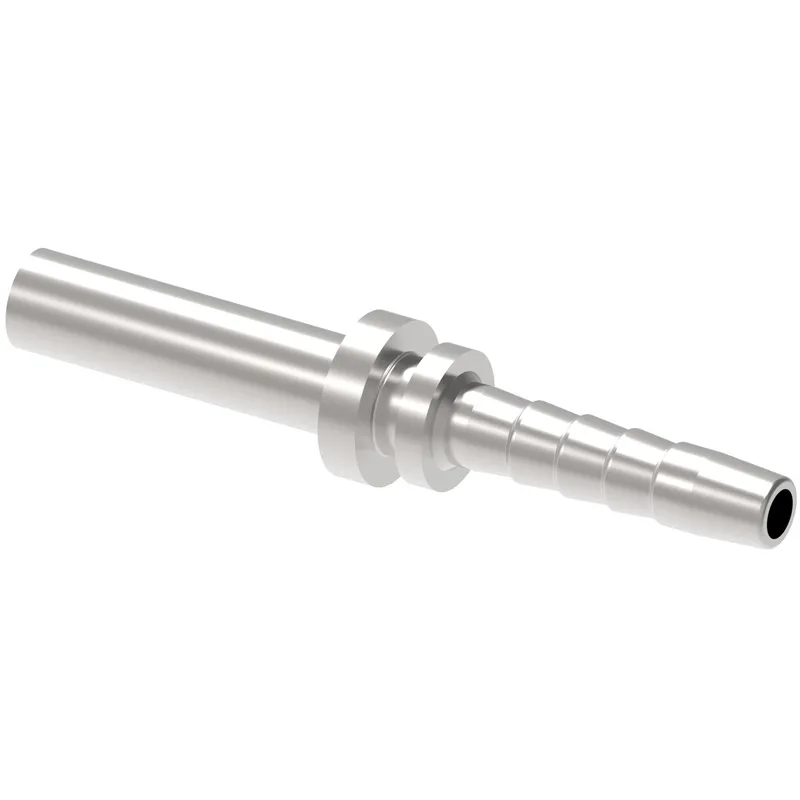

Danfoss 50011-16-08Z

HOSE FTG, 2P/08, STPIPE/16, CS, STR

MPN
50011-16-08Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 50011-16-08Z?

Danfoss HOSE FTG, 2P/08, STPIPE/16, CS, STR, manufacturer part number 50011-16-08Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.854
A dimension MM72.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Compatible hosesFC686
Construction StyleCrimp
End size 1-16
End Type 1Standpipe Metric
End Type 2Line/hose/tube
Finish platingZinc plating
Hose cut off factor IN1.614
Hose cut off factor MM41.000
Hose size-8
Inside diameter IN0.393
Inside diameter MM10.000
Product height in0.767
Product height mm19.500
Product length in2.854
Product length mm72.500
Product materialCarbon steel
Product width in0.767
Product width mm19.5
Thread sealantNo
Working pressure max BAR250
Working pressure max PSI3650
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

50011-16-08Z: frequently asked questions

When can 50011-16-08Z be shipped?

50011-16-08Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 50011-16-08Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 50011-16-08Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 50011-16-08Z, subject to availability and destination.
