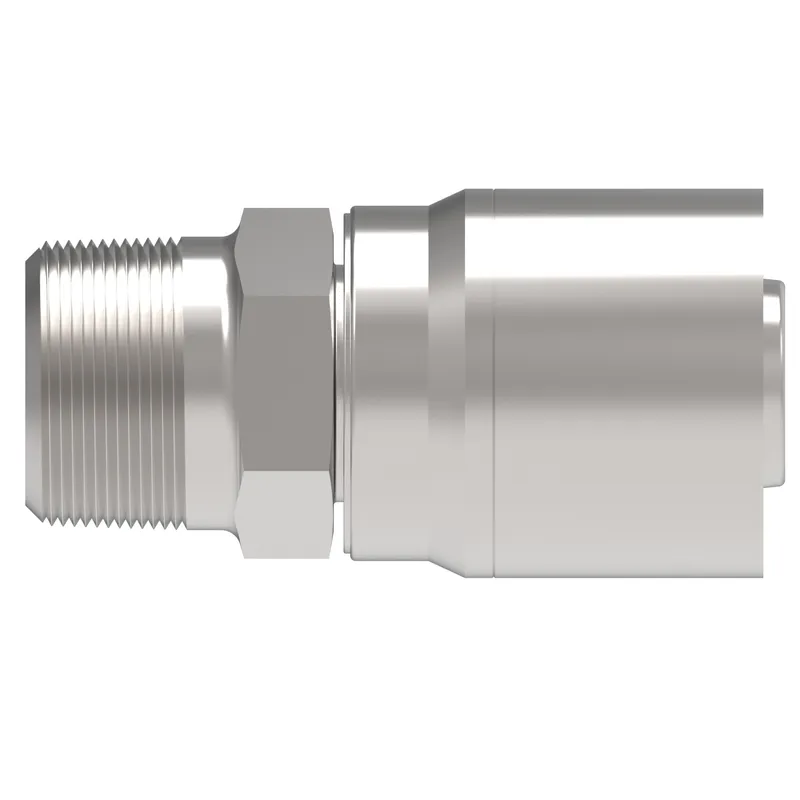

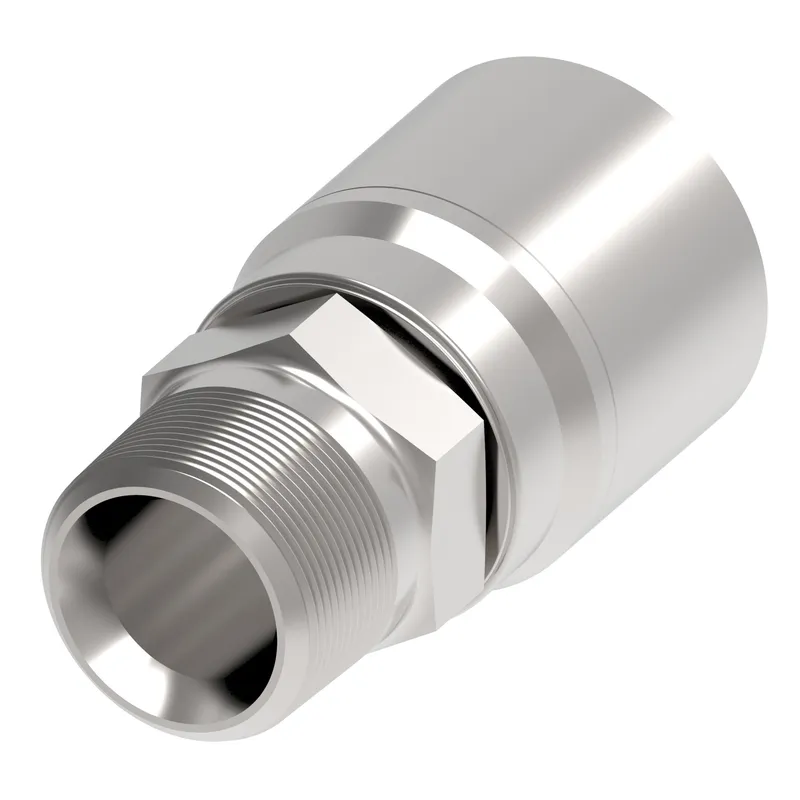

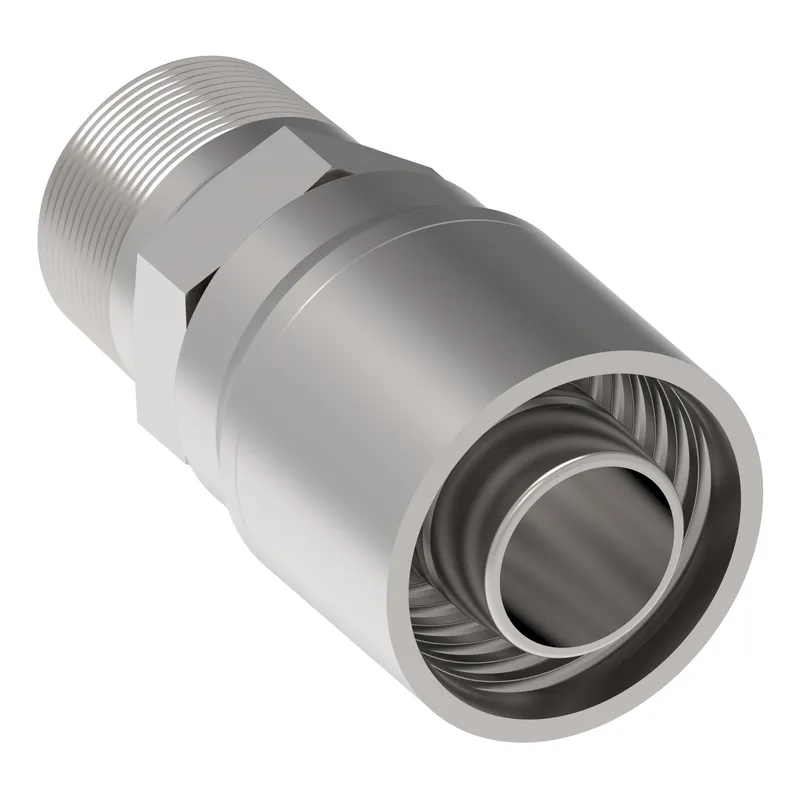

HOSE FTG, 4T/08, NPTF-M/08, CS, STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Thermoplastic hydraulic hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 4TA8MP8 be shipped?
4TA8MP8 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 4TA8MP8 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 4TA8MP8 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4TA8MP8, subject to availability and destination.
Danfoss HOSE FTG, 4T/08, NPTF-M/08, CS, STR, manufacturer part number 4TA8MP8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 810903035562 |
| A dimension IN | 2.900 |
| A dimension MM | 73.700 |
| Angle shape | Straight |
| Compatible hose ID IN | 0.500 |
| Construction Style | Crimp |
| End size 1 | -8 |
| End type 1 | Male pipe (NPTF) |
| Finish plating | Dura-Kote |
| Hex size 2 IN | 0.866 |
| Hex size 2 MM | 22.000 |
| Hose cut off factor IN | 1.600 |
| Hose cut off factor MM | 40.600 |
| Inside diameter IN | 0.380 |
| Inside diameter MM | 9.600 |
| Product height in | 1.092 |
| Product height mm | 27.736 |
| Product length in | 2.900 |
| Product length mm | 73.660 |
| Product material | Carbon steel |
| Product width in | 1.092 |
| Product width mm | 27.736 mm |
| Thread sealant | Yes |
| Thread size 1 | 1/2-14 NPTF |
| Working pressure max BAR | 414 |
| Working pressure max PSI | 6000 |
